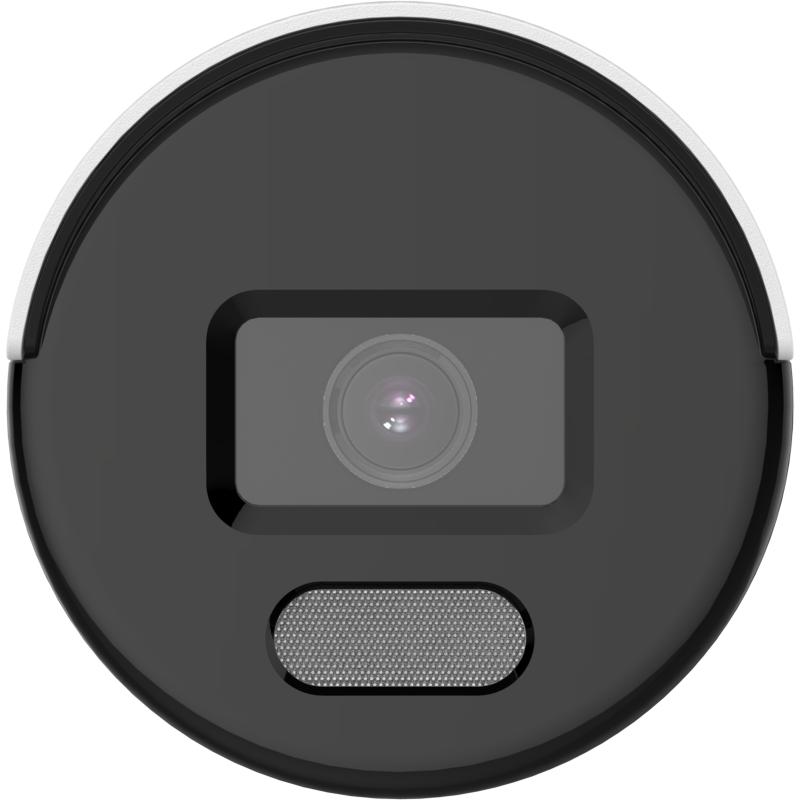

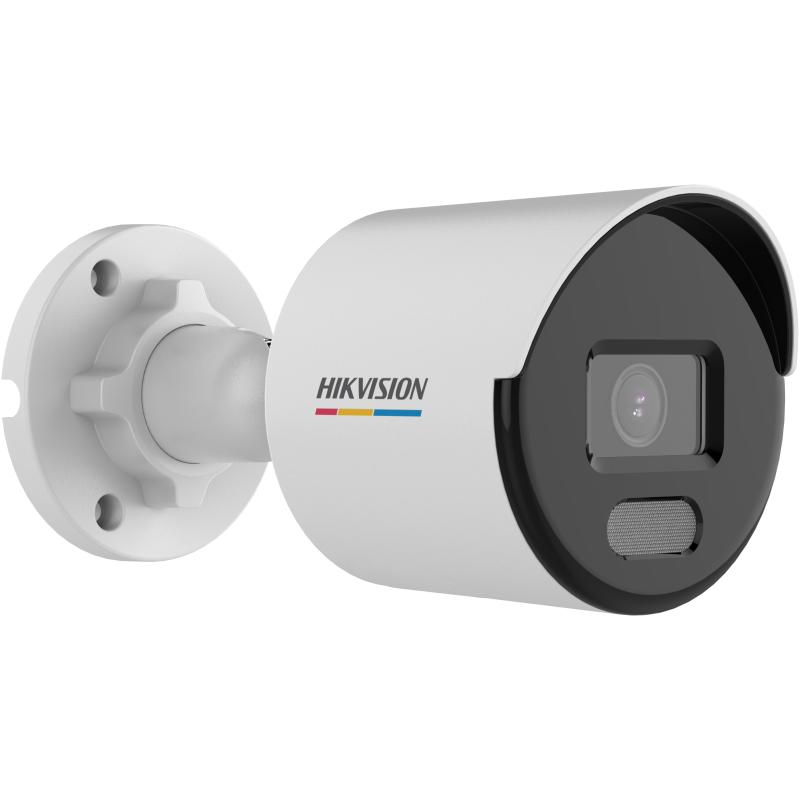

DS-2CD1047G2-L(UF)

4 MP ColorVu MD 2.0 Fixed Bullet Network Camera

High quality imaging with 4 MP resolution

24/7 colorful imaging

Support Human and Vehicle Detection

Water and dust resistant (IP67)

Clear imaging even with strong back lighting due to 120 dB WDR

Efficient H.265+ compression technology

Support on-board storage up to 256GB (SD card slot)(Optional)

Built-in microphone for real-time audio security(Optional)

specification

Camera
Image Sensor
1/3″ Progressive Scan CMOS
Max. Resolution
2560 × 1440
Min. Illumination
Color: 0.001 Lux @ (F1.0, AGC ON),0 Lux with light
Shutter Time
1/3 s to 1/100,000 s
Day & Night
24/7 color imaging
Angle Adjustment
Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°

Lens
Lens Type
Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV

2.8 mm, horizontal FOV: 96°, vertical FOV: 52°, diagonal FOV: 113°

4 mm, horizontal FOV: 75°, vertical FOV: 40°, diagonal FOV: 89°
Lens Mount
M12
Iris Type
Fixed
Aperture
F1.0
Depth of Field

2.8 mm: 2 m to ∞

4 mm: 2.7 m to ∞

DORI
DORI

2.8 mm, D: 64 m, O: 25 m, R: 12 m, I: 6 m

4 mm, D: 82 m, O: 32 m, R: 16 m, I: 8 m

Illuminator
Supplement Light Type
White Light
Supplement Light Range
Up to 30 m
Smart Supplement Light
Yes

Video
Main Stream

50 Hz:

20 fps (2560 × 1440)

25 fps (1920 × 1080, 1280 × 720)

60 Hz:

20 fps (2560 × 1440)

24 fps (1920 × 1080, 1280 × 720)
Sub-Stream

50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)
Video Compression

Main stream: H.265+/H.265/H.264+/H.264,

Sub-stream: H.265/H.264/MJPEG
Video Bit Rate
32 Kbps to 8 Mbps
H.264 Type
Baseline Profile,Main Profile,High Profile
H.265 Type
Main Profile
Bit Rate Control
CBR,VBR
Region of Interest (ROI)
1 fixed region(s) for main stream

Audio
Audio Type
-U: Mono sound
Environment Noise Filtering
-U: Yes
Audio Sampling Rate
-U: 8 kHz/16 kHz
Audio Compression
-U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Bit Rate
-U: 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)

Network
Protocols
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
Simultaneous Live View
Up to 6 channels
API
Open Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)),ISAPI,SDK
User/Host

Up to 32 users

3 user levels: administrator, operator, and user
Security
Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
Client
iVMS-4200,Hik-Connect
Web Browser

Plug-in required live view: IE 10, IE 11,

Local service: Chrome 57.0+, Firefox 52.0+

Wide Dynamic Range (WDR)
120 dB
SNR
≥ 52 dB
Day/Night Switch
Day,Night,Auto,Schedule
Image Enhancement
BLC,HLC,3D DNR
Image Settings
Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Privacy Mask
4 programmable polygon privacy masks

Interface
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage

Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
Built-in Microphone
-U: Yes
Reset Key
-F: Yes

Event
Basic Event
Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Linkage
Upload to FTP/memory card (-F), notify surveillance center, send email, trigger recording (-F), trigger capture

General
Power

12 VDC ± 25%, 0.4 A, max. 5 W,Ø5.5 mm coaxial power plug,

PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
Material
Aluminum alloy body
Dimension

Ø76.6 mm × 164.4 mm (Ø3 × 6.5″)”
Package Dimension
234 mm × 120 mm × 117 mm (9.2″ × 4.7″ × 4.6″)
Weight

-L: Approx. 410 g (0.9 lb.); -LUF: Approx. 430 g (0.9 lb.)
With Package Weight

-L: Approx. 630 g (1.4 lb.); -LUF: Approx. 650 g (1.4 lb.)
Storage Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language
English, Ukrainian
General Function
Heartbeat,anti-banding,mirror,password protection,password reset via email

Approval
EMC

FCC: 47 CFR Part 15, Subpart B,

CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,

RCM: AS/NZS CISPR 32: 2015,

KC: KN32: 2015, KN35: 2015
Safety

UL: UL 62368-1,

CB: IEC 62368-1: 2014+A11,

CE-LVD: EN 62368-1: 2014/A11: 2017,

BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
Environment

CE-RoHS: 2011/65/EU,

WEEE: 2012/19/EU,

Reach: Regulation (EC) No 1907/2006
Protection
IP67: IEC 60529-2013
