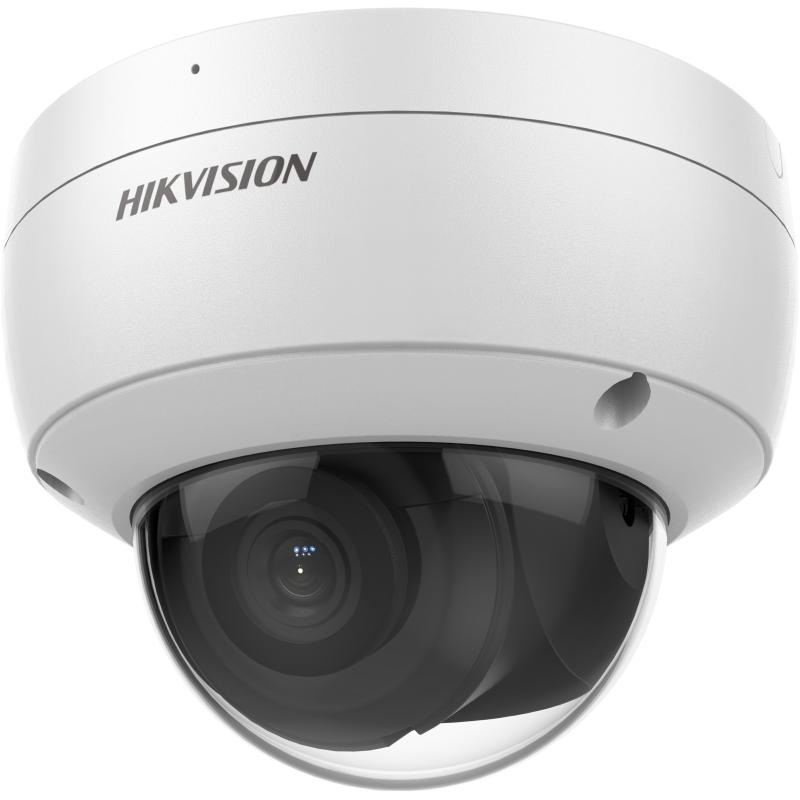

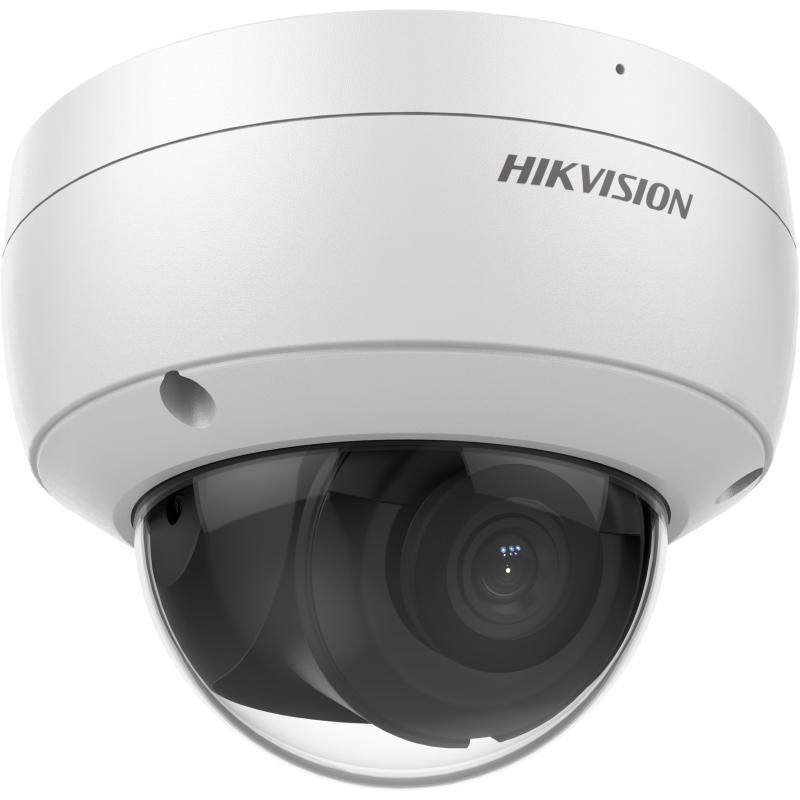

DS-2CD1143G0-IUF

4MP Build-in Mic Fixed Dome Network Camera

  • High quality imaging with 4 MP resolution
  • Efficient H.265+ compression technology
  • Clear imaging even with strong back lighting due to 120 dB WDR
  • Water and dust resistant (IP67) and vandal resistant (IK10)
  • EXIR 2.0: advanced infrared technology with long IR range
  • Support up to 256 GB SD card storage
  • Built-in microphone for real-time audio security
  • specification

    • Camera
    • Image Sensor1/3″ progressive scan CMOS
    • Max. Resolution2560 × 1440
    • Min. IlluminationColor: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR
    • Shutter Time1/3 s to 1/100,000 s
    • Day & NightIR cut filter
    • Angle AdjustmentPan: 0° to 355°, tilt: 0° to 75°
    • Lens
    • Focal Length & FOV

      2.8 mm, horizontal FOV 98.0°, vertical FOV 53.1°, diagonal FOV 114.7°

      4 mm, horizontal FOV 78.7°, vertical FOV 43.1°, diagonal FOV 92.3°

    • Lens MountM12
    • Iris TypeFixed
    • ApertureF2.0
    • Illuminator
    • Supplement Light TypeIR
    • Supplement Light RangeUp to 30 m
    • Smart Supplement LightYes
    • IR Wavelength850 nm
    • Video
    • Main Stream

      50 Hz: 20 fps (2560 × 1440)

      25 fps (1920 × 1080, 1280 × 720)

      60 Hz: 20 fps (2560 × 1440)

      30 fps (1920 × 1080, 1280 × 720)

    • Sub-Stream

      50 Hz: 25 fps (640 × 480, 640 × 360)

      60 Hz: 30 fps (640 × 480, 640 × 360)

    • Video Compression

      Main stream: H.265/H.264/H.264+/H.265+

      Sub-stream: H.265/H.264/MJPEG

    • Video Bit Rate32 Kbps to 8 Mbps
    • H.264 TypeBaseline Profile/Main Profile/High Profile
    • H.265 TypeMain Profile
    • Region of Interest (ROI)1 fixed region for main stream and sub-stream
    • Audio
    • Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
    • Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC)
    • Audio Sampling Rate8 kHz/16 kHz
    • Environment Noise FilteringYes
    • Network
    • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
    • Simultaneous Live ViewUp to 6 channels
    • APIOpen Network Video Interface, ISAPI
    • User/HostUp to 32 users. 3 levels: administrator, operator and user
    • ClientiVMS-4200, Hik-Connect
    • Web Browser

      Plug-in required live view: IE 10+

      Plug-in free live view: Chrome 57.0+, Firefox 52.0+

      Local service: Chrome 57.0+, Firefox 52.0+

    • Image
    • Image SettingsSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
    • Day/Night SwitchAuto, Schedule, Day, Night
    • Wide Dynamic Range (WDR)120 dB
    • SNR≥ 52 dB
    • Image EnhancementBLC, 3D DNR
    • Interface
    • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
    • On-Board StorageBuilt-in memory card slot, support microSD card, up to 256 GB
    • Built-in MicrophoneYes
    • Reset KeyYes
    • Event
    • Basic Event Motion detection, video tampering, exception
    • LinkageUpload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture
    • General
    • Power

      12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug

      PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W

    • DimensionØ120 mm × 92.2 mm (4.72″ × 3.63″)
    • Package Dimension150 mm × 150 mm × 141 mm (5.9″ × 5.9″ × 5.6″)
    • WeightApprox. 440 g (1.0 lb.)
    • With Package WeightApprox. 680 g (1.5 lb.)
    • Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
    • Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
    • LanguageEnglish, Ukrainian
    • General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
    • Approval
    • EMCFCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
    • SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
    • EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
    • ProtectionIP67 (IEC 60529-2013), IK10 (IEC 62262:2002)
