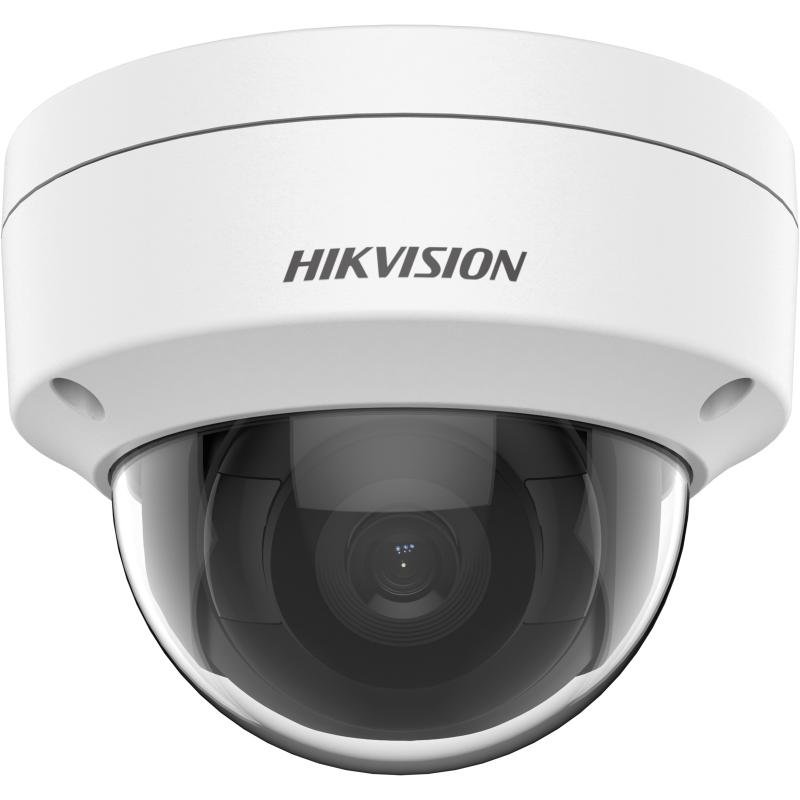

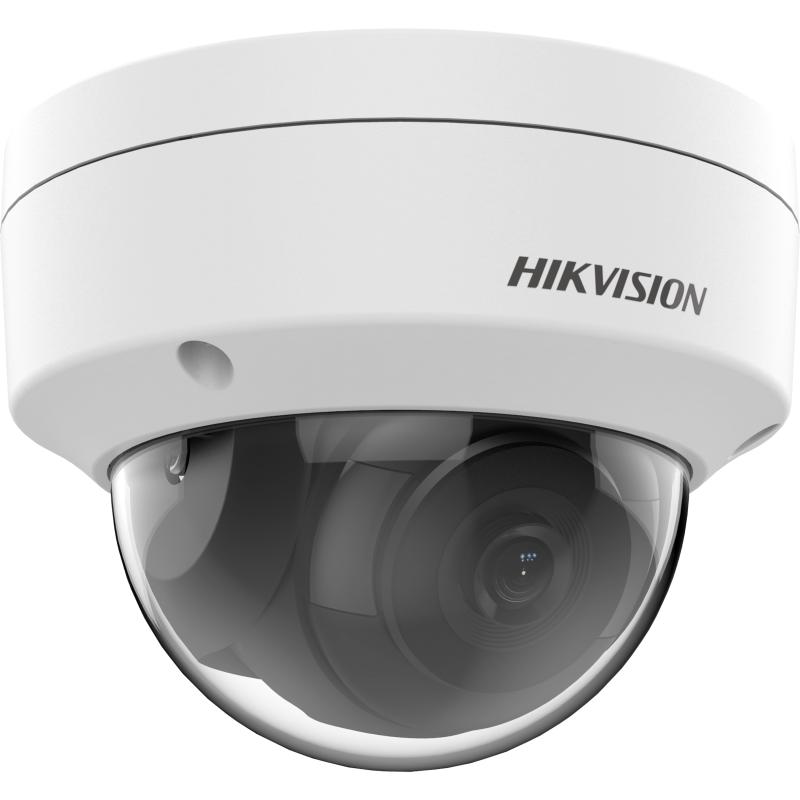

DS-2CD1183G0-I

2.8 mm, horizontal FOV 108°, vertical FOV 60°, diagonal FOV 127°

4 mm, horizontal FOV 86°, vertical FOV 46°, diagonal FOV 102°

2.8 mm, D: 81 m, O: 32 m, R: 16 m, I: 8 m

4 mm, D: 106 m, O: 42 m, R: 21 m, I: 11 m

50 Hz:

12.5 fps (3840 × 2160),

20 fps (2592 × 1944),

25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

60 Hz:

15 fps (3840 × 2160),

20 fps (2592 × 1944),

30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

Main stream: H.265+/H.264+/H.265/H.264

Sub-stream: H.265/H.264/MJPEG

Plug-in required live view: IE 10, IE 11

Local service: Chrome 57.0+, Firefox 52.0+

12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug

PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W

FCC (47 CFR Part 15, Subpart B)

CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014)

RCM (AS/NZS CISPR 32: 2015)

IC (ICES-003: Issue 7)

KC (KN32: 2015, KN35: 2015)

UL (UL 62368-1)

CB (IEC 62368-1: 2014+A11)

CE-LVD (EN 62368-1: 2014/A11: 2017)

BIS (IS 13252 (Part 1): 2010/IEC 60950-1: 2005)

CE-RoHS (2011/65/EU)

WEEE (2012/19/EU)

Reach (Regulation (EC) No 1907/2006)

IP67 (IEC 60529-2013)

IK10 (IEC 62262: 2002)
