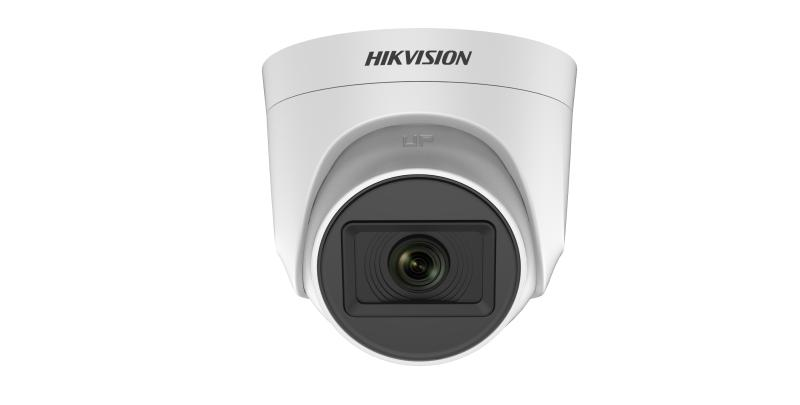

DS-2CE76D0T-EXIPF

2 MP Indoor Fixed Turret Camera

High quality imaging with 2 MP, 1920 × 1080 resolution

2.8 mm, 3.6 mm fixed lens

Up to 20 m IR distance for bright night imaging

One port for four switchable signals (TVI/AHD/CVI/CVBS)

specification

Camera
ModelDS-2CE76D0T-EXIPF
Product Name2MP Indoor EXIR Fixed Turret Camera
Image Sensor2 MP CMOS
Signal SystemPAL/NTSC
Resolution1920 (H) × 1080 (V)
Frame Rate
TVI: 1080p@25fps/30fps

AHD: 1080p@25fps/30fps

CVI: 1080p@25fps/30fps

CVBS: PAL/NTSC
Min. Illumination0.02 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Lens2.8 mm, 3.6 mm Fixed Lens
Field of View
2.8 mm, horizontal FOV: 96.5°, vertical FOV: 48.9°, diagonal FOV: 120.5°

3.6 mm, horizontal FOV: 76.9°, vertical FOV: 40.6°, diagonal FOV: 92.0°
Lens MountM12
Day & NightIR Cut Filter
WDR (Wide Dynamic Range)Digital WDR
Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°

Image ModeSTD/HIGH-SAT
AGCYes
Day/Night ModeAuto/Color/BW (Black and White)
White BalanceAuto
AE (Auto Exposure) ModeBLC;Global;DWDR
Noise Reduction2D DNR
LanguageEnglish
FunctionSharpness;Smart IR;Mirror;Brightness

Interface
Video OutputSwitchable TVI/AHD/CVI/CVBS

General
Operating Conditions-40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing)
Power Supply12 VDC ± 25%
ConsumptionMax. 3.3 W
MaterialPlastic
IR RangeUp to 20 m
CommunicationHIKVISION-C
DimensionΦ 84.6 mm × 78.9 mm (Φ 3.33″ × 3.11″)
WeightApprox. 195g (0.43 lb.)
