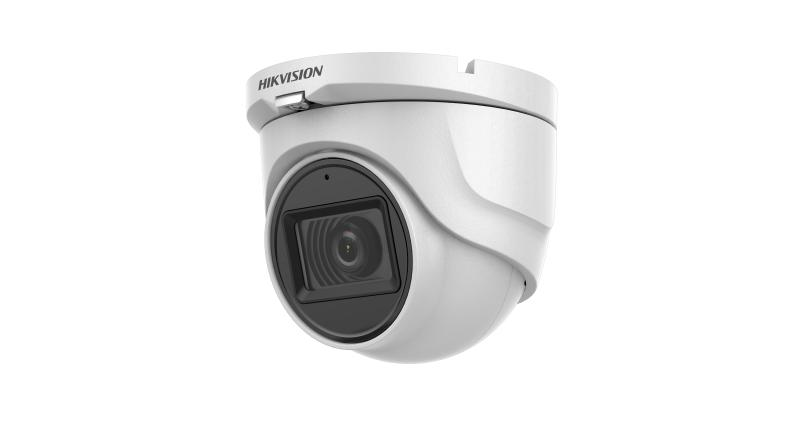

DS-2CE76D0T-ITMFS

2 MP Audio Fixed Turret Camera

2 MP coaxial audio camera

Enhancing safety with discreet and economical built-in microphone

Transmits audio over the coaxial cable

EXIR 2.0: advanced infrared technology with 30 m IR distance

Water and dust resistant (IP67)

4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)

specification

Camera
Image Sensor2 MP CMOS
Max. Resolution1920 (H) × 1080 (V)
Min. Illumination0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter TimePAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s
Day & NightICR
Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°
Signal SystemPAL/NTSC

Lens
Lens Type2.8 mm, 3.6 mm, 6 mm fixed lens
Focal Length & FOV2.8 mm, horizontal FOV: 106.4°, vertical FOV: 57.9°, diagonal FOV: 124.6° 3.6 mm, horizontal FOV: 79.6°, vertical FOV: 43.5°, diagonal FOV: 93.7° 6 mm, horizontal FOV: 51.9°, vertical FOV: 30°, diagonal FOV: 58.8
Lens MountM12

Image Parameters SwitchSTD/HIGH-SAT
Image SettingsBrightness, Sharpness, Mirror, Smart IR
Frame RateTVI: 1080P@30fps, 1080P@25fps AHD: 1080P@30fps, 1080P@25fps CVI: 1080P@30fps, 1080P@25fps CVBS: PAL/NTSC
Day/Night ModeAuto/Color/BW (Black and White)
Wide Dynamic Range (WDR)Digital WDR
Image EnhancementYes
White BalanceAuto/Manual
AGCSupport

Interface
Video OutputSwitchable TVI/AHD/CVI/CVBS

General
MaterialMetal
Dimension82.6 mm × 90 mm × 79.37 mm (3.25″ × 3.54″ × 3.12″)
WeightApprox. 289.5 g (0.64 lb.)
Operating Condition‘-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
CommunicationHIKVISION-C
LanguageEnglish
Power Supply12 VDC ± 25%
ConsumptionMax. 3.7 W
IR RangeUp to 30 m

Approval
ProtectionIP67
