DS-2CE76U1T-ITMF

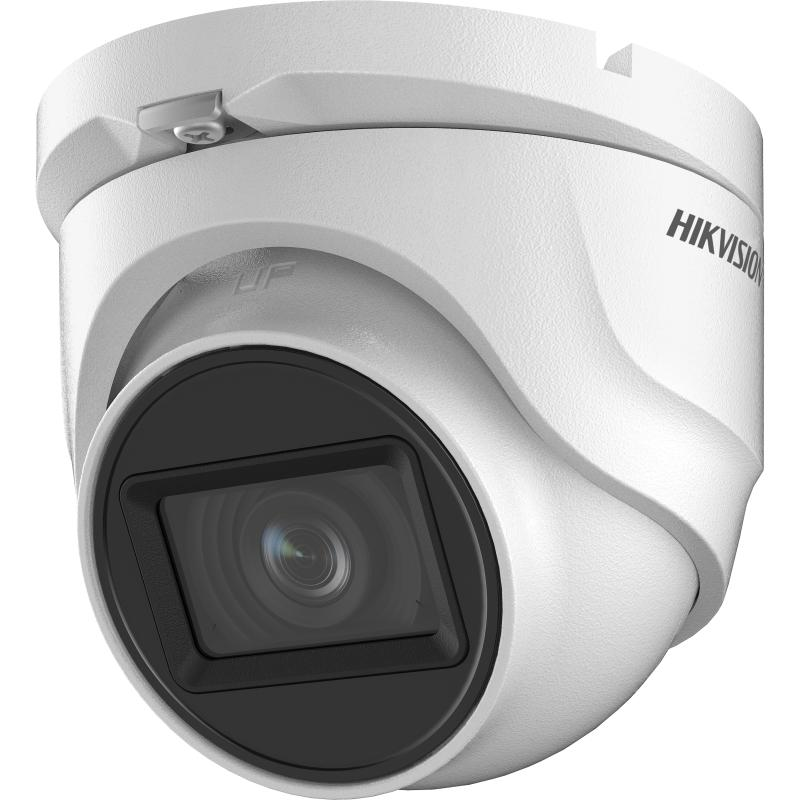

4K Fixed Turret Camera

8 MP turret camera

EXIR 2.0: advanced infrared technology with 30 m IR distance

Water and dust resistant (IP67)

4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)

specification

Camera
Image Sensor8.29 megapixel progressive scan CMOS
Max. Resolution3840 (H) × 2160 (V)
Min. IlluminationColor: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter TimePAL: 1/12.5 s to 1/50,000 s;NTSC: 1/15 s to 1/50,000 s
Day & NightIR Cut Filter
Angle AdjustmentPan: 0° to 360°, Tilt:0° to 75°, Rotate: 0° to 360°
Signal SystemPAL/NTSC

Lens
Lens Type2.8 mm, 3.6 mm, 6 mm fixed focal lens
Focal Length & FOVHorizontal FOV: 102.2° (2.8 mm), 79° (3.6 mm), 50.8° (6 mm)
Lens MountM16

Illuminator
Supplement Light TypeIR
Supplement Light RangeUp to 30 m
Smart Supplement LightYes

Image SettingsBrightness;Sharpness;AGC
Frame Rate
TVI: 8MP@12.5fps, 8MP@15fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fps

CVI: 8MP@12.5fps, 8MP@15fps

AHD: 8M@12.5fps, 8M@15fps

CVBS: 960H P/N
Day/Night ModeAuto/Color/BW (Black and White)
Wide Dynamic Range (WDR)Digital WDR
Image EnhancementBLC;HLC
Noise Reduction2D DNR
White BalanceAuto/Manual

Interface
Video Output1 HD analog output;Switchable TVI/AHD/CVI/CVBS

General
Power
12 VDC ±25%, max. 5.3 W

*You are recommended to use one power adapter to supply the power for one camera.
MaterialMetal
Dimension90 mm × 79.37 mm (3.54″ × 3.12″ )
WeightApprox. 310 g (0.68 lb.)
Operating Condition
-40 °C to 60 °C (-40 °F to 140 °F)

Humidity: 90% or less (non-condensation)
CommunicationHIKVISION-C
LanguageEnglish

Approval
ProtectionIP67
