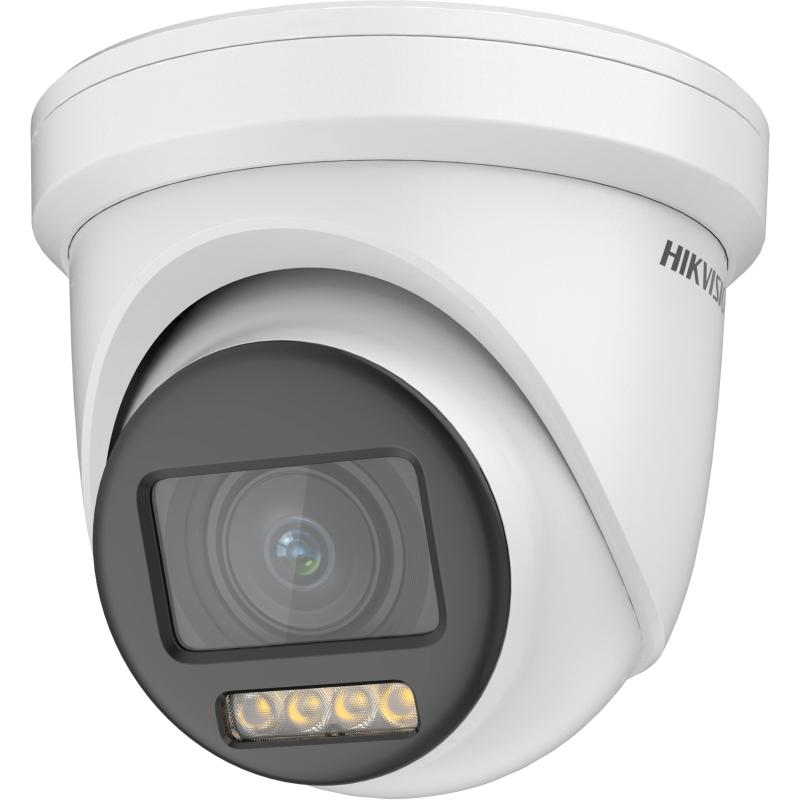

DS-2CE79DF8T-AZE

2 MP ColorVu PoC Motorized Varifocal Turret Camera

High quality imaging with 2 MP, 1920 × 1080 resolution

24/7 color imaging

Clear imaging against strong back light due to 130 dB true WDR technology

3D DNR technology delivers clean and sharp images

2.8 mm to 12 mm varifocal lens, auto focus

Smart Light, up to 40 m white light distance

Water and dust resistant (IP68)

specification

Camera
Image Sensor2 MP CMOS
Max. Resolution1920 (H) × 1080 (V)
Min. Illumination0.0003 Lux @ (F1.0, AGC ON), 0 Lux with white Light
Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Day & Night24/7 Color Imaging
Angle AdjustmentPan:0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
Signal SystemPAL/NTSC

Lens
Lens Type2.8 mm to 12 mm motorized, auto focus
Focal Length & FOVhorizontal FOV: 92.3° to 34.2°, vertical FOV: 48.4° to 19°, diagonal FOV: 112.2° to 39.2°
Lens MountΦ24

Illuminator
Supplement Light RangeUp to 40 m
Smart Supplement LightYes
Supplement Light TypeWhite Light

Image Parameters SwitchSTD/HIGH-SAT/HIGHLIGHT
Image SettingsBrightness, Mirror, Sharpness, Anti-Banding, AGC
Frame RateTVI: 1080p @ 25 fps/30 fps
Wide Dynamic Range (WDR)≥130 dB
Image EnhancementBLC, HLC, Global, HLS
Privacy Mask4 programmable privacy masks
Noise Reduction3D DNR/2D DNR
White BalanceAuto/Manual

Interface
Video Output1 HD analog output

Event
Motion Detection4 programmable motion areas

General
Power12 VDC/24 VAC±20%/PoC.at, max: 12.2 W
MaterialMetal
DimensionØ141.4 mm × 134.7 mm (Ø5.57″ × 5.3″)
WeightApprox. 840 g (1.85 lb.)
Operating ConditionØ141.4 mm × 134.7 mm (Ø5.57″ × 5.3″)
CommunicationHIKVISION-C
LanguageEnglish

Approval
ProtectionIP68
