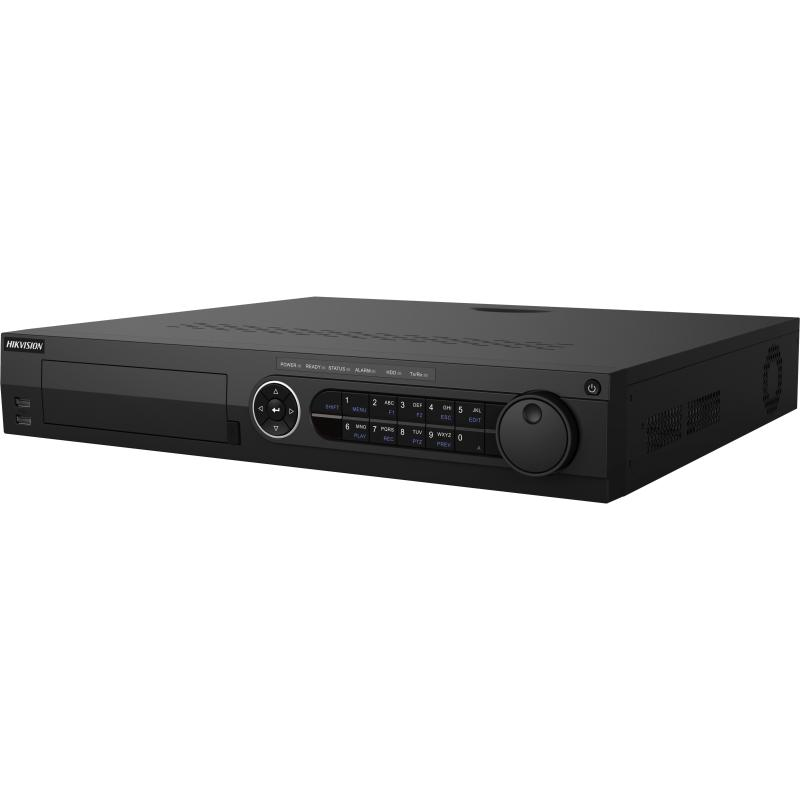

DS-7332HQHI-K4

32-ch 1080p 1.5U H.265 DVR

32 channels and 4 HDDs 1.5U DVR

Efficient H.265 pro+ compression technology

Encoding ability up to 1080p @ 15 fps

5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)

Up to 48 network cameras can be connected

Supports POS triggered recording and POS information overlay

specification

Recording
Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution
When 1080p Lite mode not enabled:

4 MP lite/3 MP/1080p/1080p lite/720p/WD1/4CIF/VGA/CIF

When 1080p Lite mode enabled:

4 MP lite/3 MP/1080p lite/720p/720p lite/WD1/4CIF/VGA/CIF
Frame Rate
Main stream:

When 1080p Lite mode not enabled:

For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

For 3 MP stream access: 3 MP/1080p/720p/WD1/4CIF/VGA/CIF@15fps

For 1080p stream access: 1080p/720p@15fps; WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

When 1080p Lite mode enabled:

For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p lite/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

For 3 MP stream access: 3 MP/1080p lite/720p lite/WD1/4CIF/VGA/CIF@15fps

For 1080p stream access: 1080p lite/720p lite/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

Sub-stream:

WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
Video Bitrate32 Kbps to 6 Mbps
Dual-streamSupport
Stream TypeVideo, Video & Audio
Audio CompressionG.711u
Audio Bitrate64 Kbps

Video and Audio
IP Video Input
16-ch (up to 48-ch)

Up to 6 MP resolution

Support H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input
32-ch

BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI Input
4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60

*: The 3 MP signal input is only available for channel 1/2/3/4.
AHD Input4 MP, 1080p25, 1080p30, 720p25, 720p30
HDCVI Input1080p25, 1080p30, 720p25, 720p30
CVBS InputPAL/NTSC
CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
HDMI 1 Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HDMI 2 Output1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Audio Input4-ch, RCA (2.0 Vp-p, 1 KΩ)
Audio Output1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (independent)
Synchronous Playback16-ch

Network
Remote Connection128
Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, SNMP
Network Interface1, RJ45 10M/100M/1000M self-adaptive Ethernet interface

Auxiliary Interface
Serial InterfaceRS-232, RS-485 (full-duplex), Keyboard
SATA4 SATA interfaces
eSATASupport
CapacityUp to 10 TB capacity for each disk
Alarm In/Out16/4
USB Interface
Front panel: 2 × USB 2.0

Rear panel: 1 × USB 3.0

General
Power Supply100 to 240 VAC, 50 to 60 Hz
Consumption≤ 45 W (without HDD)
Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
Working Humidity10% to 90%
Dimension (W × D × H)440 × 390 × 70 mm (17.3 × 15.4 × 2.8 inch)
Weight≤ 7 kg (15.4 lb., without HDD)
