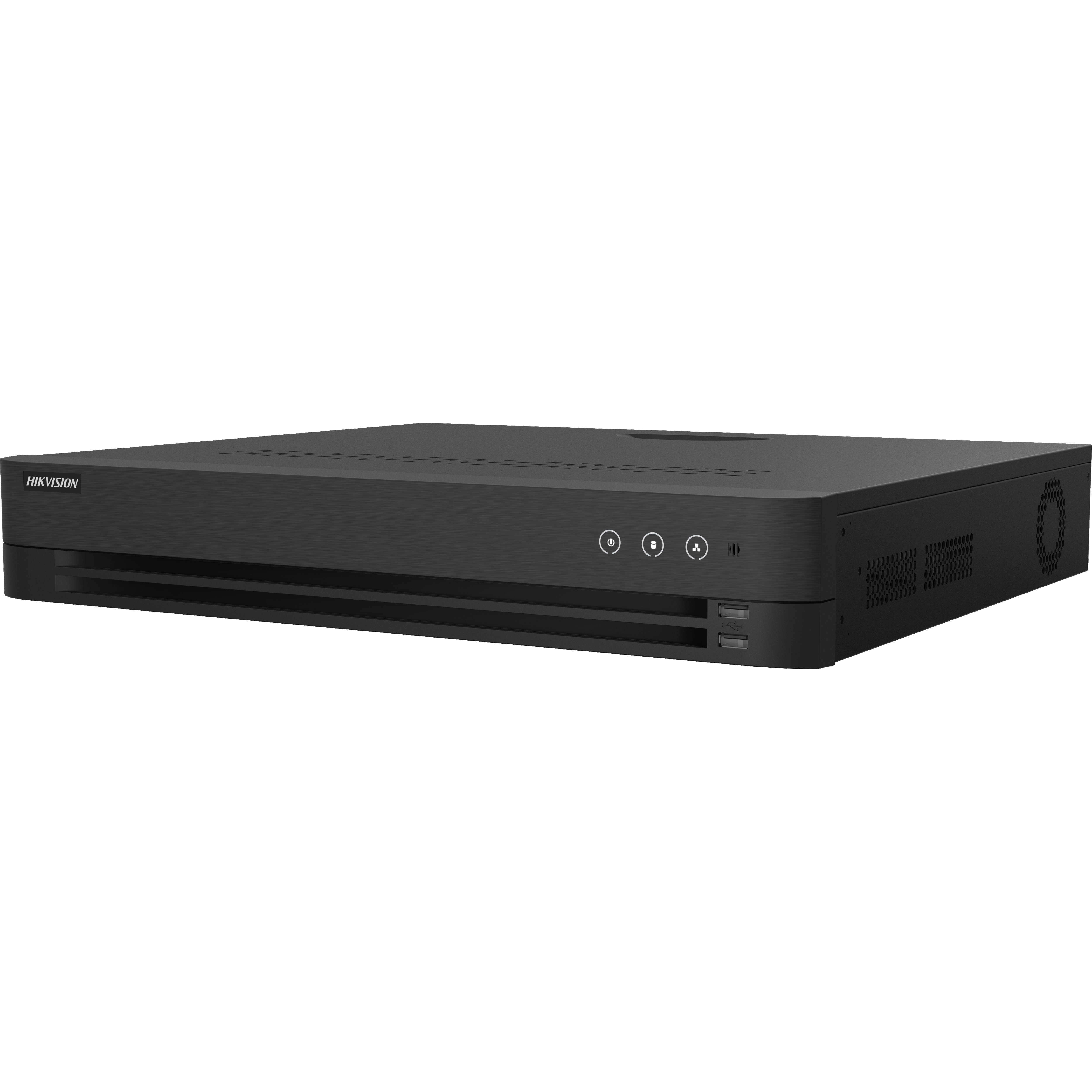

DS-7716NI-Q4

16-ch 1.5U 4K NVR

  • Up to 16-ch IP camera inputs
  • H.265+/H.265/H.264+/H.264 video formats
  • Up to 1-ch @ 8MP or 2-ch @ 4MP or 6-ch @ 1080P decoding capacity
  • 1 HDMI and 1 VGA interfaces: simultaneous video output
  • Up to 160 Mbps incoming bandwidth
  • 4 HDDs for continuous video recording
  • specification

    • Video and Audio
    • IP Video Input

      16-ch

      Up to 8 MP resolution

    • Incoming Bandwidth160 Mbps
    • Outgoing Bandwidth80 Mbps
    • HDMI Output1-ch, 4K (3840 Ă— 2160)/30Hz, 1920 Ă— 1080p/60Hz, 1600 Ă— 1200/60Hz, 1280 Ă— 1024/60Hz, 1280 Ă— 720/60Hz, 1024 Ă— 768/60Hz
    • VGA Output1-ch, 1920 Ă— 1080/60Hz, 1280 Ă— 1024/60Hz, 1280 Ă— 720/60Hz, 1024 Ă— 768/60Hz
    • Video Output ModeHDMI/VGA simultaneous output
    • Audio Output1-ch, RCA (Linear, 1 KΩ)
    • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k Ω)
    • Decoding
    • Decoding FormatH.265/H.265+/H.264/H.264+
    • Recording Resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
    • Synchronous playback16-ch
    • Decoding Capability1-ch@8 MP (30 fps)/6-ch@1080p (30 fps)
    • Stream TypeVideo, Video & Audio
    • Audio CompressionG.711ulaw/G.711alaw/G.726
    • Network
    • Remote Connection64
    • Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
    • Network Interface2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
    • Auxiliary Interface
    • Serial Interface1 RS-485 (half-duplex), 1 RS-232
    • SATA4, SATA interface
    • CapacityUp to 8 TB capacity for each disk
    • USB InterfaceFront panel: 2 Ă— USB 2.0; Rear panel: 1 Ă— USB 2.0
    • Alarm In/Out16/4
    • General
    • Power Supply100 to 240 VAC, 50 to 60 Hz
    • Consumption≤ 15 W (without HDD)
    • Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
    • Working Humidity10 % to 90 %
    • Dimension (W Ă— D Ă— H)440 Ă— 397 Ă— 75 mm (17.3″ Ă— 15.6″ Ă— 3.0″)
    • Weight≤ 5 kg (without HDD, 11 lb.)
    • Certification
    • FCCPart 15 Subpart B, ANSI C63.4-2014
    • CEEN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
