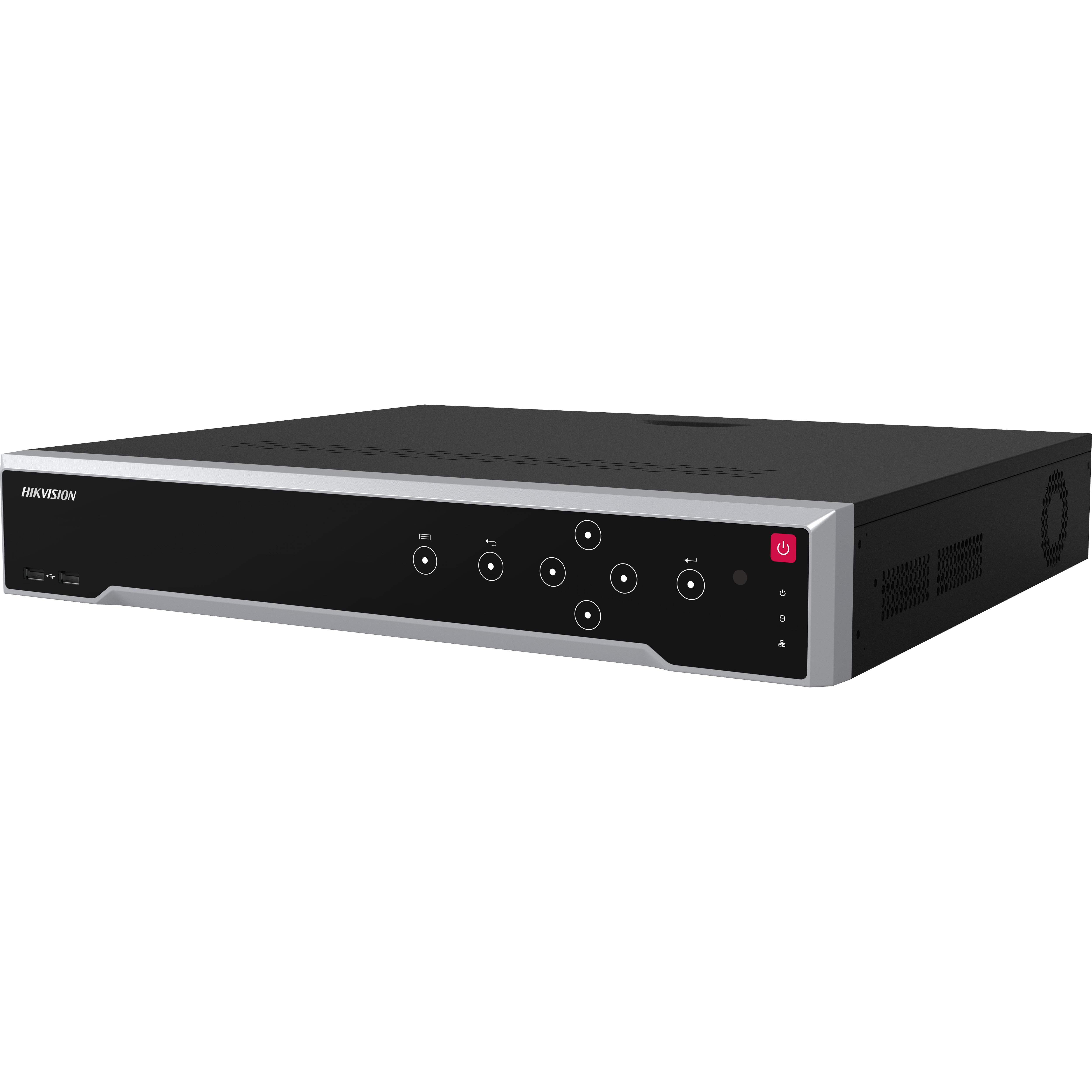

DS-7732NI-K4

32-ch 1.5U 4K NVR

  • Up to 32-ch IP camera inputs
  • H.265+/H.265/H.264+/H.264 video formats
  • Up to 2-ch@8 MP/4-ch@4 MP/8-ch@1080p decoding capacity
  • Up to 256 Mbps incoming bandwidth
  • specification

    • Recording
    • Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/acc/MP2L2
    • Video and Audio
    • IP Video Input32-ch
    • Incoming Bandwidth256 Mbps
    • Outgoing Bandwidth160 Mbps
    • HDMI Output1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
    • VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
    • Video Output ModeHDMI/VGA independent output
    • CVBS OutputN/A
    • Audio Output1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input )
    • Audio Input1-ch, RCA (2.0 Vp-p, 1 KΩ)
    • Decoding
    • Decoding FormatH.265/H.265+/H.264+/H.264/MPEG4
    • Recording Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/ 720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
    • Synchronous Playback16-ch
    • Decoding Capability1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p(30 fps)
    • Stream TypeVideo, Video & Audio
    • Network
    • Remote Connection128-ch
    • Network ProtocolTCP/IP, DHCP, IPv4, Hik-Connect, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
    • Network Interface2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
    • Auxiliary Interface
    • Ctrl 12V

      Controllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered.

      *: The Ctrl 12V power is controlled by alarm output 9.

    • DC 12V12 VDC, 1 A power output
    • SATA4 SATA interfaces
    • CapacityUp to 10 TB capacity for each HDD
    • Serial Interface2 RS-485 (half-duplex), 1 RS-232
    • USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
    • Alarm In/Out16/4 (16/9 is optional)
    • General
    • Power Supply100 to 240 VAC, 50 to 60Hz
    • Consumption≤ 20 W (without HDD)
    • Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
    • Working Humidity10 to 90 %
    • Dimension (W × D × H)445 × 400 ×71 mm ( 17.5″× 15.7″ × 2.8″)
    • Weight≤ 5 kg (without HDD, 11 lb.)
    • Certification
    • FCCPart 15 Subpart B, ANSI C63.4-2014
    • CEEN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
