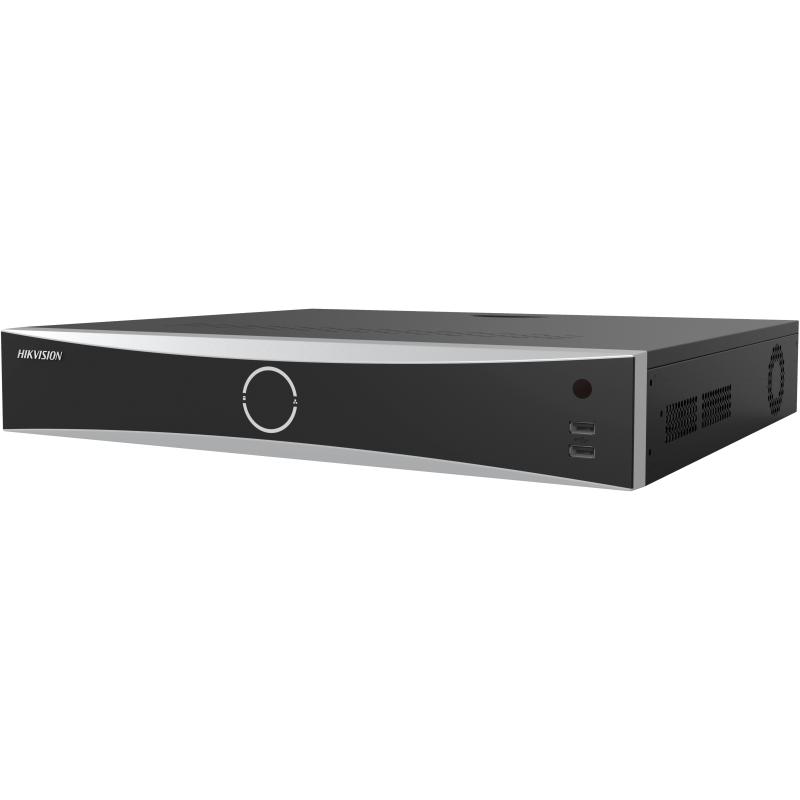

DS-7732NXI-I4/S

32-ch 1U AcuSense 4K NVR

  • H.265+/H.265/H.264+/H.264 video formats
  • Intelligent analytics based on deep learning algorithm
  • Up to 4-ch perimeter protection
  • Up to 1-ch facial recognition for video stream, or up to 4-ch facial recognition for face picture
  • Up to 16-ch IP camera inputs
  • Up to 16-ch 1080p decoding capability
  • Up to 160 Mbps incoming bandwidth
  • specification

    • Intelligent Analytics
    • AI by DeviceFacial recognition, perimeter protection, motion detection 2.0
    • AI by CameraFacial recognition, perimeter protection, video structuralization, throwing objects from building, motion detection 2.0, ANPR, people counting, VCA
    • Engine1, engine mode is adjustable
    • Facial Recognition
    • Facial Detection and AnalyticsFace picture comparison, human face capture, face picture search
    • Face AttributesWearing glasses, wearing a mask, facial expression, body temperature
    • Face Picture LibraryUp to 16 face picture libraries, with up to 10,000 face pictures in total (each picture ≤ 512 KB, total capacity ≤ 150 MB)
    • Face Picture Comparison (Captured from Camera)4-ch face picture comparison alarm
    • Facial Detection and Analytics Performance1-ch human face capture (HD network camera, up to 4 MP, H.264/H.265)
    • Motion Detection 2.0
    • By Device16-ch
    • By CameraAll channels
    • Perimeter Protection
    • By Device

      Up to 4-ch 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm;

      Up to 12 rules in total

    • By CameraAll channels
    • ANPR
    • By CameraAll channels
    • Vehicle AttributesPlate number, license plate color, license plate type
    • Plate AttributesVehicle brand, vehicle color, vehicle type
    • Video and Audio
    • IP Video Input

      16-ch

      Up to 12 MP resolution

      *: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled.

    • Incoming Bandwidth160 Mbps
    • Outgoing Bandwidth256 Mbps
    • HDMI 1 Output4K (3840 Ă— 2160)/60Hz, 4K (3840 Ă— 2160)/30Hz, 2K (2560 Ă— 1440)/60Hz, 1920 Ă— 1080/60Hz, 1600 Ă— 1200/60Hz, 1280 Ă— 1024/60Hz, 1280 Ă— 720/60Hz, 1024 Ă— 768/60Hz, HDMI1/VGA simultaneous output
    • HDMI 2 Output1920 Ă— 1080/60Hz, 1280 Ă— 1024/60Hz, 1280 Ă— 720/60Hz, 1024 Ă— 768/60Hz, HDMI2/VGA independent output
    • VGA Output

      1-ch, 1920 Ă— 1080/60Hz, 1280 Ă— 1024/60Hz, 1280 Ă— 720/60Hz, 1024 Ă— 768/60Hz,

      HDMI1/VGA simultaneous output

    • Video Output ModeHDMI1/VGA simultaneous output, HDMI2/VGA independent output
    • CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 Ă— 576, NTSC: 704 Ă— 480
    • Audio Output1-ch, RCA (Linear, 1 KΩ)
    • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ)
    • Decoding
    • Decoding FormatH.265+/H.265/H.264+/H.264/MPEG4
    • Recording Resolution

      32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF

      *: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled.

    • Synchronous Playback16-ch
    • Live View Window Division1/2/4/6/8/9/16
    • Aux Port Window Division1/2/4/6/8/9/16
    • Decoding Capability16-ch @ 1080p (30 fps)
    • Dual-Stream RecordingSupport
    • Stream TypeVideo, Video & Audio
    • Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/MP2L2
    • Network
    • Network Interface2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
    • Remote Connection128
    • Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
    • APIONVIF(profile S/G); SDK; ISAPI
    • Compatible BrowserIE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
    • Auxiliary Interface
    • Serial InterfaceRS-485 (half-duplex), RS-232, Keyboard
    • SATA4 SATA interfaces supporting hot-plug
    • CapacityUp to 10 TB capacity for each disk
    • eSATA1 eSATA interface
    • Alarm In/Out16/4
    • USB InterfaceFront panel: 2 Ă— USB 2.0; Rear panel: 1 Ă— USB 3.0
    • Ctrl 12V

      Controllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered.

      *: The Ctrl 12V power is controlled by alarm output 9.;Controllable 12 VDC, 0.5 A power output for external alarm device; The power will be turned on when the alarm output is triggered.

      *: The Ctrl 12V power is controlled by alarm output 9.

    • DC 12V12 VDC, 1 A power output
    • General
    • GUI LanguageEnglish, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian, Hebrew
    • Power Supply100 to 240 VAC, 50 to 60 Hz
    • Consumption≤ 30 W (without HDD)
    • Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
    • Working Humidity10% to 90%
    • Chassis19-inch rack-mounted 1.5U chassis
    • Dimension (W Ă— D Ă— H)440 Ă— 389 Ă— 75 mm ( 17.3″Ă— 15.3″ Ă— 3.0″)
    • Weight≤ 5.6 kg (without HDD, 12.3 lb.)
    • Certification
    • Obtained CertificationCE, CB, REACH, WEEE, UKCA, LOA
    • CEEN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
