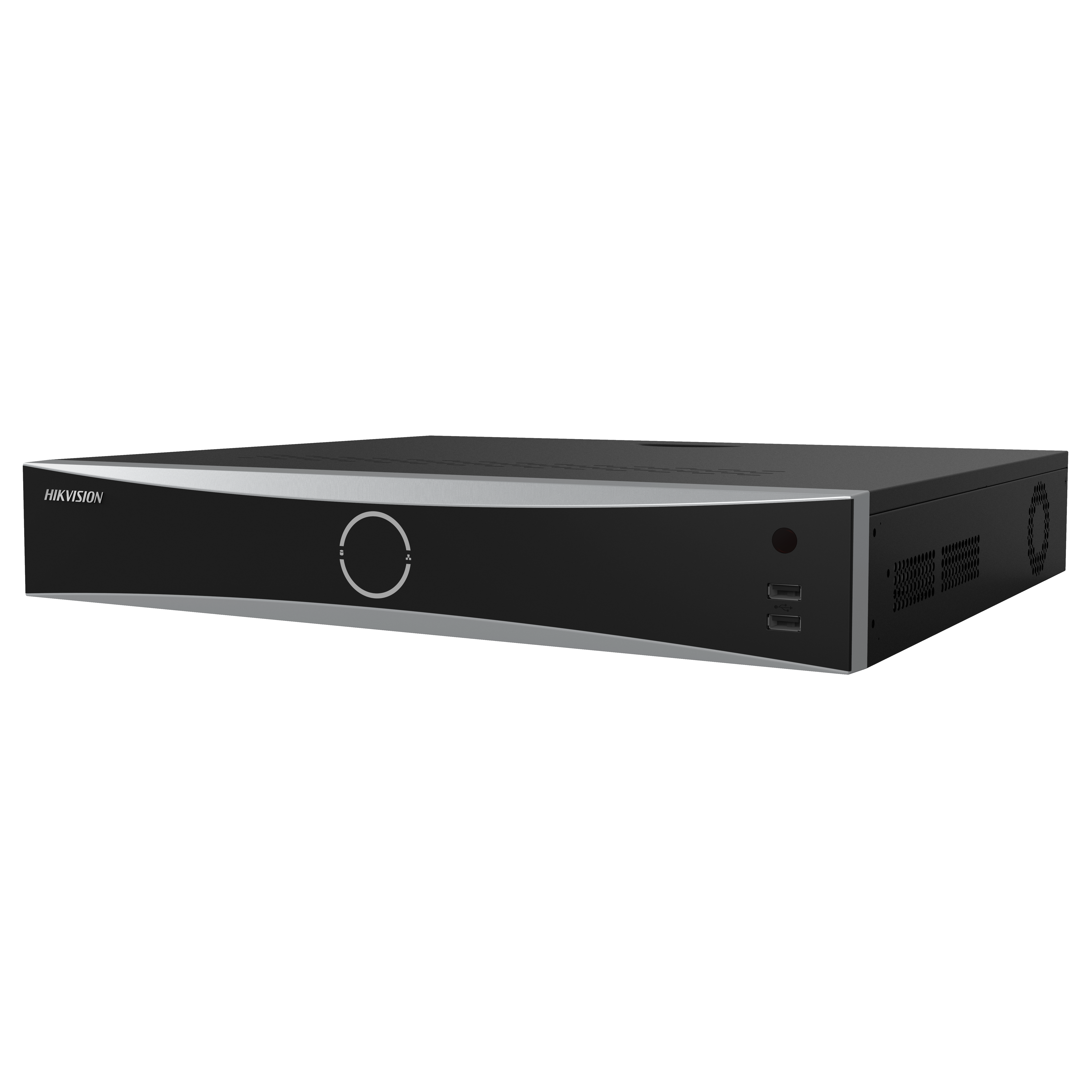

DS-7732NXI-K4

32-ch 1.5U K Series AcuSense 4K NVR

  • Up to 32-ch IP camera inputs
  • H.265+/H.265/H.264+/H.264 video formats
  • Up to 2-ch@12 MP or 3-ch@8 MP or 6-ch@4 MP or 12-ch@1080p decoding capacity
  • Up to 256 Mbps incoming bandwidth
  • Adopt Hikvision Acusense technology to minimize manual effort and security costs
  • specification

    • Facial Recognition
    • Facial Detection and AnalyticsFace picture comparison, human face capture, face picture search
    • Face Picture LibraryUp to 16 face picture libraries, with up to 20,000 face pictures in total (each picture ≤ 4 MB, total capacity ≤ 1 GB)
    • Facial Detection and Analytics Performance1-ch human face capture
    • Face Picture Comparison4-ch face picture comparison alarm
    • Motion Detection 2.0
    • Human/Vehicle Analysis32-ch
    • Perimeter Protection
    • Human/Vehicle AnalysisUp to 2-ch 4 MP (HD network camera, up to 8 MP, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm
    • Video and Audio
    • IP Video Input32-ch
    • Incoming Bandwidth256 Mbps
    • Outgoing Bandwidth160 Mbps
    • HDMI Output1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
    • VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
    • Video Output ModeHDMI/VGA independent output
    • CVBS OutputN/A
    • Audio Output1-ch, RCA (Linear, 1 KΩ)
    • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input )
    • Decoding
    • Decoding FormatH.265/H.265+/H.264+/H.264
    • Recording Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/ 720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
    • Synchronous playback16-ch
    • Decoding Capability

      AI on: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps)

      AI off: 2-ch@12 MP (30 fps)/3-ch@8 MP (30 fps)/6-ch@4 MP (30 fps)/12-ch@1080p (30 fps)

    • Stream TypeVideo, Video & Audio
    • Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC
    • Network
    • Remote Connection128
    • Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
    • Network Interface2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
    • Auxiliary Interface
    • SATA4 SATA interfaces
    • CapacityUp to 10 TB capacity for each HDD
    • Serial Interface2 RS-485 (half-duplex), 1 RS-232
    • Alarm In/Out16/4 (16/9 is optional)
    • USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
    • Ctrl 12VN/A (optional to support)
    • DC 12VN/A (optional to support)
    • General
    • Power Supply100 to 240 VAC, 50 to 60Hz
    • Consumption≤ 20 W (without HDD)
    • Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
    • Working Humidity10 to 90 %
    • Dimension (W × D × H)445 × 400 × 75 mm ( 17.5″× 15.7″ × 3.0″)
    • Weight≤ 5 kg (without HDD, 11 lb.)
    • Certification
    • FCCPart 15 Subpart B, ANSI C63.4-2014
    • CEEN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
