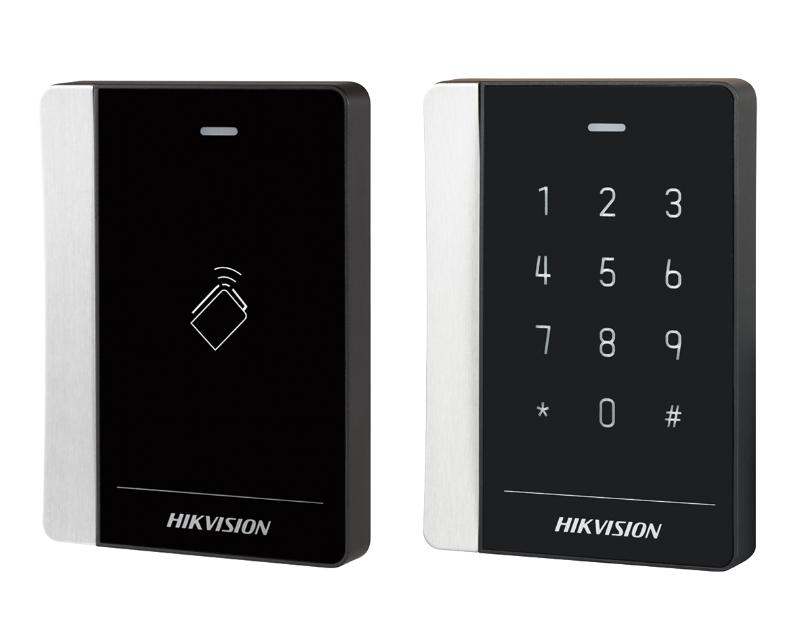

DS-K1102A

Pro 1102A Series Card Reader

Built-in audible beeper

RS-485 and Wiegand (W26/ W34) protocol

Tamper-proof alarm

Supports reading EM card (Frequency: 125 KHz) (DS-K1102AE/DS-K1102AEK/DS-1102AEM)

Supports reading Mifare card (Frequency: 13.56 MHz). (DS-K1102AM/DS-K1102AMK/DS-K1102AEMK)

specification

System
Processor32 bit

Authentication
Card reading frequency
DS-K1102AE/DS-K1102AEK/DS-K1102AEM/DS-K1102AEMK: 125 KHz

DS-K1102AM/DS-K1102AMK/DS-K1102AEM/DS-K1102AEMK: 13.56 MHz
Card reading distance≤ 50 mm (1.97″)

Function
ID settingsvia DIP switch

General
Keypad
DS-K1102AE/DS-K1102AM/DS-K1102AEM: No Keypad

DS-K1102AEK/DS-K1102AMK/DS-K1102AEMK: Keypad with 12 keys (0 to 9, *, #)
IndicatorPower indicator; Status LED indicator
Power supply12 VDC, 500 mA, 2 W
Working temperature-20°C to 65°C (-4°F to 149°F)
Working humidity10% to 90% (Non condensing)
Dimensions121 mm × 86.5 mm × 14 mm (4.76″ × 3.41″ × 0.55″)
Protective levelIP64
Weight≤ 0.14 kg
InstallationApplied for 86 & 120 gang box
BuzzerBeeper
