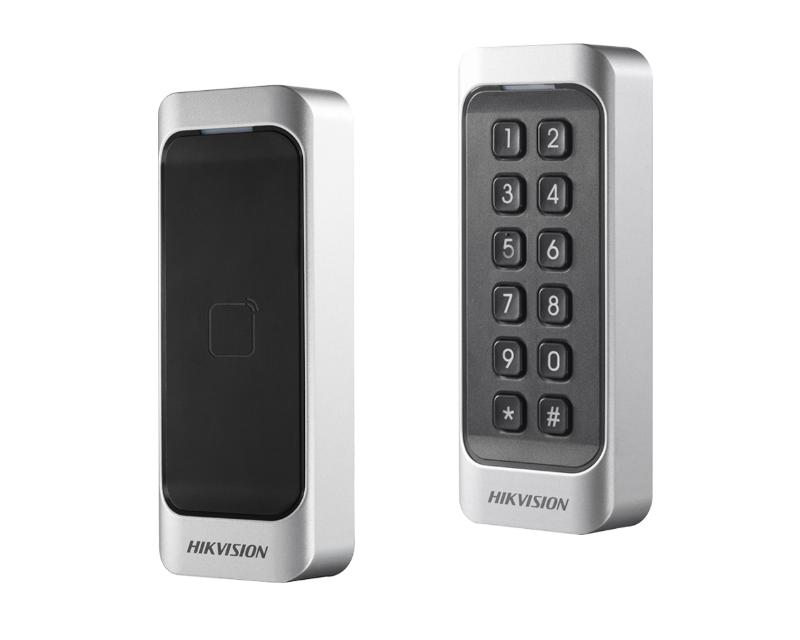

DS-K1107

Pro 1107 Series Card Reader

Mifare1/ EM card reader

Built-in audible beeper

RS-485， Wiegand (W26/W34) protocol, and OSDP protocol

IP65

specification

System
Processor32-bit

Interface
TAMPERsupport
RS-485support
Wiegandsupport

Authentication
Card reading distance≤50mm (≤1.97″)

Function
ID settingsvia DIP Switch

General
IndicatorPower Indicator, Status Indicator
Power supply12V DC
Power consumption≤2W
Working temperature-20°C to +65°C (-4°F to 149°F)
Working humidity10% to 90% (Non Condensing)
Protective levelIP65
Dimensions115mm × 44mm × 22mm (4.53” × 1.73” × 0.87”)
KeypadNo Keypad (DS-K1107E and DS-K1107M)Keypad with 12 Keys (0~9, *, #) (DS-K1107EK and DS-K1107MK)
Buzzersupport
