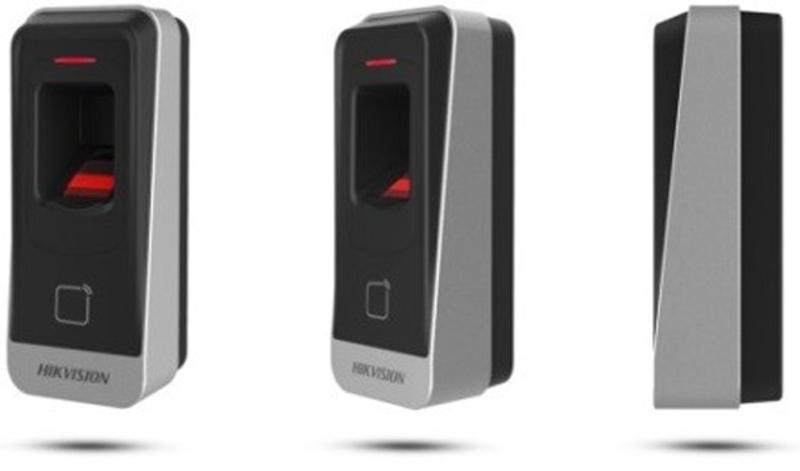

DS-K1201AMF

Fingerprint Reader

A group of messy code encrypted data for the security of fingerprint storage

Supports RS-485 communication with 19200bps-N-8-1 transmission rate. There are CRC test for the protocol

Supports M1 card reading

Card induction distance is 30 mm to 100 mm

Supports multiple authentication modes (card, fingerprint, and card + fingerprint)

Optical CMOS fingerprint module. The characters of fingerprint can be export to the card reader

Max. 5000 fingerprints storage

Adopts the optical fingerprint module, supporting 1:N mode (fingerprint, card + fingerprint) and 1:1 mode (card + fingerprint)

Fingerprint comparison time: 1:1 ≤ 1 s, 1:1000 ≤ 1 s; FRR ≤ 0.01%, FAR ≤ 0.001%

Communication circuit is designed with optical coupling isolation and noise suppression function

Built-in buzzer for status indication

Accurate data and time display provided by built-in electronic clock and watchdog program to ensure the basic function of the terminal

Tamper-proof function

specification

Network
Communication protocolRS-485

Interface
TAMPER1

Capacity
Fingerprint capacity5000

Authentication
Fingerprint moduleOptical fingerprint module
Fingerprint comparing mode1:1/1:N
Card typeM1 card

General
Power supply12 VDC ± 10%
Working temperature-40 °C to 70 °C (-40 °F to 158 °F)
Working humidity10% to 90% (No condensing)
Protective levelIP65
Dimensions62 mm × 132 mm × 44 mm (2.44″ × 5.20″ × 1.73″)
InstallationSurface mounting
BuzzerSupport
