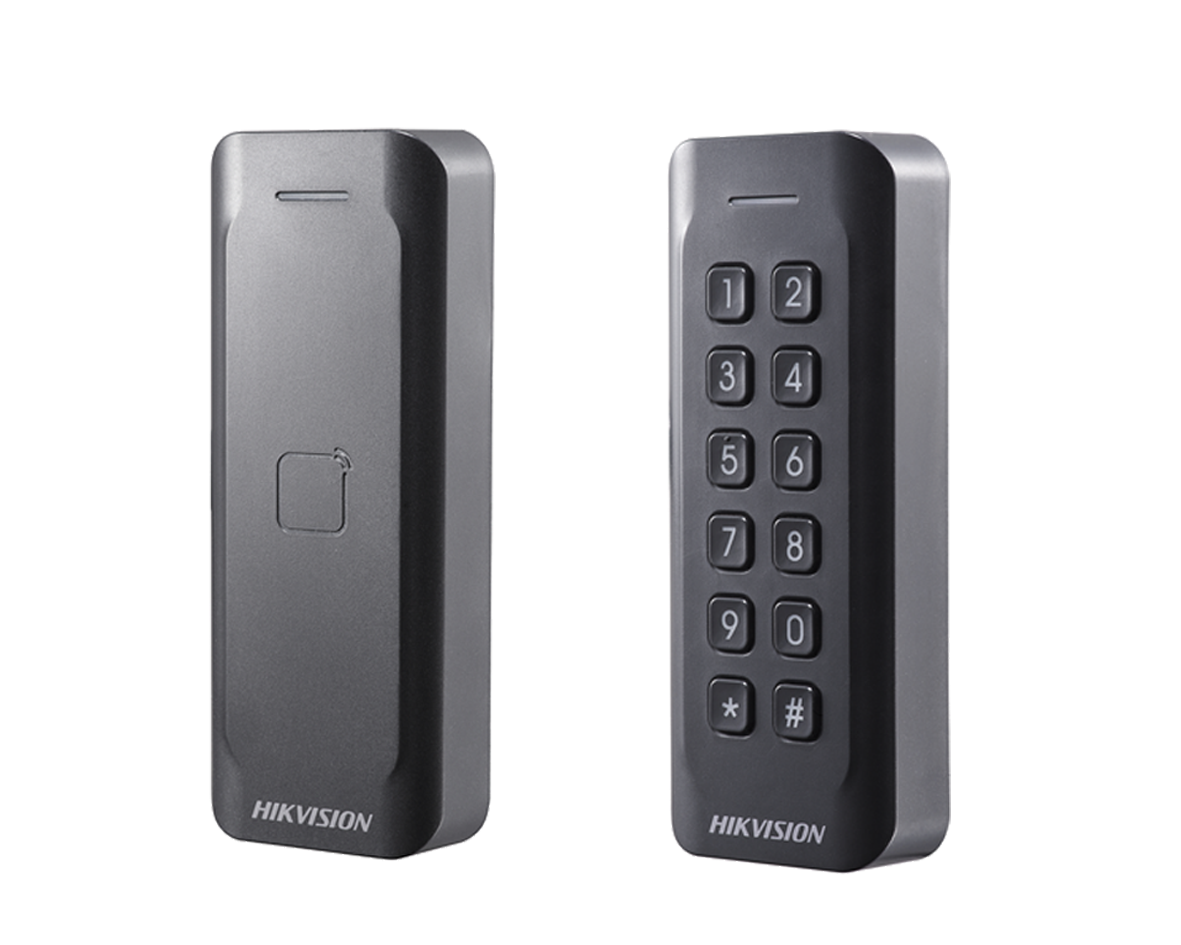

DS-K1802

Value 1802 Card Reader (EM & MF & Keyboard)

Mifare1/ EM card reader

PC+ABS material shell

Built-in audible beeper

Wiegand interface

IP65

specification

Authentication
Card reading frequency13.56MHz/125KHz

General
Power supply12 VDC
Working temperature-20°C to +65°C (-4°F to 149°F)
Working humidity10% to 90% (Non condensing)
Dimensions115.9mm×43.3mm×17mm (4.56″×1.70″×0.67″)
InstallationWall mounting with screws; Do not support gang box
KeypadNo Keypad (DS-K1802E and DS-K1802M)Keypad with 12 Keys (0~9, *, #) (DS-K1802EK and DS-K1802MK)
BuzzerBeeper
