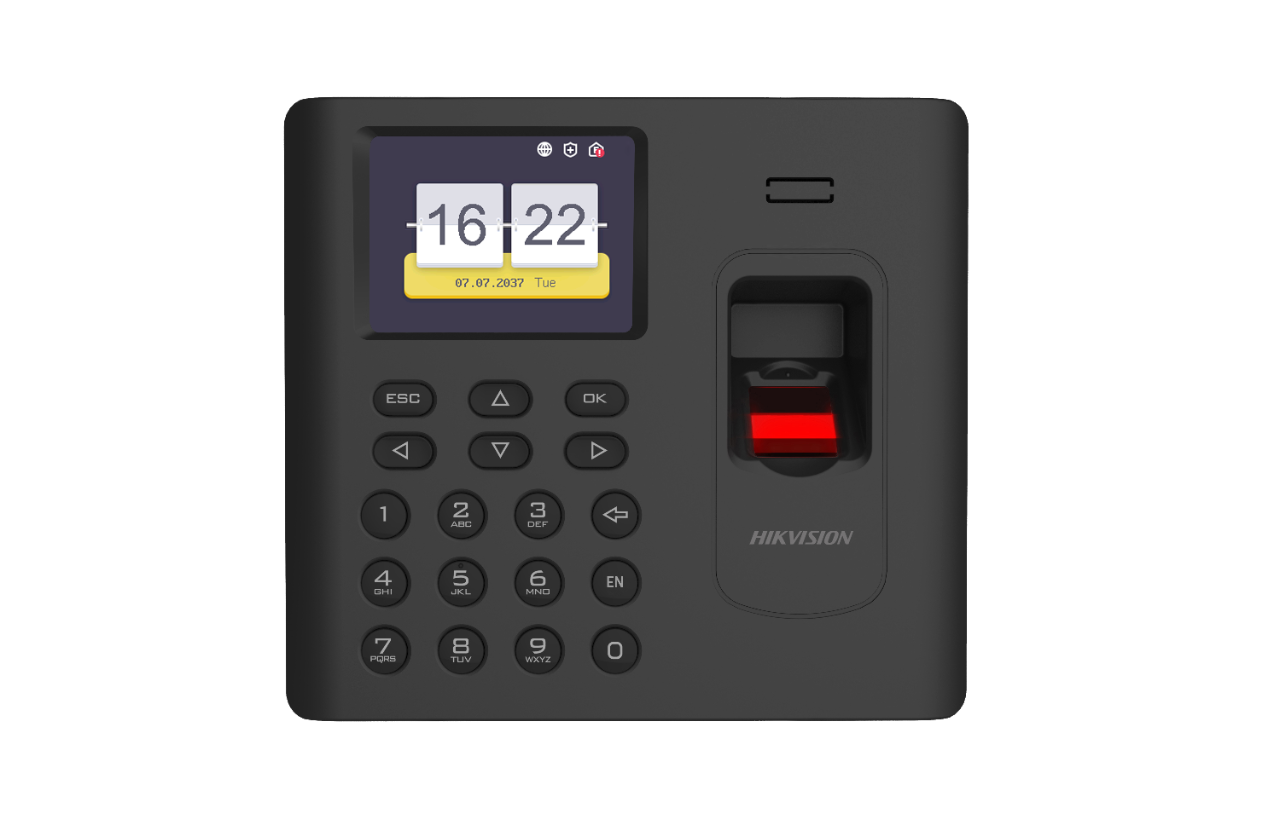

DS-K1A802AF

K1A802 Pro Series Fingerprint Time Attendance Terminal

Fingerprint Time Attandence Terminal

3,000 fingerprints, 100,000 events storage

Communication via TCP/TP and Wi-Fi

Power supply：5 VDC/1 A

ISUP5.0, ISAPI

specification

Display
Screen size2.4-inch
TypeLCD-TFT display screen

Audio
Audio output1 loudspeaker, 1 buzzer

Network
Wired networkTCP/IP, 10/100Mbps, self-adaptive
Wi-FiSupport

Interface
Network interface1
USB1

Capacity
Fingerprint capacity3000
Event capacity100,000

Authentication
Fingerprint moduleOptical fingerprint module
Fingerprint comparing mode1:1 and 1:N
Fingerprint recognition duration＜ 1 s

General
IndicatorPower/status (red/green)
Power supply5 VDC/1 A
Working temperature-10 °C to +55 °C (14 °F to +131 °F)
Working humidity10% to 90% (no condensing)
ColorBlack
Dimensions140 mm × 155 mm × 30 mm (5.51″ × 6.01″ × 1.18″)
Application environmentIndoor
InstallationSurface mounting, desk stand
