DS-K1T8003EF

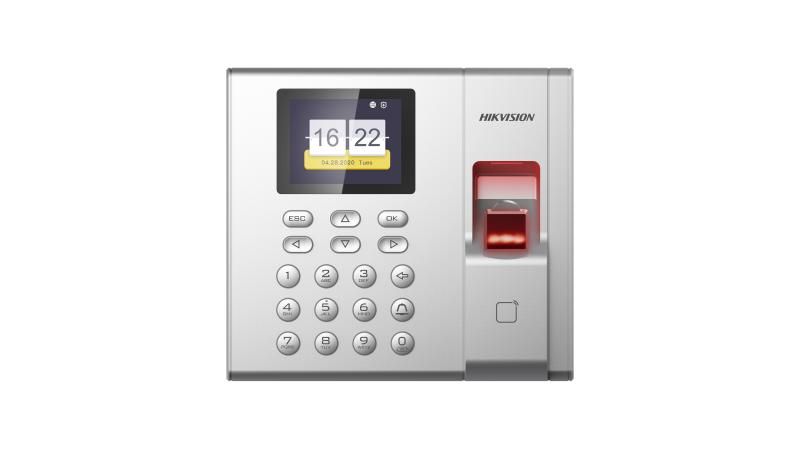

K1T8003 Value Series Fingerprint Time Attendance Terminal

2.4-inch LCD Display Fingerprint Access Control Terminal, Built-in EM card reading module

Communication: TCP/IP，ISUP5.0 ； 1000 users, 1000 fingerprints，1000 card and Max. 100,000 event records

Support Access Control and Time Attendance Function, Optical Fingerprint Module

Remotely opens door via Hik-Connect mobile client；Tamper alarm.

specification

Display
Screen size2.4-inch
TypeLCD-TFT display screen

Audio
Audio output1 loudspeaker, 1 buzzer

Network
Wired networkTCP/IP, 10/100Mbps, self-adaptive
Communication protocolTCP/IP, ISUP

Interface
Network interface1
Lock control1
Exit button1
Door contact input1
TAMPER1
USB1

Capacity
Card capacity1000
Fingerprint capacity1000
Event capacity100,000

Authentication
Card typeEM card
Card reading distance0 to 3.5 cm
Fingerprint moduleOptical fingerprint module
Fingerprint comparing mode1:1 and 1:N
Fingerprint recognition duration＜ 1 s

General
Power supply12 VDC/1 A
Working temperature-10 °C to +55 °C (14 °F to +131 °F)
Working humidity10% to 90% (no condensing)
ColorSilver
Dimensions140 mm × 155 mm × 30 mm (5.51″ × 6.01″ × 1.18″)
Self Service Reports (SSR)Stand-alone operation, calculate attendance data and export reports via USB interface
InstallationWall mounting
