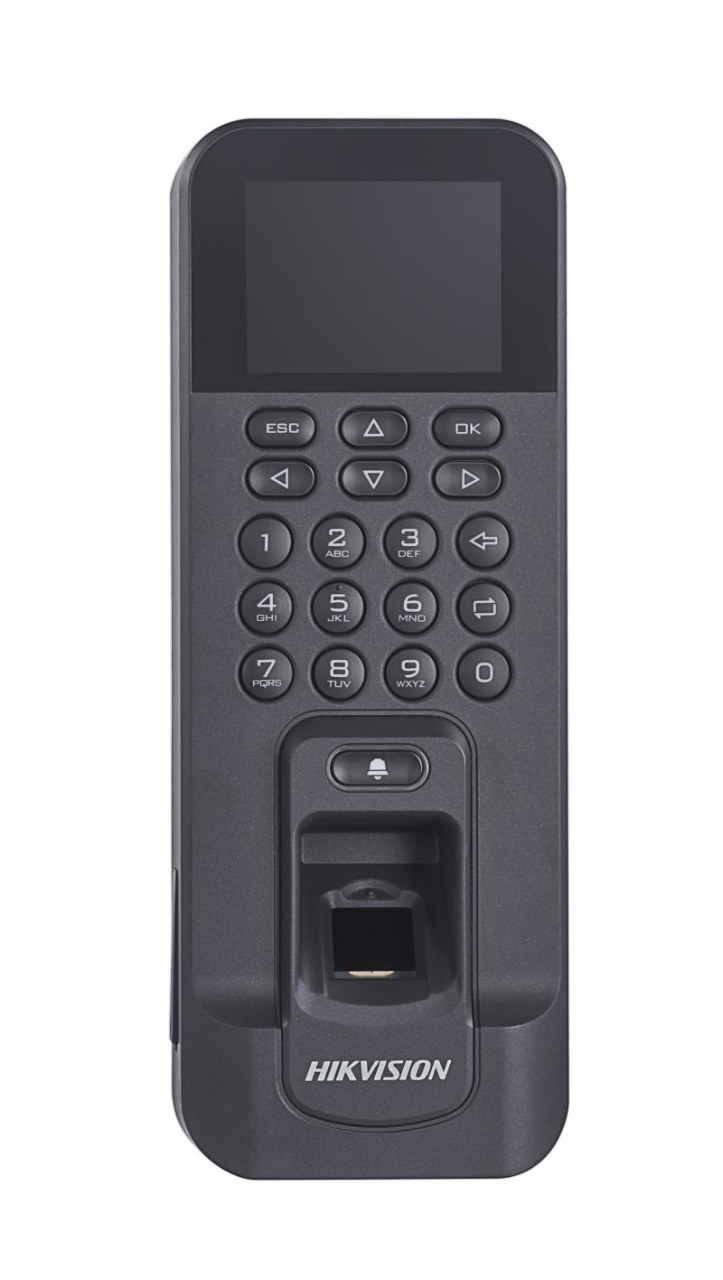

DS-K1T804AF

K1T804A Pro Series Fingerprint Terminal

Integrated management of access control and the time and attendance functions

3,000 fingerprints and 100,000 events storage

Built-in card reader for Mifare1 card

Communication via TCP/TP and Wi-Fi

RS-485, wiegand interface

Alarm input and output interface

ISUP5.0, ISAPI

specification

Display
Screen size2.4-inch
Resolution320 × 240
TypeLCD-TFT display screen

Audio
Audio output1 loudspeaker, 1 buzzer

Network
Wired networkTCP/IP, 10/100Mbps, self-adaptive
Wi-FiSupport

Interface
Network interface1
RS-4851
Wiegand1
Lock control1
Exit button1
Door contact input1
Alarm input1
Alarm output1
TAMPER1
USB1

Capacity
Fingerprint capacity3000
Event capacity100,000

Authentication
Fingerprint moduleOptical fingerprint module
Fingerprint comparing mode1:1 and 1:N
Fingerprint recognition duration＜ 1 s

General
IndicatorPower/status (red/green)
Power supply12 VDC/1 A
Working temperature-10 °C to +55 °C (14 °F to +131 °F)
Working humidity10% to 90% (no condensing)
ColorBlack (included), gold (optional), silver (optional), white (optional)
Dimensions205 mm × 76.5 mm × 37 mm (8.07″ × 3.01″ × 1.46″)
InstallationSurface mounting
LanguageEnglish, Vietnamese, Brazilian Portuguese, Spanish, French, Italian, Arabic, Thai, Turkish, Indonesian, and Ukrainian
