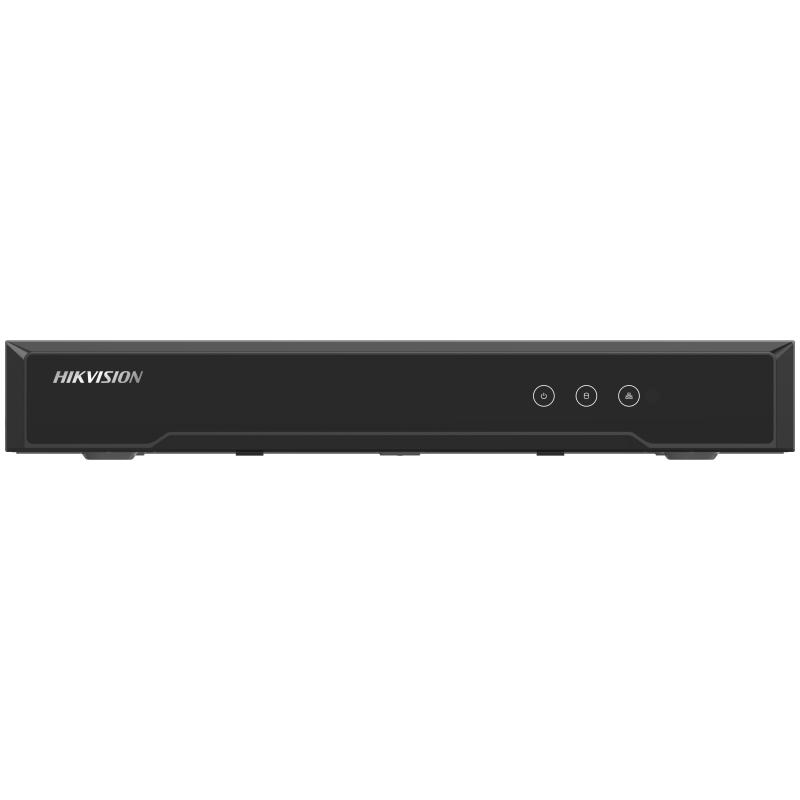

iDS-6704HUHI-M

Main stream:

8 MP@8 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps

1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

*: 8 MP@8 fps is only available for channel 1, 8 MP Lite is only available for channel 2 to channel 4.

Sub-stream:

WD1/4CIF/CIF@25 fps (P)/30 fps (N)

2-ch (up to 6-ch)

Up to 8 MP resolution

Enhanced IP mode on:

4-ch (up to 8-ch), each up to 4 Mbps

Support H.265+/H.265/H.264+/H.264 IP cameras

1-ch, BNC (1.0 Vp-p, 75 Ω),

resolution: PAL: 704 × 576, NTSC: 704 × 480

8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps

*: The 8 MP signal input is only available for channel 1.
