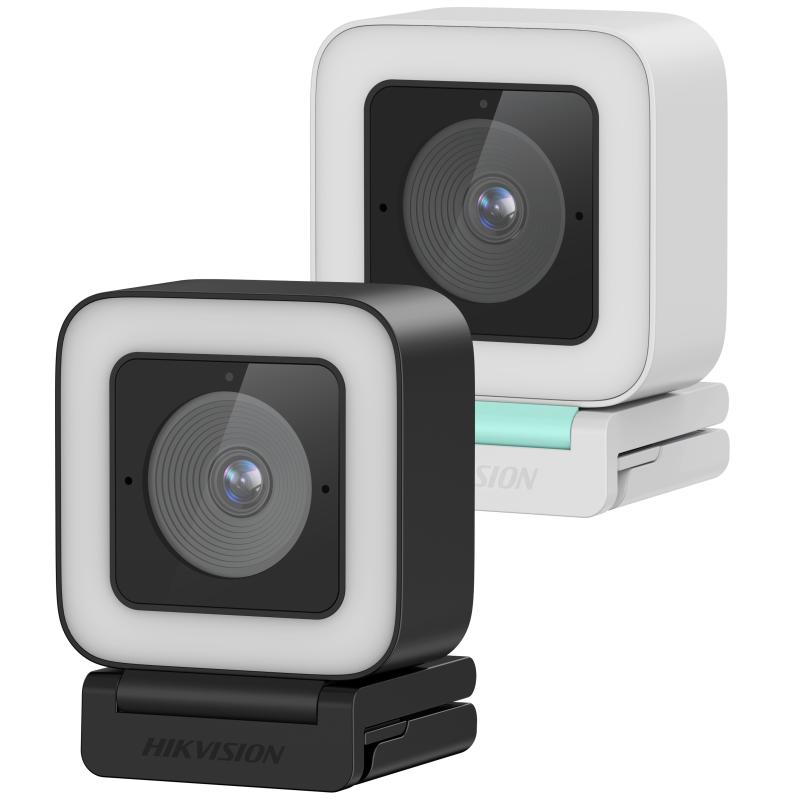

iDS-UL2P

2MP AI Web Camera

High quality imaging with 1920 × 1080 resolution, up to 60 fps

Sharp Auto Focus (SAF) offers clear image when shooting at a close range

Built-in dual-microphone picks up clear sounds at long distances

Supporting type A and type C interface. Plug-and-play, no need to install driver software

AI face beautification makes everyone looks better in the video

Auto Frame keeps the face in the center

Five levels of supplement light to easily adapt to low light environment

The tripod in the package for flexible mounting

specification

Camera
Image Sensor1/2.7″ 2 MP CMOS
Signal SystemPAL/NTSC
Frame Rate
MJPG:

1920 × 1080 @60 fps/50 fps/30 fps/25 fps

1280 × 960 @60 fps/50 fps/30 fps/25 fps

1280 × 720 @60 fps/50 fps/30 fps/25 fps

640 × 480 @60 fps/50 fps/30 fps/25 fps

640 × 360 @60 fps/50 fps/30 fps/25 fps

YUV2:

1920 × 1080 @5 fps

1280 × 960 @5 fps

1280 × 720 @10 fps

640 × 480 @30/25 fps

640 × 360 @30 fps/25 fps

NV12:

1920 × 1080 @5 fps

1280 × 960 @5 fps

1280 × 720 @10 fps

640 × 480 @30/25 fps

640 × 360 @30 fps/25 fps
Resolution1920 (H) × 1080 (V)
Min. Illumination0.1 Lux @ (F1.2, AGC ON)
Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
LensFixed focal lens, 3.6 mm
Field of Viewhorizontal FOV: 86°, vertical FOV: 55°, diagonal FOV: 95°
Lens MountM8
Angle AdjustmentPan: 0° to 0°, tilt: 0° to 90°, rotate: 0°
Digital Zoom2 ×

Lens
Depth of Field5 cm to ∞

Microphone
TypeElectret
Direction360° Omni-directional
Pickup DistanceIn a radius of up to 5 m
Amount2
Frequency Response100 Hz to 16 kHz
Sensitivity -32 dBV/Pa
SNR60 dB(A)
Sampling Rate16 KHz

Functions
Image FunctionFace AE, Auto Frame

Wide Dynamic Range (WDR)≥120 dB
White BalanceAuto

Interface
Operating System
Recommended systems

Windows 7/8/10/11

Android 8.1 and above version

Linux 4.14 and above version

macOS 10.12 and above version

Chrome OS
Built-in Microphone2 built-in microphones, picking up sounds in the radius up to 5 m
IndicatorWhite: Working
CableType C to Type A interface (with type A to type C adapter on the cable)
Device InterfaceUSB Type C interface

General
Package Dimension166 mm × 96 mm × 75.5 mm (6.54″ × 3.78″ × 2.97″)
With Package WeightApprox. 536 g (1.18 lb.)
ColorWhite, black
Operating Conditions-10 °C to 45 °C (14 °F to 113°F). Humidity: 90% or less (non-condensing)
Power Supply5 VDC ± 5% (USB interface), max. 4.5 W
Dimension75.4 mm × 59.9 mm × 47.9 mm (2.97″ × 2.36″ × 1.89″)
WeightApprox. 109 g (0.24 lb.)
Packing List
tripod × 1

privacy cover × 1

USB 2.0 cable (2 m) × 1

Type C to Type A interface × 1

Multilingual Quick Start Guide × 1

QR code paper card for User Manual × 1
