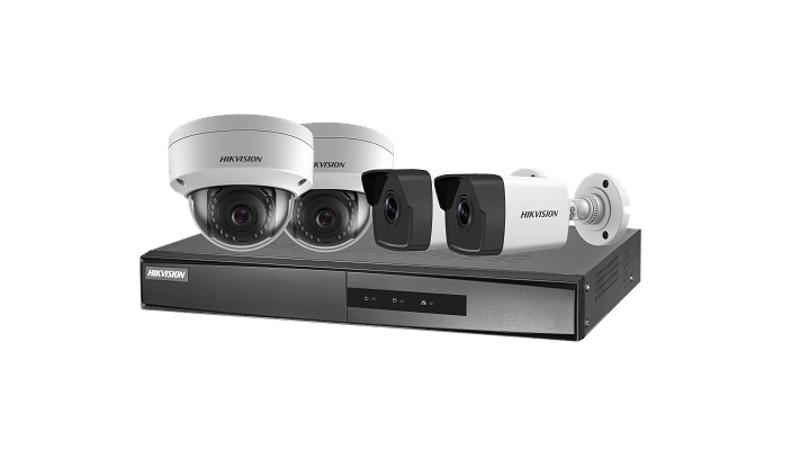

NK42E3H-1T(WD)

2MP Bullet/Dome PoE Kit

One pack provides everything required for small monitoring scenarios:One 4-channel PoE NVR with decoding up to 2-ch @ 1080p

Two 2 MP bullet and two 2 MP dome network cameras with efficient H.265+ compression technology

Five network cables and one HDMI cable

1 TB pre-installed West Digital HDD

Hik-Connect cloud service and app for remote management and viewing of devices

specification

Camera
Camera Case TypeBullet;Dome
Image Sensor1/2.8″ Progressive Scan CMOS
Min. Illumination0.028 Lux
Shutter Speed1/3 s to 1/100,000 s
Day &NightIR cut filter
WDRDWDR
Angle Adjustment
Bullet: Pan: 0° to 360°, tilt: 0° to 180°, rotation: 0° to 360°

Dome: Pan: 0° to 355°, tilt: 0° to 75°
Protection LevelIP67
Material
Bullet: Front cover: metal, back cover & bracket: plastic

Dome: Front cover: plastic, back cover & bracket: metal
Wi-Fi SupportNo

Camera/Lens
Focal Length2.8 mm
ApertureF2.0
FocusFixed
FOVHorizontal FOV: 114.8°, vertical FOV: 62°, diagonal FOV: 135.5°
Lens MountM12

Camera/IR
IR RangeUp to 30 m

Camera/Compression Standard
Video Compression H.265+;H.265;H.264+;H.264;MJPEG
H.264 TypeMain Profile/High Profile/Baseline Profile
H.264+Main Profile
H.265 TypeMain Profile
H.265+Main Profile
Video Bit Rate32 Kbps to 8 Mbps

Camera/Image
Max. Resolution2MP
Main Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720)

60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-stream
50 Hz: 25 fps (640 × 480, 640 × 360, 320 × 240)

60 Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)
Image SettingSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
Day/Night Switch Auto/Scheduled/Day/Night

Camera/Network
Alarm TriggerMotion detection, video tampering alarm, illegal login
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP
General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
ClientiVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500

Camera/Interface
Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
On-board StorageN/A
Audio I/ONo
Video OutNo
Alarm I/ONo
Reset ButtonNo

Camera/General
Power Supply12 VDC ± 25%, Φ 5.5 mm coaxial plug power, or PoE (802.3af, class 3)
Consumption
Bullet: 12 VDC, 0.3 A, Max: 3.5 W, or PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, Max: 4.5 W

Dome: 12 VDC, 0.4 A, Max: 5 W, or PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, Max: 6.5 W
Working Temperature-30 °C to 60 °C (-22 °F to 140 °F)
Working Humidity95% or less (non-condensing)
Dimension (W × D × H)
Bullet: Ø 70 mm × 172.7mm (2.8″ × 6.8″)

Dome: Ø 111 mm × 82.4 mm (4.4 × 3.2″)”
Weight
Bullet: Approx. 270 g (0.6 lb)

Dome: Approx. 400 g (0.9 lb)

NVR/Video and Audio
IP Video Input4-ch
Incoming/Outgoing Bandwidth40 Mbps/60 Mbps
HDMI/VGA Output1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

NVR/Decoding
Decoding FormatH.265+;H.265;H.264+;H.264
Capability2-ch@1080p/1-ch@4 MP

NVR/Network
Network Interface1, RJ45 10/100M Ethernet interface
Network ProtocolIPv6, UPnP™, NTP, SADP, DHCP
Remote Connection16

NVR/PoE
Interface4-ch
Power≤ 36 W
StandardIEEE 802.3 af/at

NVR/Auxiliary interface
SATA1
CapacityUp to 6 TB capacity for each disk
USB InterfaceRear panel: 2 × USB 2.0
Alarm In/OutNo

NVR/General
Power Supply48 VDC
Consumption (without HDD and PoE off)≤ 10 W
Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity10% to 90%
Dimension (W × D × H)265 × 225 × 48 mm (10.4″ × 8.9″ × 1.9″)
Weight (without hard disk)≤ 1 kg (2.2 lb)

Kit
Accessories
Power: 1 power cable

Network cable: 4 × 18.3 m (60 ft) video and power cable

HDMI cable: 1 HDMI cable
Hard DrivePre-installed 1 TB HDD
CertificationFCC, CE
Weight (with package)≤ 6.5 kg (14.3 lb)
