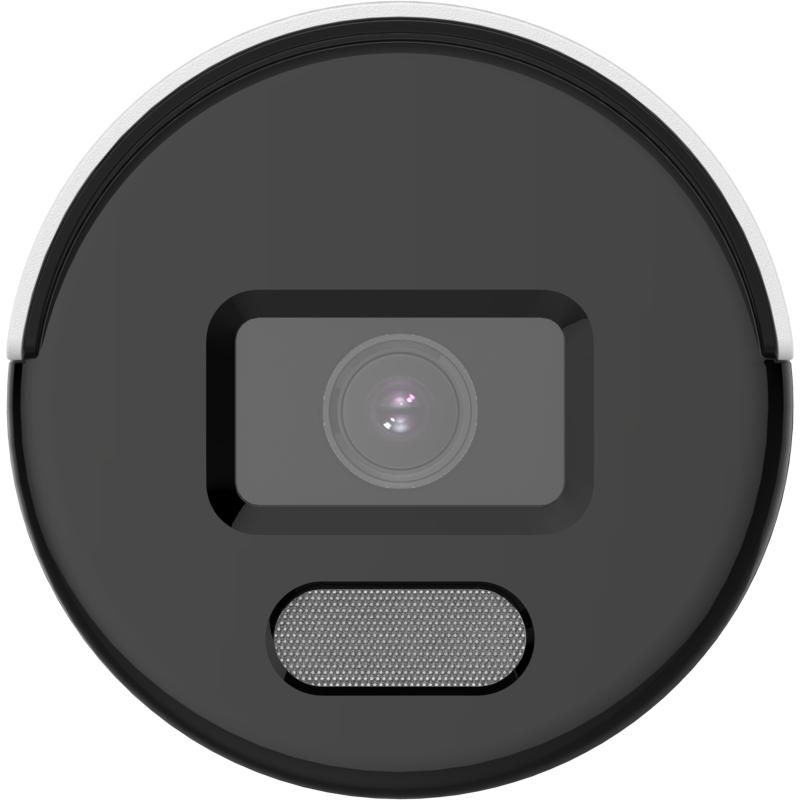

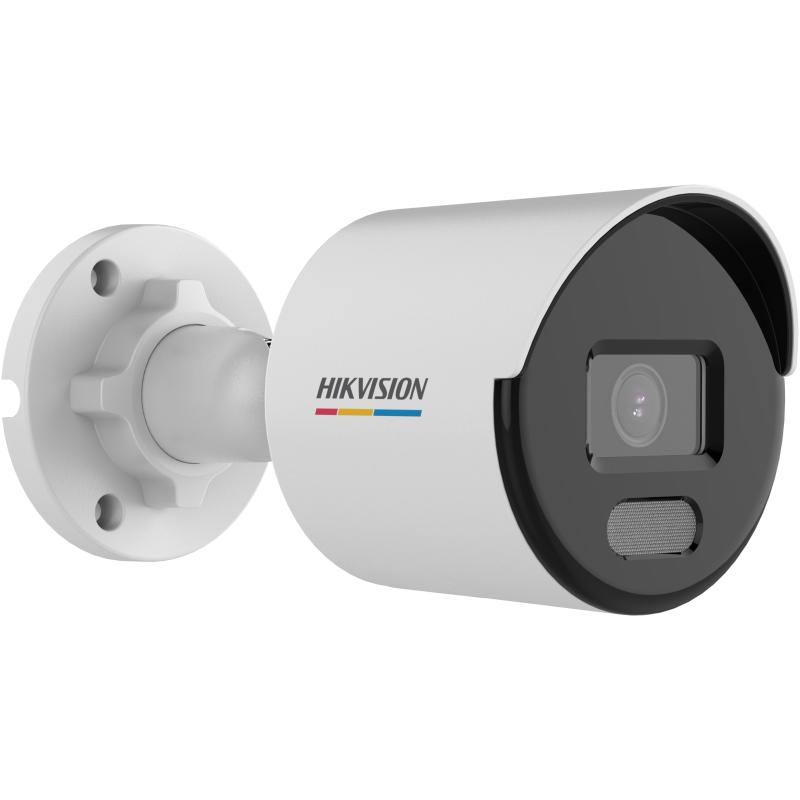

DS-2CD1027G2-L(UF)

2 MP ColorVu MD 2.0 Fixed Bullet Network Camera

  • High quality imaging with 2 MP resolution
  • 24/7 colorful imaging
  • Support Human and Vehicle Detection
  • Water and dust resistant (IP67)
  • Efficient H.265+ compression technology
  • Support on-board storage up to 256GB (SD card slot)(Optional)
  • Built-in microphone for real-time audio security(Optional)
  • specification

    • Camera
    • Image Sensor
      1/2.8″ Progressive Scan CMOS
    • Max. Resolution
      1920 × 1080
    • Min. Illumination
      Color: 0.001 Lux @ (F1.0, AGC ON),0 Lux with light
    • Shutter Time
      1/3 s to 1/100,000 s
    • Day & Night
      24/7 color imaging
    • Angle Adjustment
      Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
    • Lens
    • Lens Type
      Fixed focal lens, 2.8 and 4 mm optional
    • Focal Length & FOV

      2.8 mm, horizontal FOV: 106°, vertical FOV: 57°, diagonal FOV: 126°

      4 mm, horizontal FOV: 83°, vertical FOV: 44°, diagonal FOV: 99°

    • Lens Mount
      M12
    • Iris Type
      Fixed
    • Aperture
      F1.0
    • Depth of Field

      2.8 mm: 1.5 m to ∞

      4 mm: 2.1 m to ∞

    • DORI
    • DORI

      2.8 mm, D: 44 m, O: 17 m, R: 8 m, I: 4 m

      4 mm, D: 56 m, O: 22 m, R: 11 m, I: 5 m

    • Illuminator
    • Supplement Light Type
      White Light
    • Supplement Light Range
      Up to 30 m
    • Smart Supplement Light
      Yes
    • Video
    • Main Stream

      50 Hz: 25 fps (1920 × 1080, 1280 × 720)

      60 Hz: 30 fps (1920 × 1080, 1280 × 720)

    • Sub-Stream

      50 Hz: 25 fps (640 × 480, 640 × 360)

      60 Hz: 30 fps (640 × 480, 640 × 360)

    • Video Compression

      Main stream: H.265+/H.265/H.264+/H.264,

      Sub-stream: H.265/H.264/MJPEG

    • Video Bit Rate
      32 Kbps to 8 Mbps
    • H.264 Type
      Baseline Profile,Main Profile,High Profile
    • H.265 Type
      Main Profile
    • Bit Rate Control
      CBR,VBR
    • Region of Interest (ROI)
      1 fixed region(s) for main stream
    • Audio
    • Audio Type
      -U: Mono sound
    • Environment Noise Filtering
      -U: Yes
    • Audio Sampling Rate
      -U: 8 kHz/16 kHz
    • Audio Compression
      -U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
    • Audio Bit Rate
      -U: 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
    • Network
    • Protocols
      TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
    • Simultaneous Live View
      Up to 6 channels
    • API
      Open Network Video Interface (Profile S, Profile T, Profile G (only -U model supports)),ISAPI,SDK
    • User/Host

      Up to 32 users

      3 user levels: administrator, operator, and user

    • Security
      Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
    • Client
      iVMS-4200,Hik-Connect
    • Web Browser

      Plug-in required live view: IE 10, IE 11,

      Local service: Chrome 57.0+, Firefox 52.0+

    • Image
    • Wide Dynamic Range (WDR)
      DWDR
    • SNR
      ≥ 52 dB
    • Day/Night Switch
      Day,Night,Auto,Schedule
    • Image Enhancement
      BLC,HLC,3D DNR
    • Image Settings
      Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
    • Privacy Mask
      4 programmable polygon privacy masks
    • Interface
    • Ethernet Interface
      1 RJ45 10 M/100 M self-adaptive Ethernet port
    • On-Board Storage
      -F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
    • Built-in Microphone
      -U: Yes
    • Reset Key
      -F: Yes
    • Event
    • Basic Event
      Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
    • Linkage
      Upload to FTP/memory card (-F), notify surveillance center, send email, trigger recording (-F), trigger capture
    • General
    • Power

      12 VDC ± 25%, 0.4 A, max. 5 W,Ø5.5 mm coaxial power plug,

      PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W

    • Material
      Aluminum alloy body
    • Dimension

      Ø76.6 mm × 164.4 mm (Ø3 × 6.5″)”

    • Package Dimension
      234 mm × 120 mm × 117 mm (9.2″ × 4.7″ × 4.6″)
    • Weight

      -L: Approx. 405 g (0.9 lb.); -LUF: Approx. 425 g (0.9 lb.)

    • With Package Weight

      -L: Approx. 630 g (1.4 lb.); -LUF: Approx. 650 g (1.4 lb.)

    • Storage Conditions
      -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
    • Startup and Operating Conditions
      -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
    • Language
      English, Ukrainian
    • General Function
      Heartbeat,anti-banding,mirror,password protection,password reset via email
    • Approval
    • EMC

      FCC: 47 CFR Part 15, Subpart B,

      CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,

      RCM: AS/NZS CISPR 32: 2015,

      KC: KN32: 2015, KN35: 2015

    • Safety

      UL: UL 62368-1,

      CB: IEC 62368-1: 2014+A11,

      CE-LVD: EN 62368-1: 2014/A11: 2017,

      BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005

    • Environment

      CE-RoHS: 2011/65/EU,

      WEEE: 2012/19/EU,

      Reach: Regulation (EC) No 1907/2006

    • Protection
      IP67: IEC 60529-2013
