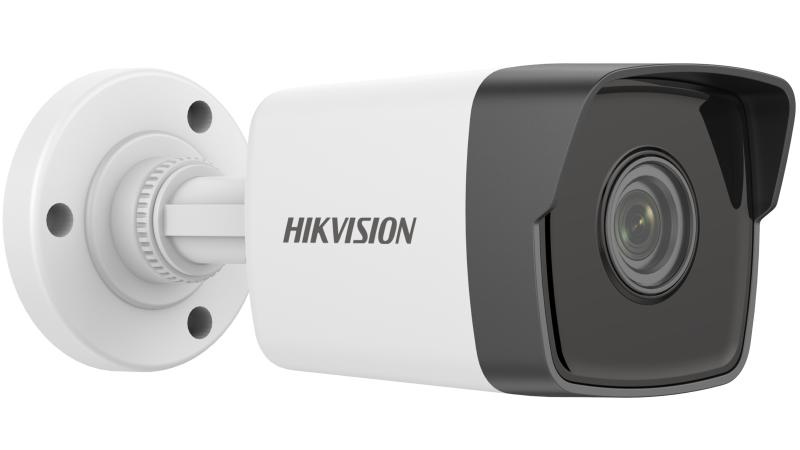

DS-2CD1053G0-I(UF)

5 MP Fixed Bullet Network Camera

  • High quality imaging with 5 MP resolution
  • Efficient H.265+ compression technology
  • Clear imaging even with strong back lighting due to 120 dB WDR
  • Water and dust resistant (IP67)
  • EXIR 2.0: advanced infrared technology with long IR range
  • -UF: Built-in microphone for real-time audio security
  • specification

    • Camera
    • Image Sensor1/2.7″ Progressive Scan CMOS
    • Max. Resolution2560 × 1920
    • Min. IlluminationColor: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR
    • Shutter Speed1/3 s to 1/100,000 s
    • Day & NightIR cut filter
    • Angle AdjustmentPan: 0° to 360°, tilt: 0° to180°, rotate: 0° to 360°
    • Lens
    • Lens TypeFixed focal lens, 2.8 and 4 mm optional
    • Focal Length & FOV

      2.8 mm, horizontal FOV 98.0°, vertical FOV 71.7°, diagonal FOV 127.0°

      4 mm, horizontal FOV 75.3°, vertical FOV 55.5°, diagonal FOV 98.2°

    • Lens MountM12
    • Iris TypeFixed
    • ApertureF2.0
    • Illuminator
    • Supplement Light TypeIR
    • Supplement Light RangeUp to 30 m
    • IR Wavelength850 nm
    • Video
    • Main Stream

      50 Hz: 20 fps (2560 × 1920)

      25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

      60 Hz: 20 fps (2560 × 1920)

      30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

    • Sub-Stream

      50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

      60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

    • Video Compression

      Main stream: H.265+/H.265/H.264+/H.264

      Sub-stream: H.265/H.264/MJPEG

    • Video Bit Rate32 Kbps to 16 Mbps
    • H.264 TypeBaseline Profile/Main Profile/High Profile
    • H.265 TypeMain profile
    • Region of Interest (ROI)1 fixed region for main stream
    • Audio
    • Audio Compression -UF: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
    • Audio Bit Rate-UF: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC)
    • Audio Sampling Rate-UF: 8 kHz/16 kHz
    • Environment Noise Filtering-UF: Yes
    • Network
    • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
    • Simultaneous Live ViewUp to 6 channels
    • APIOpen Network Video Interface, ISAPI
    • User/Host

      Up to 32 users. 3 levels: administrator, operator and user

      3 user levels: administrator, operator, and user

    • ClientiVMS-4200, Hik-Connect
    • Web Browser

      Plug-in required live view: IE 10+

      Plug-in free live view: Chrome 57.0+, Firefox 52.0+

      Local service: Chrome 57.0+, Firefox 52.0+

    • Image
    • Image SettingsSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
    • Day/Night SwitchAuto, Schedule, Day, Night
    • Wide Dynamic Range (WDR)120 dB
    • Image EnhancementBLC, 3D DNR
    • Interface
    • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
    • On-Board Storage-UF: Built-in memory card slot, support microSD card, up to 256 GB
    • Built-in Microphone-UF: Yes
    • Reset Key-UF: Yes
    • Event
    • Basic Event Motion detection, video tampering, exception
    • Linkage

      Upload to FTP, notify surveillance center, send email

      -UF also supports: upload to memory card, trigger recording, trigger capture

    • General
    • Power

      12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug

      PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W

    • Dimension177.6 mm × 67.8 mm ×66.2 mm (7″ × 2.7″ × 2.6″)
    • Package Dimension216 mm × 121 mm × 118 mm (8.5″ × 4.8″ × 4.6″)
    • WeightApprox. 270 g (0.6 lb.)
    • With Package WeightApprox. 481 g (1.1 lb.)
    • Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
    • Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
    • LanguageEnglish, Ukrainian
    • General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
    • Approval
    • EMC

      FCC SDoC: 47 CFR Part 15, Subpart B;

      CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011+A1: 2014;

      RCM: AS/NZS CISPR 32: 2015;

      IC VoC: ICES-003: Issue 7;

      KC: KN 32: 2015, KN 35: 2015

    • Safety

      UL: UL 62368-1;

      CB: IEC 62368-1:2014+A11;

      CE-LVD: EN 62368-1:2014/A11:2017;

      BIS: IS 13252(Part 1):2010/ IEC 60950-1: 2005

    • Environment

      CE-RoHS: 2011/65/EU;

      WEEE: 2012/19/EU;

      Reach: Regulation (EC) No 1907/2006

    • ProtectionIP67: IEC 60529-2013
