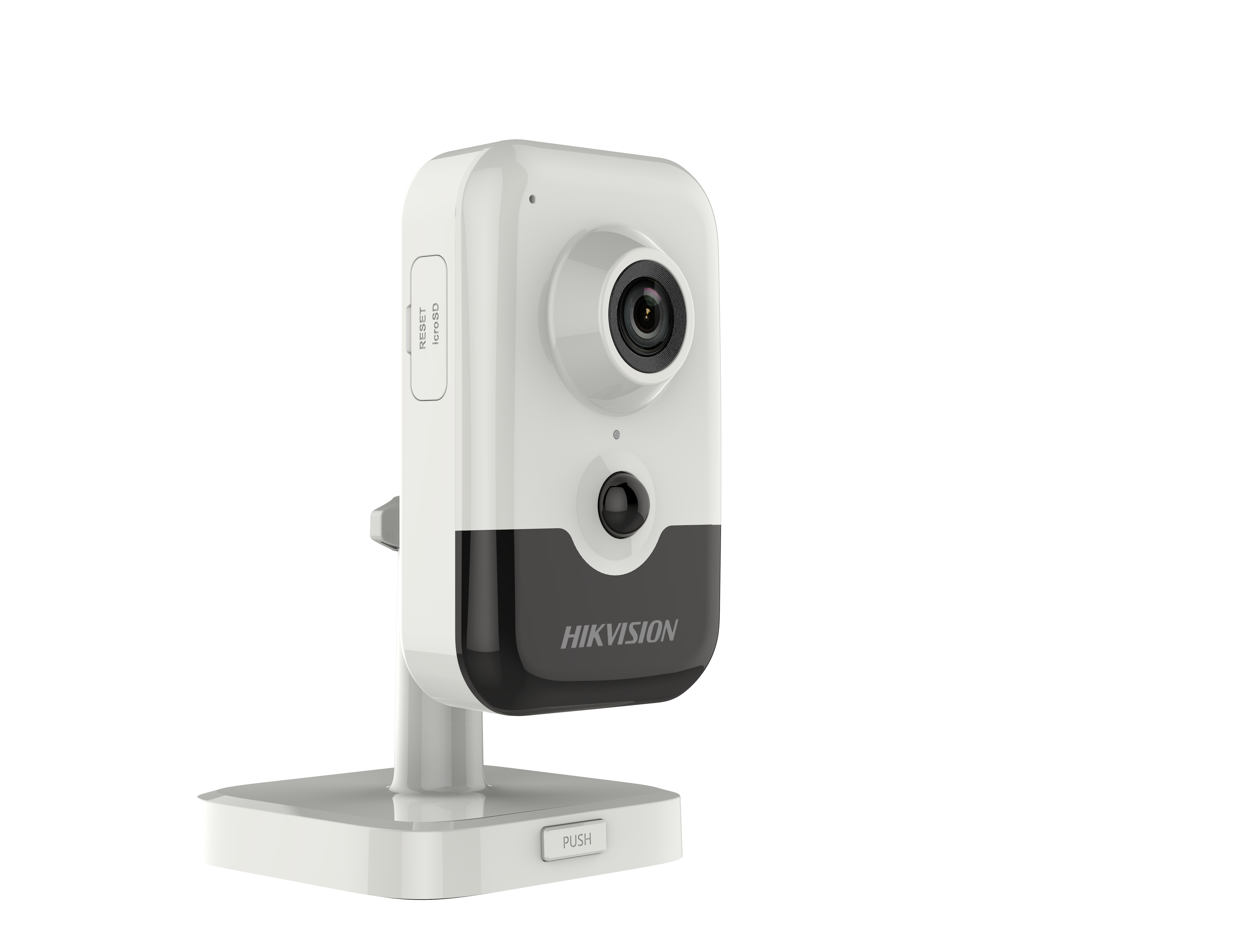

DS-2CD2421G0-I(D)(W)

2MP PIR Cube Network Camera

  • High quality imaging with 2 MP resolution
  • Efficient H.265+ compression technology
  • Provide real-time security via built-in two-way audio
  • Detect human body through passive infrared which is sensitive to body temperature (PIR)
  • specification

    • Camera
    • Image Sensor1/2.7″ Progressive Scan CMOS
    • Max. Resolution1920 × 1080
    • Min. Illumination

      2 mm: Color: 0.01 Lux @ (F2.25, AGC ON), B/W: 0 Lux with IR

      2.8 mm and 4 mm: Color: 0.01 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR

    • Shutter Time1/3 s to 1/100, 000 s
    • Day & NightIR cut filter
    • Angle AdjustmentPan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
    • Lens
    • Lens TypeFixed focal length, 2, 2.8, and 4 mm optional
    • Focal Length & FOV

      2 mm, horizontal FOV 137.2°, vertical FOV 80.1°, diagonal FOV 157.4°

      2.8 mm, horizontal FOV 113.4°, vertical FOV 59.8°, diagonal FOV 135.6°

      4 mm, horizontal FOV 91.5°, vertical FOV 46.1°, diagonal FOV 109.8°

    • Aperture

      2 mm: F2.25

      2.8 mm: F1.6

      4 mm: F1.6

    • Iris TypeFixed
    • Lens MountM12
    • DORI
    • DORI

      2 mm: D: 30.3 m, O: 12.0 m, R: 6.1 m, I: 3.0 m

      2.8 mm: D: 37.3 m, O: 14.8 m, R: 7.5 m, I: 3.7 m

      4 mm: D: 52.9 m, O: 21.0 m, R: 10.6 m, I: 5.3 m

    • Illuminator
    • Supplement Light RangeUp to 10 m
    • IR Wavelength850 nm
    • Smart Supplement LightYes
    • Video
    • Main Stream

      50 Hz: 25 fps (1920 × 1080, 1280 × 720)

      60 Hz: 30 fps (1920 × 1080, 1280 × 720)

    • Sub-Stream

      50 Hz: 25 fps (640 × 480, 640 × 360)

      60 Hz: 30 fps (640 × 480, 640 × 360)

    • Video Compression

      Main stream: H.265+/H.265/H.264+/H.264

      Sub-stream: H.265/H.264/MJPEG

    • Video Bit Rate32 Kbps to 8 Mbps
    • H.264 TypeBaseline Profile/Main Profile/High Profile
    • H.265 TypeMain Profile
    • Bit Rate ControlCBR/VBR
    • Scalable Video Coding (SVC)

      Yes

    • Region of Interest (ROI)1 fixed region for main stream
    • Audio
    • Environment Noise FilteringYes
    • Audio Sampling Rate8 kHz/16 kHz
    • Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
    • Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC)
    • Network
    • Simultaneous Live ViewUp to 6 channels
    • APIOpen Network Video Interface, ISAPI
    • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X(-W model does not support), QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS, SNMP, PPPoE
    • User/HostUp to 32 users. 3 levels: administrator, operator and user
    • SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
    • ClientiVMS-4200, Hik-Connect
    • Web Browser

      Plug-in required live view: IE 10+

      Plug-in free live view: Chrome 57.0+, Firefox 52.0+

      Local service: Chrome 57.0+, Firefox 52.0+

    • Wi-Fi
    • Encryption Mode-IW: 64/128-bit WEP, WPA-EAP/WPA2-EAP, WPA-PSK/WPA2-PSK
    • Wi-Fi Protocol

      -IW:

      802.11b: CCK, QPSK, BPSK

      802.11g/n: OFDM

    • Frequency Range

      -IW:

      2.412 GHz – 2.472 GHz

    • Channel Bandwidth

      -IW:

      20/40 MHz

    • Modulation

      -IW:

      802.11b: CCK, QPSK, BPSK

      802.11g/n: OFDM

    • Transfer Rate

      -IW:

      11b/g: 54 Mbps

      11n: up to 150 Mbps

    • Wireless Range-IW: Up to 50 m (The performance varies based on actual environment)
    • Image
    • Wide Dynamic Range (WDR)120 dB
    • Day/Night SwitchDay, Night, Auto, Schedule
    • Image EnhancementBLC, 3D DNR
    • Image SettingsSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser.
    • Transducer
    • PIR AngleHorizontal: 90°, vertical: 80°
    • PIR RangeUp to 8 m
    • Interface
    • Built-in MicrophoneYes
    • Built-in SpeakerPower: 1 W. Max. sound pressure level: 10 cm: 91 dB.
    • On-Board StorageBuilt-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
    • Reset KeyYes
    • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
    • Event
    • Basic Event Motion detection, video tampering alarm, exception
    • Smart EventLine crossing detection, intrusion detection
    • LinkageUpload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning
    • General
    • Power

      -I:

      12 VDC ± 25%, 0.49 A, max. 5.8 W, Ø5.5 mm coaxial power plug

      PoE: 802.3af, Class 3, 36 V to 57 V, 0.19 A to 0.12 A, max. 6.8 W

      -IW:

      12 VDC ± 25%, 0.66 A, max. 7.9 W, Ø5.5 mm coaxial power plug

      PoE: 802.3af, Class 3, 36 V to 57 V, 0.25 A to 0.16 A, max. 8.9 W

    • Language

      33 languages

      English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

    • General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
    • Storage Conditions-10 °C to 40 °C (14 °F to 104 °F). Humidity 95% or less (non-condensing)
    • Startup and Operating Conditions-10 °C to 40 °C (14 °F to 104 °F). Humidity 95% or less (non-condensing)
    • Dimension

      2 mm: 102.9 mm × 65.2 mm × 28.8 mm (4.1″ × 2.6″ × 1.1″)

      2.8 mm and 4 mm: 102.9 mm × 65.2 mm × 32.6 mm (4.1 × 2.6″ × 1.3″)”

    • Package Dimension150 mm × 125 mm × 99 mm (5.9″ × 4.9″ × 3.9″)
    • WeightApprox. 115 g (0.3 lb.)
    • With Package WeightApprox. 330 g (0.7 lb.)
    • Approval
    • EMC

      FCC (47 CFR Part 15, Subpart B)

      CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014)

    • RF

      -IW:

      FCC ID (FCC Part 15.247(BT or 2.4G));

      CE-RED (EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1(BT or 2.4G); EN 300328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G))

    • Safety

      CB (IEC 62368-1: 2014+A11)

      CE-LVD (EN 62368-1: 2014/A11: 2017)

    • Environment

      CE-RoHS (2011/65/EU);

      WEEE (2012/19/EU);

      Reach (Regulation (EC) No 1907/2006)
