DS-2CE5AD0T-VPIT3F

Name: DS-2CE5AD0T-VPIT3F - ACTVISION
SKU: 1689140056-9

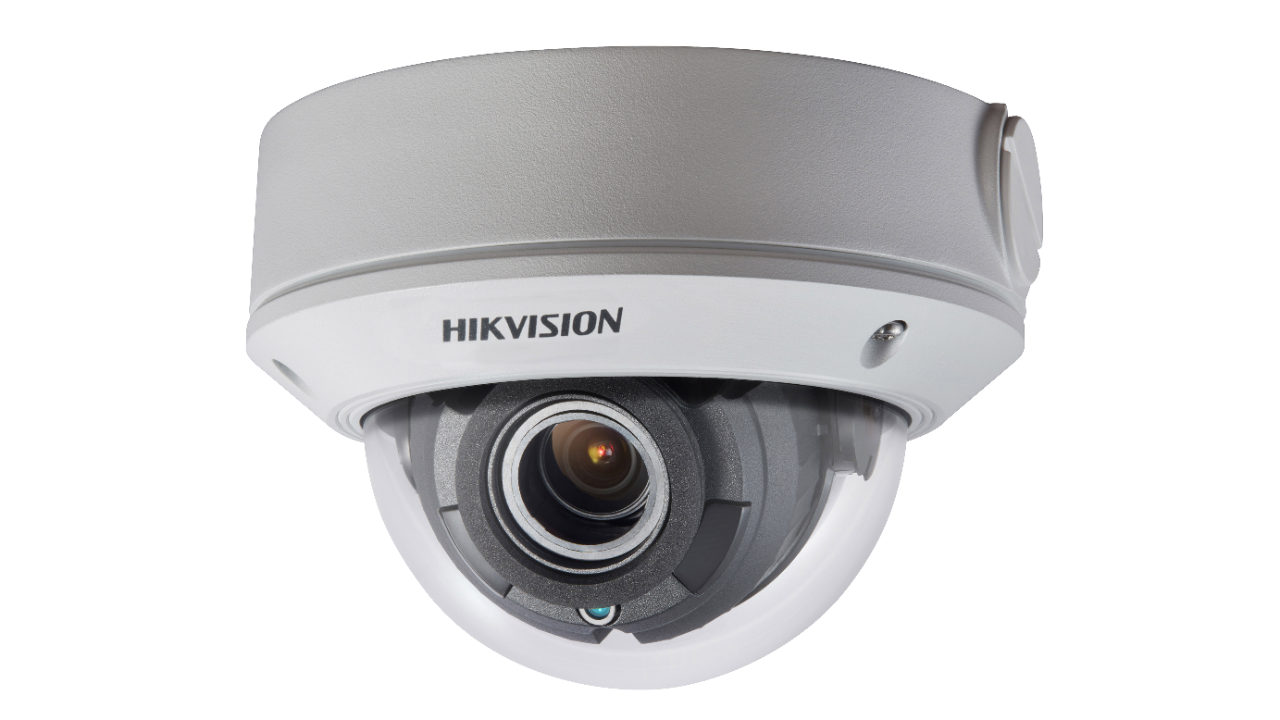

2 MP Vandal Manual Varifocal Dome Camera

2 MP varifocal dome camera

2.8 mm to 12 mm varifocal lens

Up to 40 m IR distance for bright night imaging

Water and dust resistant (IP66) and vandal resistant (IK10)

One port for four switchable signals (TVI/AHD/CVI/CVBS)

specification

Camera
Image Sensor2 MP CMOS
Max. Resolution1920 (H) ? 1080 (V)
Min. IlluminationColor: 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Day & NightIR Cut Filter
Angle AdjustmentPan: 0? to 355?, Tilt: 0? to 70?, Rotation: 0? to 355?
Signal SystemPAL/NTSC

Lens
Lens Type2.8 mm to 12 mm vari-focal lens
Focal Length & FOV
Horizontal FOV: 102.25 ? to 32 ?
Lens Mount?14

Illuminator
Supplement Light TypeIR
Supplement Light RangeIR Distance: Up to 40 m

Image SettingsBrightness;Sharpness;Mirror;AGC
Frame Rate
PAL: 1080p@25fps

NTSC: 1080p@30fps
Day/Night ModeAuto/Color/BW (Black and White)
Wide Dynamic Range (WDR)Digital WDR
Image EnhancementBLC
Noise Reduction2D DNR

Interface
Video OutputSwitchable TVI/AHD/CVI/CVBS;1 HD analog output

General
Power12 VDC ? 25%, max. 4 W
MaterialMetal
Dimension? 141 mm ? 99.9 mm (? 5.55″ ? 3.93″ )
WeightApprox. 800 g (1.76 lb.)
Operating Condition-40 ?C to 60 ?C (-40 ?F to 140 ?F), Humidity 90% or less (non-condensation)
CommunicationHIKVISION-C
LanguageEnglish

Approval
ProtectionIP67, IK10
