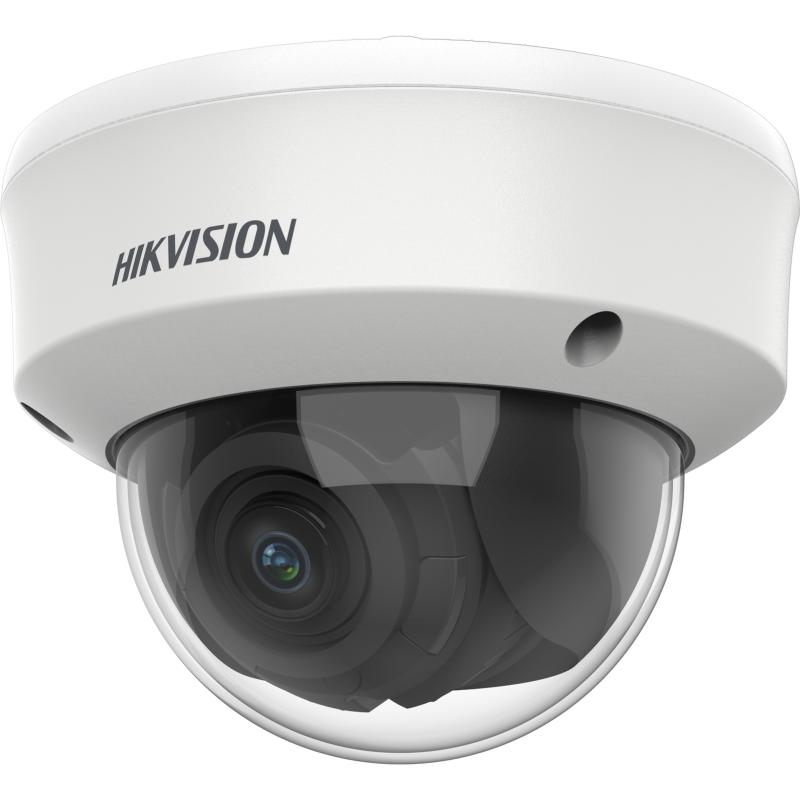

DS-2CE5AD0T-VPIT3F(C)

2 MP Vandal Manual Varifocal Dome Camera

High quality imaging with 2 MP, 1920 × 1080 resolution

2.7 mm to 13.5 mm varifocal lens

Up to 40 m IR distance for bright night imaging

One port for four switchable signals (TVI/AHD/CVI/CVBS)

Water and dust resistant (IP67) and vandal resistant (IK10)

specification

Camera
Image Sensor2 MP CMOS
Signal SystemPAL/NTSC
Resolution1920 (H) × 1080 (V)
Frame Rate
TVI: 1920 × 1080 @ 30 fps, 1080P @ 25 fps

AHD: 1920 × 1080 @ 30 fps, 1080P @ 25 fps

CVI: 1920 × 1080 @ 30 fps, 1080P @ 25 fps

CVBS: PAL/NTSC
Min. Illumination0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Lens2.7 mm to 13.5 mm varifocal lens
Field of View
Horizontal FOV: 100° to 30°, vertical FOV: 52° to 17°, diagonal FOV: 116° to 34.5°
Lens MountΦ14
Day & NightColor&ICR
WDR (Wide Dynamic Range)Digital WDR
Angle AdjustmentPan: 0° to 355°, Tilt: 0° to 75°, Rotation: 0° to 355°

Day/Night ModeAuto/Color/BW (Black and White)
Image ModeSTD/HIGH-SAT
AGCYes
White BalanceAuto/Manual
AE (Auto Exposure) ModeBLC;HLC;Global;DWDR
Noise Reduction2D DNR
LanguageEnglish
FunctionBrightness;Contrast;Smart IR;Sharpness;Saturation;Mirror

Interface
Video OutputSwitchable TVI/AHD/CVI/CVBS

General
IR RangeUp to 40 m
Operating Conditions-40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing)
Power Supply
12 VDC ± 15%
ConsumptionMax. 5 W
Protection LevelIP67, IK10
MaterialFront cover: Metal, Main body: Plastic
CommunicationHIKVISION-C
DimensionØ 143 mm × 106.7 mm ( Ø 5.62″ × 4.19″)
WeightApprox. 630 g (1.39 lb.)
