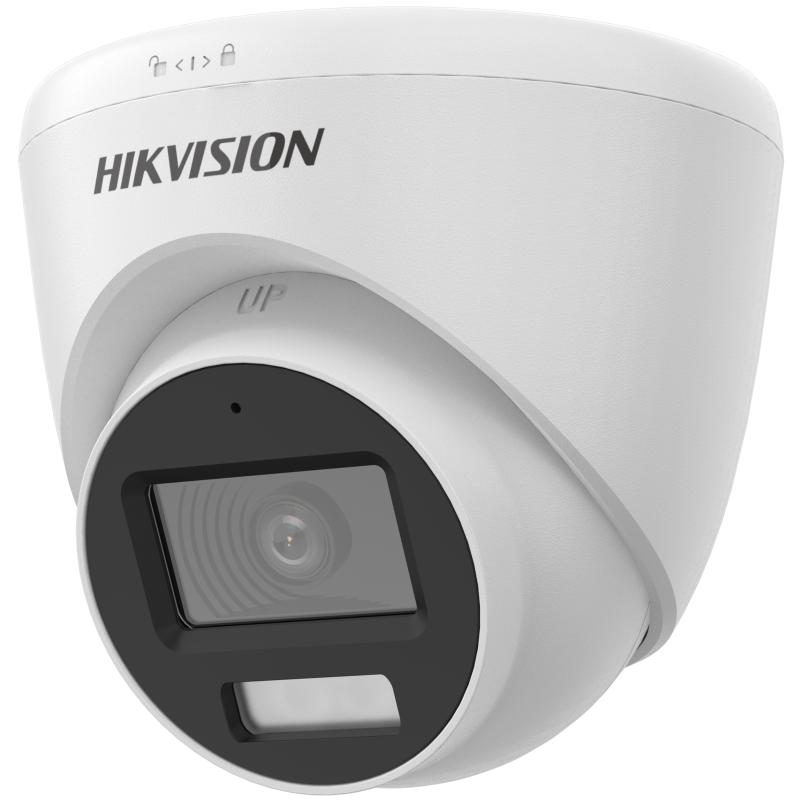

DS-2CE78D0T-LFS

2MP Smart Hybrid Light Audio Fixed Turret Camera

High quality imaging with 2 MP, 1920×1080 resolution

Fixed focal lens, 2.8 mm and 3.6 mm optional

Up to 40 m IR distance for bright night imaging

Up to 20 m white light distance for bright night imaging

One port for four switchable signals (TVI/AHD/CVI/CVBS）

Water and dust resistant (IP67)

High quality audio with audio over coaxial cable, built-in mic

specification

Camera
Image Sensor2 MP CMOS
Max. Resolution1920 (H) × 1080 (V)
Min. Illumination0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter TimePAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
Day & NightICR
Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°
Signal SystemPAL/NTSC

Lens
Lens TypeFixed focal lens, 2.8 mm and 3.6 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV: 100°, vertical FOV: 55°, diagonal FOV: 116°

3.6 mm, horizontal FOV: 80°, vertical FOV: 43°, diagonal FOV: 95°
Lens MountM12

Illuminator
Supplement Light TypeWhite Light;IR
Supplement Light Range
IR : Up to 40 m

White Light : Up to 20 m

Image SettingsBrightness, Sharpness, Smart IR
Frame Rate
TVI: 1080P@30fps, 1080P@25fps

AHD: 1080P@30fps, 1080P@25fps

CVI: 1080P@30fps, 1080P@25fps

CVBS: PAL/NTSC
Day/Night ModeIR/White Light
Wide Dynamic Range (WDR)Digital WDR
Image EnhancementYes
White BalanceAuto/Manual
AGCYes

Interface
Video OutputSwitchable TVI/AHD/CVI/CVBS

General
Material
Body: Metal

Enclosure: Metal
Dimension 97.9 mm × Ø110 mm (3.85″ × Ø4.33″)
Weight Approx. 340 g (0.75 lb.)
Operating Condition-40 °C to 60 °C (-40 °F to 140 °F). Humidity: 90% or less (non-condensation)
CommunicationHIKVISION-C
LanguageEnglish
Power Supply
12 VDC ± 25%

*You are recommended to use one power adapter to supply the power for one camera.
ConsumptionMax. 3.5 W

Approval
ProtectionIP67
