DS-2CE5AH0T-AVPIT3ZF(C)

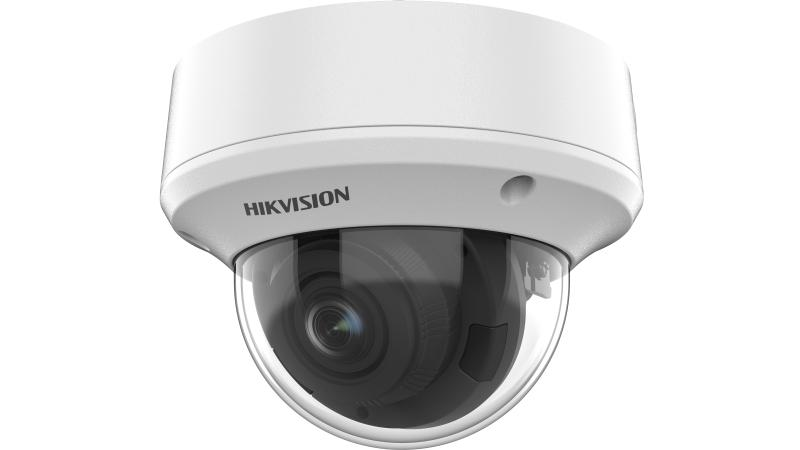

5 MP Vandal Motorized Varifocal Dome Camera

High quality imaging with 5 MP, 2560 × 1944 resolution

2.7 mm to 13.5 mm motorized varifocal lens

Up to 40 m IR distance for bright night imaging

One port for four switchable signals (TVI/AHD/CVI/CVBS)

Water and dust resistant (IP67) and vandal resistant (IK10)

specification

Camera
Image Sensor5 MP CMOS
Signal SystemPAL/NTSC
Resolution2560 (H) × 1944 (V)
Frame Rate
TVI: 5 M @ 20 fps, 4 M @ 30 fps, 4 M @ 25 fps, 1080p @ 30 fps, 1080p @ 25 fps

AHD: 5 M @ 20 fps, 4 M @ 30 fps, 4 M @ 25 fps

CVI: 4 M @ 30 fps, 4 M @ 25 fps

CVBS: PAL/NTSC
Min. Illumination0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Lens2.7 mm to 13.5 mm motorized varifocal lens
Field of Viewhorizontal FOV: 95° to 26°, vertical FOV: 72° to 20°, diagonal FOV: 126° to 33°
Lens MountΦ14
Day & NightIR Cut Filter
WDR (Wide Dynamic Range)Digital WDR
Angle AdjustmentPan: 0° to 355°, Tilt: 0° to 75°, Rotation: 0° to 355°

Day/Night ModeAuto/Color/BW (Black and White)
Image ModeSTD/HIGH-SAT
AGCYes
White BalanceAuto/Manual
AE (Auto Exposure) ModeBLC;HLC;Global;DWDR
Noise Reduction2D DNR
LanguageEnglish
FunctionSharpness;Brightness;Smart IR

Interface
Video OutputSwitchable TVI/AHD/CVI/CVBS

General
IR RangeUp to 40 m
Operating Conditions-40°C to 60°C (-40°F to140°F), Humidity: 90% or less (non-condensing)
Power Supply
12 VDC±15%, 24 VAC±15%
ConsumptionMax 5.9 W
Protection Level IP67, IK10
MaterialMetal
CommunicationHIKVISION-C
DimensionØ145 mm × 111.3 mm (5.69″ × 4.37″)
WeightApprox. 837 g (1.85 lb.)
