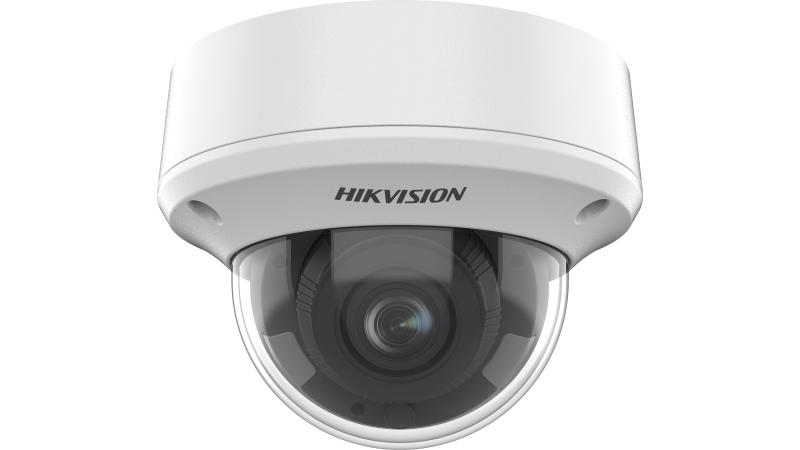

DS-2CE5AH8T-AVPIT3ZF

5 MP Ultra Low Light Vandal Motorized Varifocal Dome Camera

5 MP high performance dome camera

Strong night performance, capturing images in ultra-low light down to 0.003 lux

Clear imaging even against strong back lighting due to 130 dB true WDR technology

3D DNR technology delivers clean and sharp images

Lens focuses automatically when zooming in or out

EXIR 2.0, advanced infrared technology with 60 m IR distance

Water and dust resistant (IP67) and vandal proof (IK10)

4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)

specification

Camera
Image Sensor5 MP CMOS
Max. Resolution2560 (H) × 1944 (V)
Min. IlluminationColor: 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Day & NightIR Cut Filter
Angle AdjustmentPan: 0° to 355°; Tilt: 0° to 75°; Rotate: 0° to 355°
Signal SystemPAL/NTSC

Lens
Lens Type2.7 mm to 13.5 mm motorized varifocal lens
Focal Length & FOVhorizontal FOV: 92.3° to 29.3°
Lens MountΦ14

Illuminator
Supplement Light TypeIR
Supplement Light RangeUp to 60 m
Smart Supplement LightYes

Image SettingsBrightness;Sharpness;Mirror;Smart IR;AGC
Frame Rate
TVI: 2 MP@25fps, 2 MP@30fps, 4 MP@25fps, 4 MP@30fps, 5 MP@20fps

AHD: 4 MP@25fps, 4 MP@30fps, 5 MP@20fps

CVI: 4 MP@25fps, 4 MP@30fps

CVBS: PAL, NTSC
Day/Night ModeAuto/Color/BW (Black and White)
Wide Dynamic Range (WDR)≥130 dB
Image EnhancementWDR;BLC
Privacy Mask4 programmable privacy masks
Noise Reduction3D DNR
White BalanceAuto/Manual

Interface
Video Output1 HD analog output;Switchable TVI/AHD/CVI/CVBS

Event
Motion Detection4 programmable motion areas

General
Power9.6 VDC to 14.4 VDC; 19.2 VAC to 28.8 VAC, max. 8 W
MaterialMetal
DimensionΦ 145 mm × 111.3 mm (Φ 5.70″ × 4.37″)
WeightApprox. 830 g (1.83 lb.)
Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensing)
CommunicationHIKVISION-C
LanguageEnglish

Approval
ProtectionIP67, IK10
