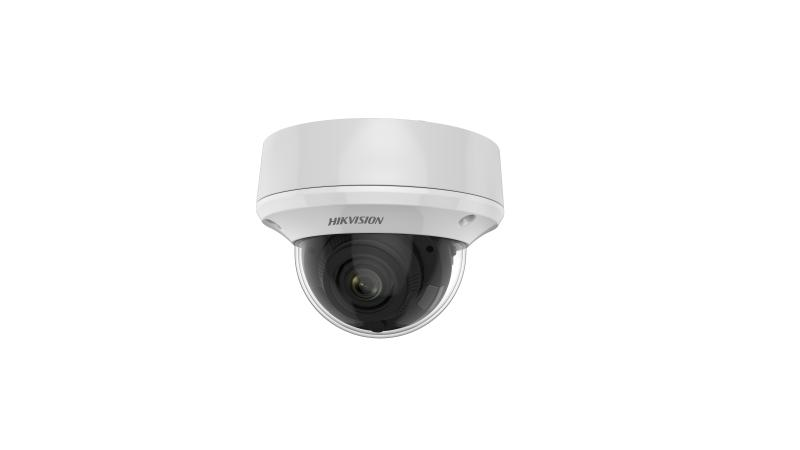

DS-2CE5AU7T-AVPIT3ZF

4K Ultra Low Light Vandal Motorized Varifocal Dome Camera

5 MP high performance dome camera

Strong night performance, capturing images in ultra-low light down to 0.003 lux

Clear imaging even against strong back lighting due to 130 dB true WDR technology

3D DNR technology delivers clean and sharp images

Lens focuses automatically when zooming in or out

EXIR 2.0: advanced infrared technology with 60 m IR distance

Water and dust resistant (IP67) and vandal proof (IK10)

4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)

specification

Camera
Image Sensor8.29 megapixel progressive scan CMOS
Max. Resolution3840 (H) × 2160 (V)
Min. IlluminationColor: 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter TimePAL: 1/12.5 s to 1/50,000 s;NTSC: 1/15 s to 1/50,000 s
Day & NightIR Cut Filter
Angle AdjustmentPan: 0° to 355°, Tilt: 0° to 75°, Rotate: 0° to 355°
Signal SystemPAL/NTSC

Lens
Lens Type
2.7 mm to 13.5 mm motorized varifocal lens
Focal Length & FOV108.1° to 45.6°
Lens MountΦ14

Illuminator
Supplement Light TypeIR
Supplement Light RangeUp to 60 m
Smart Supplement LightYes

Image SettingsBrightness;Sharpness;Mirror;Smart IR;AGC
Frame Rate
TVI: 8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps,

2MP@30fps

CVI: 8MP@12.5fps, 8MP@15fps

AHD: 8MP@12.5fps, 8MP@15fps

CVBS: 960H P/N
Day/Night ModeAuto/Color/BW (Black and White)
Wide Dynamic Range (WDR)≥130 dB
Image EnhancementBLC;WDR
Noise Reduction3D DNR
White BalanceAuto/Manual

Interface
Video OutputSwitchable TVI/AHD/CVI/CVBS;1 HD analog output

General
Power9.6 VDC to 14.4 VDC; 19.2 VAC to 28.8 VAC, max. 8.2 W
MaterialMetal
DimensionØ 145 mm × 111.3 mm (Ø 5.69″ × 4.37″)
WeightApprox. 860 g (1.90lb.)
Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
CommunicationHIKVISION-C

Approval
ProtectionIP67, IK10
