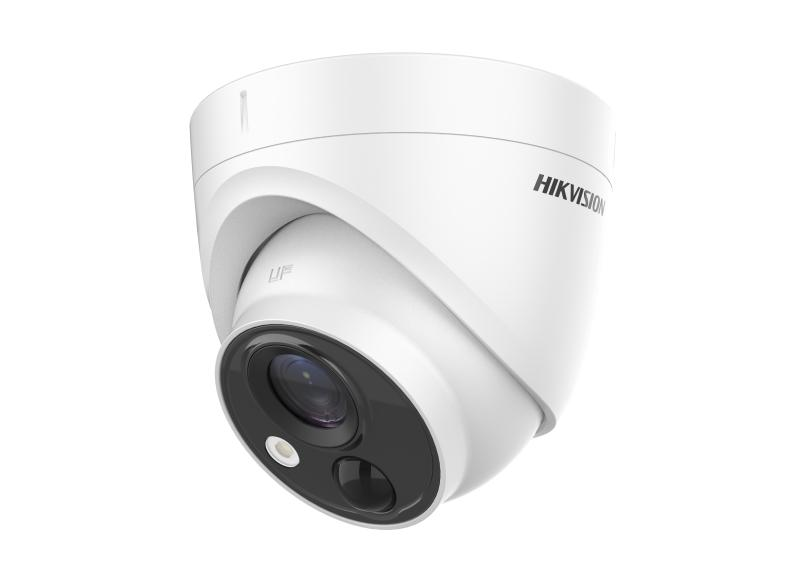

DS-2CE71H0T-PIRLO

5 MP PIR Fixed Turret Camera

5 MP PIR turret camera

PIR detection, strobe light alarm and alarm out to warn off intruders in real time

EXIR 2.0: advanced infrared technology with 20 m IR distance

Water and dust resistant (IP67)

specification

Camera
Image Sensor5 MP CMOS image sensor
Max. Resolution2560 (H) × 1944 (V)
Min. Illumination0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/20 s to 1/50,000 s

NTSC: 1/20 s to 1/50,000 s
Day & NightICR
Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°
Signal SystemPAL/NTSC
Light AlarmYes

Lens
Lens Type2.8 mm, 3.6 mm fixed lens
Focal Length & FOV
2.8 mm, horizontal FOV: 85.5°, vertical FOV: 63.8°, diagonal FOV: 110.7°

3.6 mm, horizontal FOV: 80.1°, vertical FOV: 63.8°, diagonal FOV: 105.9°
Lens MountM12

Image Parameters SwitchSTD/HIGH-SAT
Image SettingsBrightness, Sharpness, DNR , Mirror, Smart IR
Frame RateTVI: 5 MP@20fps, 4 MP@25fps, 4 MP@30fps, 1080P@25fps, 1080P@30fps
Day/Night ModeAuto/Color/BW (Black and White)
White BalanceAuto/Manual
White LightAUTO/OFF
AGCSupport

Interface
Video Output1 HD analog output

General
Material
Enclosure: Plastic

Main body: Metal
DimensionΦ 109.8 mm × 89.75 mm (Φ 4.32″ × 3.53″)
WeightApprox. 327 g (0.72 lb.)
Operating Condition‘-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
CommunicationHIKVISION-C
LanguageEnglish
Power Supply12 VDC ± 25%
ConsumptionMax. 3.5 W
IR RangeUp to 20 m

Approval
ProtectionIP67
