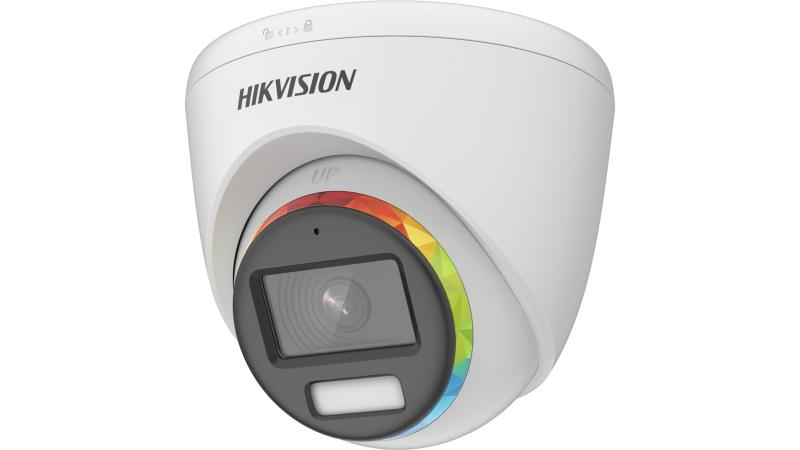

DS-2CE72DF8T-FSLN

2 MP ColorVu Audio Fixed Turret Camera

High quality imaging with 2 MP, 1920 × 1080 resolution

24/7 color imaging with F1.0 aperture

Clear imaging against strong back light due to 130 dB true WDR technology

3D DNR technology delivers clean and sharp images

2.8 mm, 3.6 mm fixed focal lens

Up to 40 m white light distance for bright night imaging

High quality audio with audio over coaxial cable, built-in mic

One port for four switchable signals (TVI/AHD/CVI/CVBS)

Water and dust resistant (IP67)

specification

Camera
Image Sensor2 MP CMOS
Max. Resolution1920 (H) × 1080 (V)
Min. Illumination0.0003 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Day & Night24/7 Color Imaging
Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
Signal SystemPAL/NTSC
Slow ShutterMax. 16 times

Lens
Lens TypeFixed focal lens, 2.8 mm and 3.6 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV: 106°, vertical FOV: 56°, diagonal FOV: 129°

3.6 mm, horizontal FOV: 83°, vertical FOV: 44°, diagonal FOV: 100°
Lens MountM12

Illuminator
Supplement Light RangeUp to 40 m
Smart Supplement LightYes
Supplement Light TypeWhite Light

Image Parameters SwitchSTD/HIGH-SAT/HIGHLIGHT
Image SettingsBrightness, Contrast, Mirror, Sharpness, Smart Light, Anti-Banding, AGC
Frame Rate
TVI: 1080p @ 25 fps/30 fps

CVI: 1080p @ 25 fps/30 fps

AHD: 1080p @ 25 fps/30 fps

CVBS: PAL/NTSC
Day/Night ModeColor
Wide Dynamic Range (WDR)≥130 dB
Image EnhancementBLC, HLC, Global, HLS
Privacy Mask4 programmable privacy masks
Noise Reduction3D DNR/2D DNR
White BalanceAuto

Interface
Video OutputSwitchable TVI/AHD/CVI/CVBS
AlarmSolid Light Alarm (White Light)
AudioLine-in
Built-in MicrophoneYes

Event
Motion Detection4 programmable motion areas

General
Power
12 VDC ± 25%, max. 6.3 W

*You are recommended to use one power adapter to supply the power for one camera.
MaterialMain body: Metal, Enclosure: Plastic
DimensionΦ 109.98 mm × 98.27 mm (Φ 4.33″ × 3.87″)
WeightApprox. 350 g (0.77 lb.)
Operating Condition-40°C to 60°C (-40°F to 140°F), humidity: 90% or less (non-condensing)
CommunicationHIKVISION-C
LanguageEnglish

Approval
ProtectionIP67
