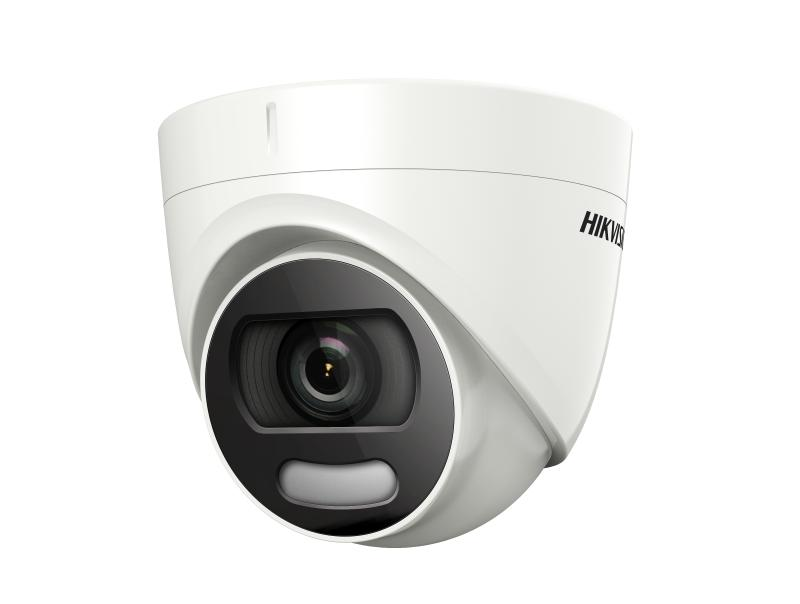

DS-2CE72HFT-E

5 MP ColorVu PoC Fixed Turret Camera

  • High quality imaging with 5 MP, 2560 × 1944 resolution
  • 24/7 color imaging
  • Clear imaging against strong back light due to 130 dB true WDR technology
  • 3D DNR technology delivers clean and sharp images
  • 2.8 mm, 3.6 mm fixed focal lens
  • Smart Light, up to 20 m white light distance
  • Water and dust resistant (IP67)
  • specification

    • Camera
    • Image Sensor5 MP CMOS
    • Max. Resolution2560 (H) × 1944 (V)
    • Min. Illumination0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
    • Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
    • Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
    • Signal SystemPAL/NTSC
    • Lens
    • Lens Type2.8 mm, 3.6 mm fixed focal lens
    • Focal Length & FOV

      2.8 mm, horizontal FOV: 99.7°, vertical FOV: 72°, diagonal FOV: 139.8°

      3.6 mm, horizontal FOV: 80.1°, vertical FOV: 58.6°, diagonal FOV: 106.2°

    • Lens MountM16
    • Illuminator
    • Supplement Light TypeWhite Light
    • Supplement Light RangeUp to 20 m
    • Smart Supplement LightYes
    • Image
    • Image Parameters SwitchSTD/HIGH-SAT
    • Image SettingsBrightness;Sharpness;Mirror;AGC;Anti-Banding
    • Frame Rate5 MP @ 20 fps, 4 MP @ 30 fps, 4 MP @ 25 fps, 1080p @ 30 fps, 1080p @ 25 fps
    • Day/Night ModeColor
    • Wide Dynamic Range (WDR)≥130 dB
    • Image EnhancementBLC;HLC;Global;HLS
    • Noise Reduction3D DNR/2D DNR
    • White BalanceAuto/Manual
    • Interface
    • Video Output1 HD analog output
    • AlarmSolid Light Alarm (White Light)
    • General
    • Power

      12 VDC±25%/PoC.af, max. 4 W

      *You are recommended to use one power adapter for one camera, and use 2-pin power supply for long-distance power supply.

    • MaterialMain body: Metal, Enclosure: Plastic
    • DimensionΦ 109.82 mm × 85.56 mm (4.32″ × 3.37″)
    • WeightApprox. 350 g (0.77 lb.)
    • Operating Condition-40°C to 60°C (-40°F to140°F), Humidity: 90% or less (non-condensing)
    • CommunicationHIKVISION-C
    • LanguageEnglish
    • Approval
    • ProtectionIP67
