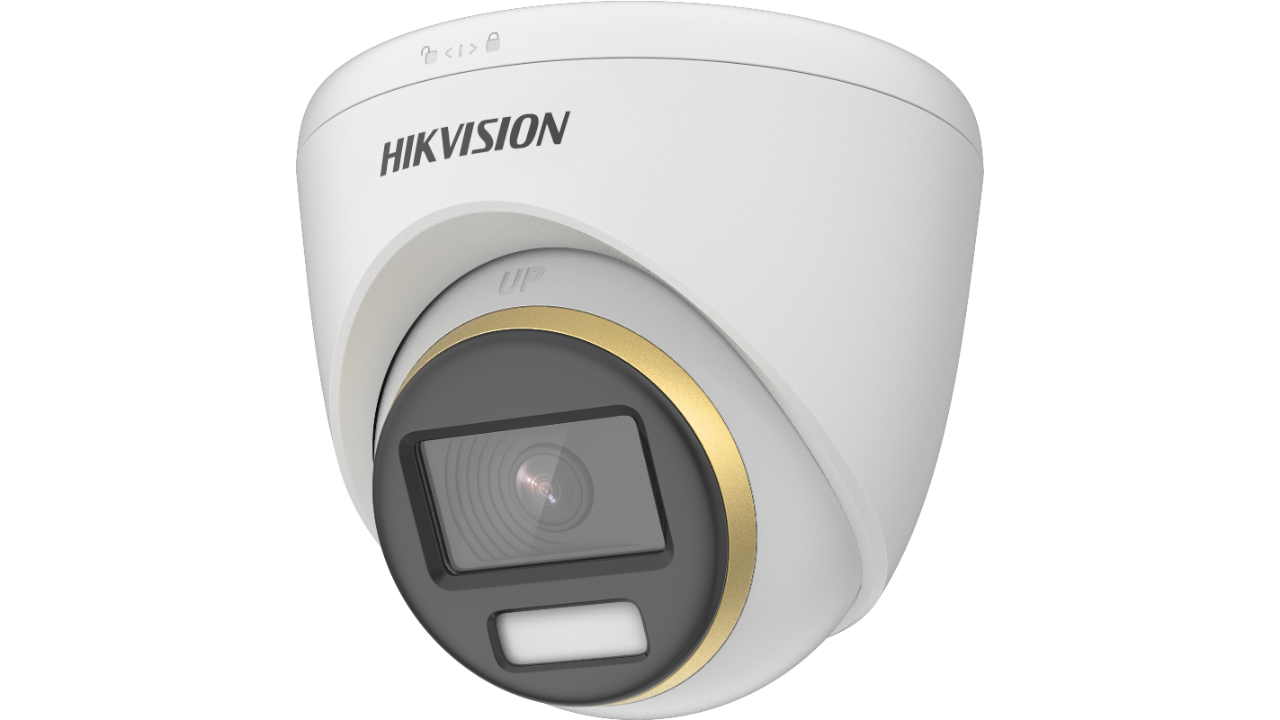

DS-2CE72KF3T

3K ColorVu Fixed Turret Camera

High quality imaging with 3K, 2960 × 1665 resolution

Excellent low-light performance

Clear imaging against strong back light due to 130 dB true WDR technology

3D DNR technology delivers clean and sharp images

2.8 mm and 3.6 mm fixed focal lens

Up to 40 m white light distance for bright night imaging

Water and dust resistant (IP67)

24/7 color imaging with F1.0 aperture

specification

Camera
Image Sensor1/1.8″ 3K CMOS
Signal SystemPAL/NTSC
Max. Resolution2960 (H) × 1665 (V)
Min. Illumination0.0003 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Light AlarmSolid Light Alarm (White Light)
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°

Lens
Lens Type2.8 mm and 3.6 mm fixed focal lens
Focal Length & FOV
2.8 mm, horizontal FOV: 112°, vertical FOV: 60°, diagonal FOV: 133°

3.6 mm, horizontal FOV: 95°, vertical FOV: 50°, diagonal FOV: 115°
Lens MountM16

Frame Rate3K@20fps, 4MP@25fps/30fps, 1080p@25fps/30fps
Wide Dynamic Range (WDR)≥130 dB
White LightAuto/Off
Image Parameters SwitchSTD/HIGH-SAT/HIGHLIGHT
AGCYes
Day/Night ModeColor
White BalanceAuto/Outdoor/Global/Manual
Image EnhancementWDR;BLC;HLC;Global;HLS
Privacy Mask4 programmable privacy masks
Noise Reduction3D DNR/2D DNR
Image SettingsAnti-Banding;Smart Light;Brightness;Contrast;Mirror

Interface
Video Output1 HD analog output

Event
Motion Detection4 programmable motion areas

General
LanguageEnglish
Operating Condition-40°C to 50°C (-40°F to 122°F), Humidity: 90% or less (non-condensing)
Power Supply
12 VDC ± 25%

*You are recommended to use one power adapter for one camera, and use 2-pin power supply for long-distance power supply.
ConsumptionMax. 5.3 W
MaterialMain body: Metal, Enclosure: Plastic
White Light RangeUp to 40 m
CommunicationHIKVISION-C
Dimension Φ 109.98 mm × 98.27 mm (Φ 4.33″ × 3.87″)
WeightApprox. 350 g (0.77 lb.)

Approval
ProtectionIP67
