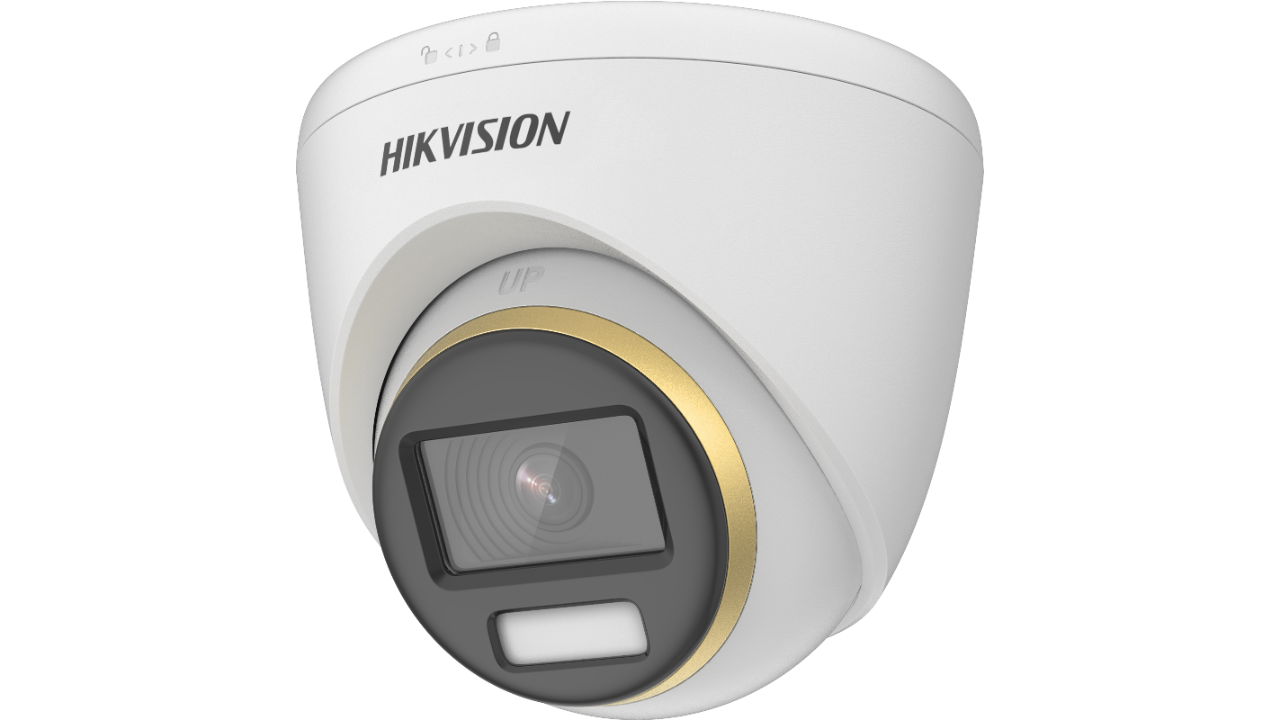

DS-2CE72KF3T-E

3K ColorVu PoC Fixed Turret Camera

  • High quality imaging with 3K, 2960 × 1665 resolution
  • Excellent low-light performance
  • Clear imaging against strong back light due to 130 dB true WDR technology
  • 3D DNR technology delivers clean and sharp images
  • 2.8 mm and 3.6 mm fixed focal lens
  • Up to 40 m white light distance for bright night imaging
  • Water and dust resistant (IP67)
  • 24/7 color imaging with F1.0 aperture
  • specification

    • Camera
    • Image Sensor1/1.8″ 3K CMOS
    • Signal SystemPAL/NTSC
    • Max. Resolution2960 (H) × 1665 (V)
    • Min. Illumination0.0003 Lux @ (F1.0, AGC ON), 0 Lux with white light
    • Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
    • Light AlarmSolid Light Alarm (White Light)
    • Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
    • Lens
    • Lens Type2.8 mm and 3.6 mm fixed focal lens
    • Focal Length & FOV

      2.8 mm, horizontal FOV: 112°, vertical FOV: 60°, diagonal FOV: 133°

      3.6 mm, horizontal FOV: 95°, vertical FOV: 50°, diagonal FOV: 115°

    • Lens MountM16
    • Image
    • Frame Rate3K@20fps, 4MP@25fps/30fps, 1080p@25fps/30fps
    • Wide Dynamic Range (WDR)≥130 dB
    • White LightAuto/Off
    • Image Parameters SwitchSTD/HIGH-SAT/HIGHLIGHT
    • AGCYes
    • Day/Night ModeColor
    • White BalanceAuto/Outdoor/Global/Manual
    • Image EnhancementHLS;Global;HLC;BLC;WDR
    • Privacy Mask4 programmable privacy masks
    • Noise Reduction3D DNR/2D DNR
    • Image SettingsSmart Light;Mirror;Contrast;Brightness;Anti-Banding
    • Interface
    • Video Output1 HD analog output
    • Event
    • Motion Detection4 programmable motion areas
    • General
    • LanguageEnglish
    • Operating Condition-40°C to 50°C (-40°F to 122°F), Humidity: 90% or less (non-condensing)
    • Power Supply

      12 VDC ± 25%/PoC.at

      *You are recommended to use one power adapter for one camera, and use 2-pin power supply for long-distance power supply.

    • ConsumptionMax. 4 W
    • MaterialMain body: Metal, Enclosure: Plastic
    • White Light RangeUp to 40 m
    • CommunicationHIKVISION-C
    • DimensionΦ 109.98 mm × 98.27 mm (Φ 4.33″ × 3.87″)
    • WeightApprox. 380 g (0.84 lb.)
    • Approval
    • ProtectionIP67
