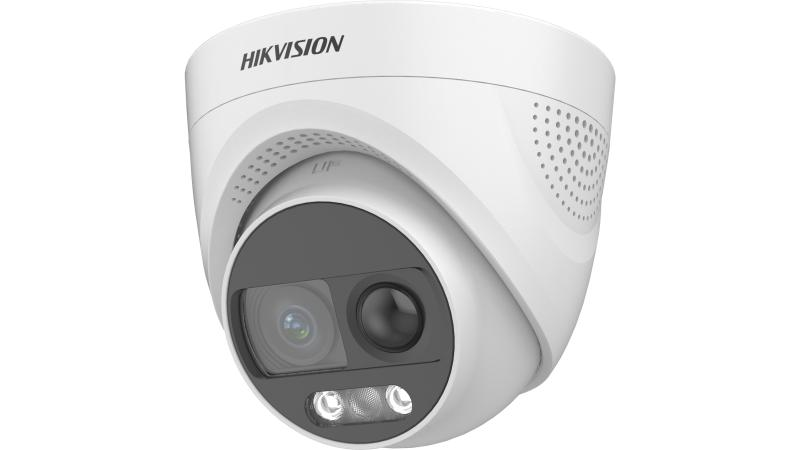

DS-2CE72UF3T-PIRXO

4K ColorVu PIR Siren Fixed Turret Camera

High quality imaging with 8 MP, 3840 × 2160 resolution

24/7 color imaging

Clear imaging against strong back light due to 130 dB true WDR technology

3D DNR technology delivers clean and sharp images

2.8 mm, 3.6 mm fixed focal lens

Up to 20 m White Light distance for bright night imaging

Detects human body through heat-sensitive passive infrared (PIR)

Active strobe light and audio alarm to warn intruders off

Water and dust resistant (IP67)

High quality audio with built-in speaker

specification

Camera
Image Sensor8 MP CMOS
Max. Resolution3840 (H) × 2160 (V)
Min. Illumination0.0005 Lux @ (F1.0,AGC ON), 0 Lux with white Light
Shutter TimePAL: 1/12.5 s to 1/50,000 s;NTSC: 1/15 s to 1/50,000 s
Day & Night24/7 Color Imaging
Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
Signal SystemPAL/NTSC

Lens
Lens Type2.8 mm, 3.6 mm fixed focal lens
Focal Length & FOV
2.8 mm, horizontal FOV: 108°, vertical FOV: 57°, diagonal FOV: 127°

3.6 mm, horizontal FOV: 91°, vertical FOV: 45°, diagonal FOV: 110°
Lens MountM16

Illuminator
Supplement Light TypeWhite Light
Supplement Light RangeUp to 20 m
Smart Supplement LightYes

Image Parameters SwitchSTD/HIGH-SAT/HIGHLIGHT
Image SettingsAGC;Brightness;Contrast;Mirror;Defective Pixel Correction;Sharpness;Anti-Banding;Smart Light
Frame Rate8 MP@12.5 fps/15 fps, 5 MP@20 fps, 1080P@25 fps/30 fps
Day/Night ModeColor
Wide Dynamic Range (WDR)≥130 dB
Image EnhancementWDR;BLC;HLC;Global;HLS
Privacy Mask4 programmable privacy masks
Noise Reduction3D DNR/2D DNR
White BalanceAuto/Manual
White LightAuto/Off

Supplement Detection(PIR)
PIR Range11 m
PIR Angle110°

Interface
Video Output1 HD analog output
Alarm
1 line out

flashing light alarm (white)

Event
Motion Detection4 programmable motion areas

General
Power
12 VDC ± 25%, max. 6.4 W

*You are recommended to use one power adapter to supply the power for one camera.
MaterialMain body: Metal, Enclosure: Plastic
DimensionØ 109.8 mm × 91.6 mm (Ø 4.32″ × 3.6″)
WeightApprox. 416 g (0.92 lb.)
Operating Condition-40°C to 60°C (-40°F to 140°F), humidity: 90% or less (non-condensing)
CommunicationHIKVISION-C
LanguageEnglish

Approval
ProtectionIP67
