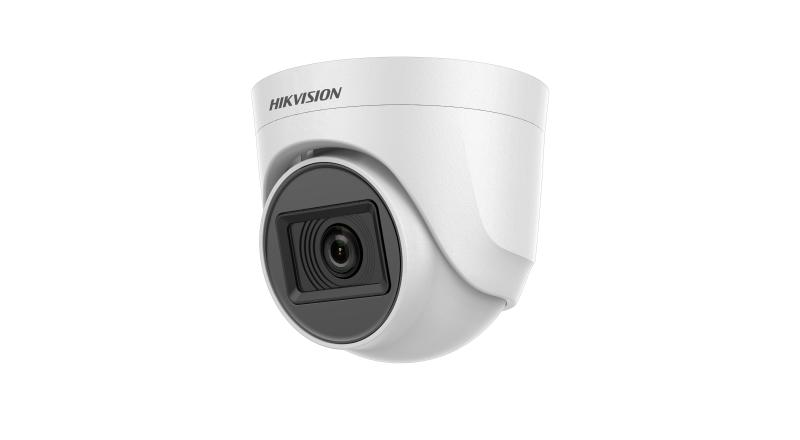

DS-2CE76D0T-ITPF(C)

2 MP Indoor Fixed Turret Camera

  • 2 MP turret camera
  • EXIR 2.0: advanced infrared technology with 20 m IR distance
  • 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS).
  • specification

    • Camera
    • Image Sensor2 MP CMOS
    • Max. Resolution1920 (H) × 1080 (V)
    • Min. Illumination0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
    • Shutter Time

      PAL: 1/25s to 1/50, 000 s

      NTSC: 1/15 s to 1/50, 000 s

    • Day & NightICR
    • Angle AdjustmentPan: 0° to 360°; Tilt: 0° to 75°; Rotate: 0° to 360°
    • Signal SystemPAL/NTSC
    • Lens
    • Lens Type2.8 mm, 3.6 mm, 6 mm fixed lens
    • Focal Length & FOV

      2.8 mm, horizontal FOV: 101°, vertical FOV: 60°, diagonal FOV: 122°

      3.6 mm, horizontal FOV: 79.6°, vertical FOV: 43.5°, diagonal FOV: 93.7°

      6 mm, horizontal FOV: 51.9°°, vertical FOV: 30°, diagonal FOV: 58.8°

    • Lens MountM12
    • Image
    • Image Parameters SwitchSTD/HIGH-SAT
    • Image SettingsBrightness, Sharpness, Smart IR
    • Frame Rate

      TVI: 1080P@30fps, 1080P@25fps

      CVI: 1080P@30fps, 1080P@25fps

      AHD: 1080P@30fps, 1080P@25fps

      CVBS: PAL/NTSC

    • Day/Night ModeAuto/Color/BW (Black and White)
    • Wide Dynamic Range (WDR)Digital WDR
    • Image EnhancementBLC, HLC
    • White BalanceATW/MANUAL
    • AGCSupport
    • Interface
    • Video OutputSwitchable TVI/AHD/CVI/CVBS
    • General
    • MaterialPlastic
    • DimensionΦ 84.6 mm × 78.9 mm (Φ 3.33″ × 3.11″)
    • WeightApprox. 135 g (0.30 lb.)
    • Operating Condition-40° C to 60° C (-40° F to 140° F), Humidity 90% or less (no condensation)
    • CommunicationHIKVISION-C
    • LanguageEnglish
    • Power Supply12 VDC ± 25%
    • Consumption

      Max. 2.2 W

    • IR RangeUp to 20 m
