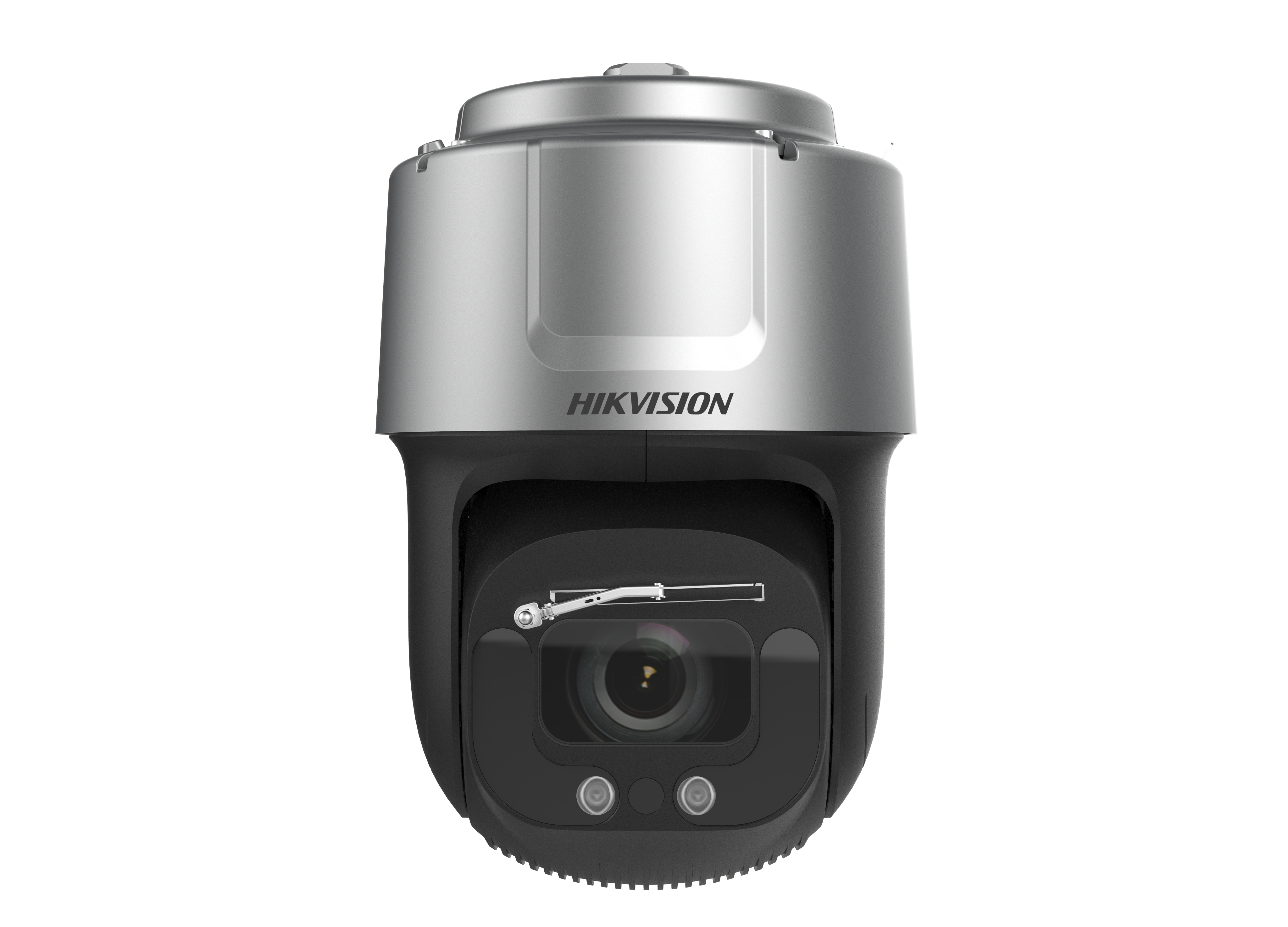

DS-2DF9C245IHS-DLW(T2)

9-inch 2 MP 45X DarkFighterX IR Network Speed Dome

Dual-sensor, 1/1.8″ progressive scan CMOS

Full-color image output

High quality imaging with 2 MP resolution

Excellent low-light performance with DarkFighterX technology

45× optical zoom, 16× digital zoom

Capturing every point fast even in critical events

Deep-learning-based target classification algorithm for auto-tracking 3.0 and perimeter protection

Up to 500 m IR distance. Smart IR

Rain-sensing auto wiper

specification

Camera
Image Sensor1/1.8＂ progressive scan CMOS, dual-sensor structure
Min. Illuminationcolor: 0.0005Lux @ (F1.6，AGC ON);B/W: 0.0001Lux @ (F1.6，AGC ON);0 Lux with IR
Shutter Speed1/1 to 1/30,000s
Slow Shutteryes
Focussemi-auto;manual;auto
Day & Nightelectronic
Day/Night Switchday;night;auto;scheduled-switch
BLCyes
WDR140 dB WDR
HLCyes
3D DNRyes
Defogyes
EISYes. Built-in gyroscope to improve EIS performance.
Regional Exposureyes
Regional Focusyes
Image Settingssaturation;brightness;sharpness;contrast
Image Parameters Switchyes
White Balanceauto;MWB;outdoor;indoor;fluorescent lamp;ATW;sodium lamp
Digital Zoom16x
Optical Zoom45x
Privacy Maskup to 24 masks;mosaic mask ;mask color configurable;polygon region
Picture Overlayyes
DORI
Detect(25px/m)：3351.7m

Observe(63px/m)：1330m

Recognize(125px/m)：670.3m

Identify(250px/m)：335.2m
SNR≥55dB
General Functionmirror, password protection, watermark, IP address filter

Lens
Focal Length5.9mm to 265mm
Zoom Speedapprox. 4.8 s
FOV
Horizontal field of view: 58.9° to 1.7°(wide-tele)

Vertical field of view: 35.3° to 0.9°(wide-tele)

Diagonal field of view: 65.9° to 1.9° (wide-tele)
Min. Working Distance100 mm-1500 mm (wide-tele)
ApertureF1.6
Aperture RangeF1.6 to F4.4

Illuminator
IR Distance500 meters
Smart IRyes

PTZ
Movement Range (Pan)360°
Movement Range (Tilt) -25° to 90° (auto flip)
Pan Speedpan speed: configurable from 0.1° to 210°/s; preset speed: 280°/s
Tilt Speedtilt speed: configurable from 0.1° to 150°/s, preset speed 250°/s
Proportional Zoomyes
Presets300
Patrol Scan8 patrols, up to 32 presets for each patrol
Pattern Scan4 pattern scans, record time over 10 minutes for each scan
Power-off Memoryyes
Park Actionpanorama scan;patrol scan;auto scan;preset;pattern scan;tilt scan;frame scan;random scan
3D Positioningyes
PTZ Status Displayyes
Preset Freezingyes
Scheduled Taskpreset;auto scan;random scan;frame scan;pattern scan;patrol scan;tilt scan;panorama scan;aux output;dome reboot;dome adjust

Video
Max. Resolution1920 × 1080
Stream Typemain stream;third stream;sub-stream
Main Stream
50Hz: 25fps (1920×1080, 1280 × 960, 1280×720)

60Hz: 30fps (1920×1080, 1280 × 960, 1280×720)
Sub-Stream
50Hz: 25fps (704 × 576, 640 × 480, 352 × 288)

60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
Third Stream
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)

60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video CompressionH.264;MJPEG;H.265
Video Bit Rate32 Kbps ~ 16384 Kbps
H.264 Typebaseline profile;main profile;high profile
H.265 Typemain profile
H.264+yes
H.265+yes
SVCyes
ROIyes

Audio
Audio CompressionG.711alaw;G.711ulaw;G.722.1;PCM;G.726;MP2L2
Audio Bit rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 192 Kbps(MP2L2)

Smart Features
Face CaptureSupport detecting up to 30 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face.
Road TrafficSupport vehicle detection (license plate number,vehicle model, and vehicle color recognition)
Basic Eventmotion detection;video tampering alarm;alarm input and output;exception
Smart Eventobject removal detection;unattended baggage detection;Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Audio Exception Detection;vandal-proof alarm
Smart Trackingmanual tracking;auto-tracking;event tracking
Smart RecordANR;Dual-VCA
Alarm Linkagepreset;patrol scan;alarm output;NAS video recording;smart tracking; upload to FTP;notify surveillance center;sending email;pattern scan;memory card video recording
Smart EncodingH.265+;H.264+;SVC;ROI

Network
ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
API ISAPI;Hikvision SDK;ONVIF (Profile S, Profile G, Profile T)
Simultaneous Live View20
User/Host32
Security MeasuresAuthenticated username and password;MAC address binding;IP address filter;802.1X authenticated access;HTTPS encryption
Web BrowserIE 8 to 11, Chrome 57+, Firefox 52+, Safari 12+

Interface
Communication Interface1 RJ45 10 M/100 M Ethernet Interface
On-board StorageBuilt-in microSD slot;up to 256 GB ; support microSD/microSDHC/microSDXC cards
Alarm Input7 alarm inputs
Alarm Output2 alarm output
Audio Input1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%
Audio Output1 audio output, line level, impedance: 600 Ω
Video Output1.0V[p-p]/75Ω;BNC connector;PAL;NTSC
RS-485Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive

General
Power36 VDC
Power Consumption and Currentmax. 90 W, including max. 12 W for laser
Operating ConditionsTemperature: -40°C to 70°C (-40°F to 158°F)，Humidity: ≤ 95%
WiperYes. Rain-sensing auto control
MaterialADC12
DimensionsΦ293×422mm
Weight13kg
Web Client Language32 languages. English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)

Approval
EMCLightning Protection, Surge Protection and Voltage Transient Protection, ±6kV Line to Gnd, ±3kV Line to Line, IEC61000-4-5
ProtectionIP67
