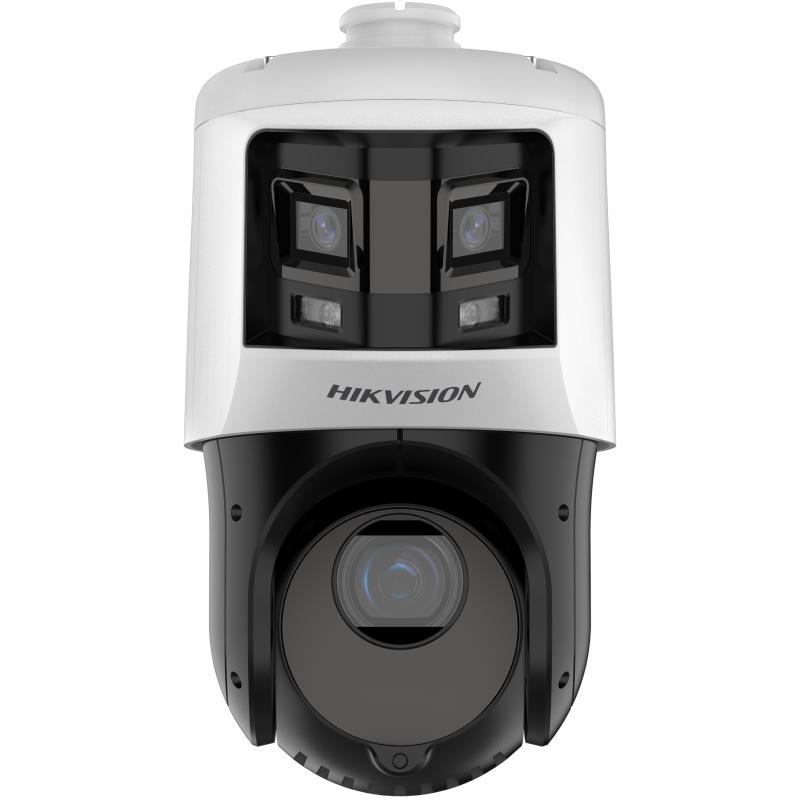

DS-2SE4C425MWG-E/26(F0)

TandemVu 6+4MP 25X Colorful & IR Panoramic & PTZ Camera

Captures a large area and great details at the same time

High quality panoramic imaging with 6 MP resolution and details imaging with 4 MP

Excellent low-light performance with powered-by-DarkFighter technology and ColorVu technology

Secures an expansive area with 25× optical zoom and 16× digital zoom

Expansive night view with up to 100 m IR distance & 30 m white light

Supports 12V DC & PoE+

Focuses on human and vehicle targets classification based on deep learning

specification

Camera
Image Sensor[Bullet channel]: 1/2.5″ Progressive Scan CMOS; [PTZ channel]: 1/2.8″ progressive scan CMOS
Max. Resolution[Bullet channel] 3632 × 1632, [PTZ channel] 2560 × 1440
Min. Illumination
[Bullet channel]: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light;

[PTZ channel]: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed1 s to 1/30,000 s
Slow Shutteryes
Focussemi-auto;manual;auto
Day & NightICR
Zoom[PTZ channel] 25 × optical, 16 × digital
Day/Night Switchday, night, auto, scheduled-switch
White BalanceMWB;indoor;outdoor;fluorescent lamp;sodium lamp;ATW;auto;Locked WB

Lens
Focal Length[Bullet channel]: 2.8 mm; [PTZ channel]: 4.8 to 120 mm, 25 × optical
Zoom Speed[PTZ channel]: approx. 3.6 s
FOV
[Bullet channel]: Horizontal field of view: 180±10°, Vertical field of view: 80±5°;

[PTZ channel]:

Horizontal field of view: 55° to 2.4° (wide-tele),

Vertical field of view: 33° to 1.4° (wide-tele),

Diagonal field of view: 61.5° to 2.8° (wide-tele)
Aperture[Bullet channel]: F1.0; [PTZ channel]: F1.6

Illuminator
Supplement Light Type[PTZ channel]: IR; [Bullet channel]: White Light
Smart Supplement LightYes
Supplement Light Range[PTZ channel]: up to 100 m; [Bullet channel]: up to 30 m

PTZ
Movement Range (Pan)360°
Movement Range (Tilt)-15° to 90° (auto flip)
Pan Speed pan speed: configurable from 0.1° to 80°/s; preset speed: 80°/s
Tilt Speedtilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s
Proportional Zoomyes
Presets300
Patrol Scan8 patrols, up to 32 presets for each patrol
Pattern Scan4 pattern scans
Power-off Memoryyes
Park Actionpreset;patrol scan;pattern scan;auto scan;tilt scan;random scan;frame scan;panorama scan
3D Positioningyes
PTZ Status Displayyes
Preset Freezingyes
Scheduled Taskpreset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan;dome reboot;dome adjust;aux output
Exception DetectionIP address conflict, HDD full, illegal login, HDD error, network disconnected, Abnormal Reboot

Video
Region of Interest (ROI)8 fixed regions for each stream
Main Stream
[Bullet channel]

50 Hz：25 fps（3632 × 1632，3680 × 1656）

60 Hz：30 fps（3632 × 1632，3680 × 1656）

[PTZ channel]

50 Hz：25 fps（2560 × 1440，1920 × 1080，1280 × 960，1280 × 720）

60 Hz：30 fps（2560 × 1440，1920 × 1080，1280 × 960，1280 × 720）
Sub-Stream
[Bullet channel]

50 Hz：25 fps（1200 × 536，960 × 432）

60 Hz：30 fps（1200 × 536，960 × 432）

[PTZ channel]

50 Hz：25 fps（704 × 576，640 × 480，352 × 288）

60 Hz：30 fps（704 × 480，640 × 480，352 × 240）
Third Stream
[Bullet channel]

No

[PTZ channel]

50 Hz：25 fps（1920 × 1080，1280 × 960，1280 × 720，704 × 576，640 × 480，352 × 288）

60 Hz：30 fps（1920 × 1080，1280 × 960，1280 × 720，704 × 480，640 × 480，352 × 240）
Video CompressionH.265;H.264;MJPEG
Video Bit Rate32 kbps to 16384 kbps
H.264 Typebaseline profile;main profile;high profile
H.265 Typemain profile
H.264+yes
H.265+yes
SVCyes

Audio
Audio CompressionG.711,G.722.1,G.726,MP2L2,PCM,AAC-LC,MP3
Audio Bit RateMP2L2: 16 kHz, 32 kHz, 48 kHz; AAC-LC: 16 kHz, 32 kHz, 48 kHz; PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz; MP3: 8 kHz, 16 kHz, 32 kHz, 48 kHz
Audio Sampling RateMP2L2: 32 Kbps, 40 Kbps, 48 Kbps, 56 Kbps, 64 Kbps, 80 Kbps, 96 Kbps, 112 Kbps, 128 Kbps, 144 Kbps, 160 Kbps, 192 Kbps, AAC-LC: 16 Kbps, 32 Kbps, 64 Kbps , MP3: 8Kbps, 16Kbps, 24Kbps, 32Kbps, 40Kbps, 48Kbps, 56Kbps, 64Kbps, 80Kbps, 96Kbps, 112Kbps, 128Kbps, 160Kbps, 192Kbps, 224Kbps, 256Kbps, 320Kbps
Environment Noise Filteringyes

Smart Features
Smart RecordANR;Dual-VCA

Network
APIISAPI,SDK,ISUP,ONVIF
Web BrowserIE11+,Chrome57+,Firefox52+,Safari12+,Edge79.0.309.65+
Network StorageNAS (NFS, SMB/ CIFS); ANR
ProtocolsIPv4/IPv6;HTTP;HTTPS;802.1x;Qos;FTP;SMTP;UPnP;SNMP;DNS;DDNS;NTP;RTSP;RTCP;RTP;TCP/IP;UDP;IGMP;ICMP;DHCP;PPPoE;Bonjour;WebSocket;WebSockets
Simultaneous Live View20
User/Host32
Security MeasuresAuthenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filter
ClientiVMS-4200;Hik-Connect

Image Settingssharpness, saturation, brightness, contrast
Wide Dynamic Range (WDR)120 dB
SNR≥ 52 dB
DefogDigital defog
Image StabilizationEIS
Image EnhancementBLC,HLC,3D DNR
Regional FocusYes
Regional ExposureYes
Image Parameters SwitchYes
Privacy Mask[Bullet channel] 8 programmable polygon privacy masks, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable

Interface
Communication InterfaceRJ45, self-adaptive 10M/100M Ethernet port
On-board StorageBuilt-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB
Alarm Input1 alarm input
Alarm Output1 alarm output
Audio Input1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%
Audio Output1 audio output, line level, impedance: 600 Ω

Event
Basic Event[PTZ channel] motion detection, video tampering alarm,[PTZ channel & bullet channel] alarm input and output, exception
Smart Event[PTZ channel & bullet channel] audio exception detection,[PTZ channel] line crossing detection, intrusion detection, region entrance detection, region exiting detection,[Bullet channel] line crossing detection, intrusion detection, region entrance detection, region exiting detection
LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,audible warning,and PTZ actions (such as preset, patrol scan, pattern scan)
Smart LinkagePanorama Linkage

Deep Learning Function
Face Capture
Detects up to 5 faces simultaneously,

Supports detecting, tracking, capturing, grading, selecting of face in motion, and outputs the best face picture

General
General Functionmirror,watermark,password protection
Power12VDC, PoE+
Power Consumption and CurrentMax. 24 W, including max. 2.6 W for heater and max. 11 W for supplement light
Operating Conditions-30℃ to 65℃ (-22°F to 149°F) ;humidity lower than 90%RH
Resetyes
DemistDemist by heating the glass
MaterialADC12
DimensionsØ 166 mm × 375 mm (Ø 6.5″ × 14.7″)
WeightApprox. 2.4 kg (13.2 lb.)

Approval
Protection IP66 Standard, 6000 V Lightning Protection, Surge Protection and Voltage Transient Protection
