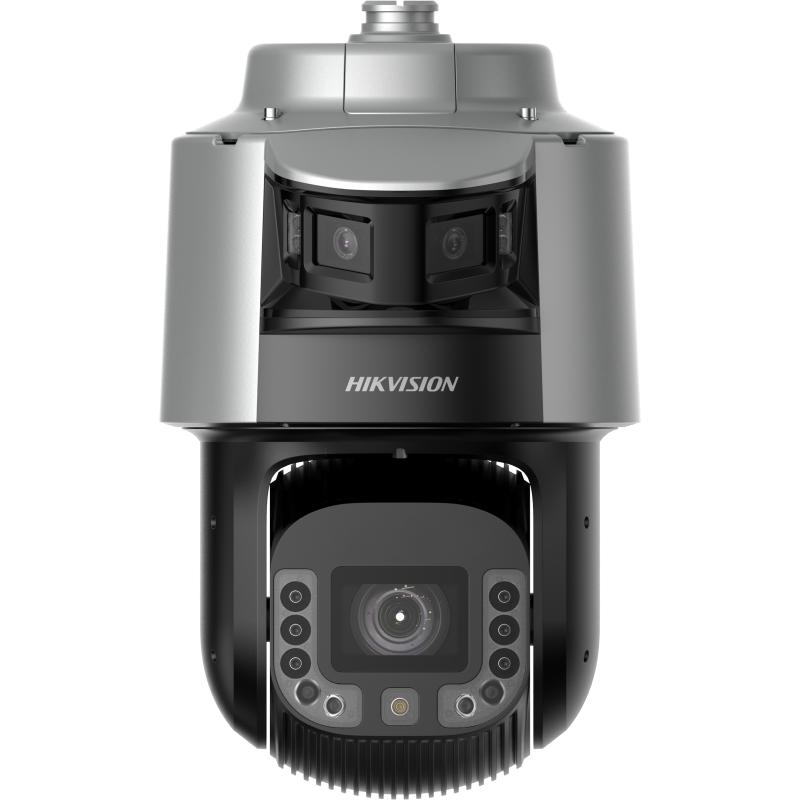

DS-2SF8C425MXS-DL(24F0)(P3)

TandemVu 8-inch Panoramic 4 MP 25X DarkFighter Network Speed Dome

Captures a large area and great details at the same time

High quality imaging with 4 MP resolution for both panoramic channel and PTZ channel

24/7 colorful imaging and excellent low-light performance with DarkFighter technology

Panoramic channel tilt adjustable from 7° to 17°

Secures an expansive area with 25 × optical zoom and 16 × digital zoom

Expansive night view with up to 30 m white light distance and 300 m IR distance

Supports deep learning functions

Water and dust resistant (IP67) and vandal resistant (IK10)

specification

Camera
Image Sensor[Panoramic channel] 1/1.8″ Progressive Scan CMOS, [PTZ channel] 1/1.8″ Progressive Scan CMOS
Min. Illumination
[Panoramic channel] Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with Light,

[PTZ channel] Color: 0.0005 Lux @ (F1.5, AGC ON), B/W: 0.0001 Lux @ (F1.5, AGC ON), 0 lux with IR
Shutter Speed1 s to 1/30000 s
Slow ShutterYes
Day & Night[Panoramic channel] Color, [PTZ channel] IR cut filter
Zoom[PTZ channel] 25 × optical, 16 × digital
Max. Resolution[Panoramic channel] 3840 × 1080, [PTZ channel] 2560 × 1440

Lens
FocusAuto,semi-auto,manual
Focal Length[Panoramic channel] 2.8 mm, [PTZ channel] 5.9 to 147.5 mm
Zoom SpeedApprox. 4.8 s
FOV
[Panoramic channel]

horizontal field of view: 190° ± 5°, vertical field of view: 50° ± 5°, diagonal field of view: 198° ± 5°,

[PTZ channel]

horizontal field of view: 58.5° to 3.1°, vertical field of view: 34° to 1.7°, diagonal field of view: 68.5° to 3.5°
Aperture[Panoramic channel] F1.0, [PTZ channel] F1.5

Illuminator
Supplement Light Range[Panoramic channel] white light: up to 30 m, [PTZ channel] IR: up to 300 m
Smart Supplement LightYes

PTZ
Movement Range (Pan) [PTZ channel] 0° to 360°
Movement Range (Tilt)[Panoramic channel] 7° to 17°, [PTZ channel] -20° to 90°
Pan Speed[PTZ channel] pan speed: configurable from 0.1° to 160°/s, preset speed: 240°/s
Tilt Speed[Panoramic channel] tilt speed configurable,[PTZ channel] tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s
Proportional Pan[Panoramic channel] No, [PTZ channel] Yes
Presets300
Patrol Scan8 patrols, up to 32 presets for each patrol
Pattern Scan4 pattern scans, record time over 10 minutes for each scan
Power-off MemoryYes
Park ActionPreset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan
3D PositioningYes
PTZ Status DisplayYes
Preset FreezingYes
Scheduled TaskPreset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan,dome reboot,dome adjust,aux output

Video
Main Stream[Panoramic channel] 50 Hz: 25 fps (3840 × 1080), 60 Hz: 24 fps (3840 × 1080),[PTZ channel] 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720), 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream[Panoramic channel] 50 Hz: 25 fps (1920 × 536), 60 Hz: 24 fps (1920 × 536),[PTZ channel] 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
Third Stream[Panoramic channel] No,[PTZ channel] 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264,

Sub-stream: H.265/H.264/MJPEG,

Third stream: H.265/H.264/MJPEG
Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeBaseline profile,Main profile,High profile
H.265 TypeMain profile
Scalable Video Coding (SVC)H.264 and H.265 encoding
Region of Interest (ROI)8 fixed regions for each stream

Audio
Audio CompressionG.711,G.722.1,G.726,MP2L2,PCM,AAC
Audio Bit Rate32 to 192 Kbps (MP2L2),16 to 64 Kbps (AAC)
Audio Sampling Rate8 kHz,16 kHz,32 kHz,48 kHz
Environment Noise FilteringYes

Network
APIISUP,ISAPI,SDK,Open Network Video Interface (Profile S, Profile G, Profile T)
Network StorageNAS (NFS, SMB/CIFS),auto network replenishment (ANR)
ProtocolsIPv4/IPv6,HTTP,HTTPS,802.1X,QoS,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP/IP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,FTP
Simultaneous Live ViewUp to 20 channels
User/HostUp to 32 users. 3 user levels: administrator, operator, and user
SecurityPassword protection,complicated password,IP address filter,HTTPS encryption,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5),host authentication (MAC address),watermark
ClientiVMS-4200,HikCentral Pro,Hik-Connect
Web BrowserIE 10+, Chrome 57+, Firefox 52+, Safari 12+

Day/Night SwitchDay,night,auto,schedule
Image EnhancementHLC,3D DNR
Wide Dynamic Range (WDR)[Panoramic channel] No, [PTZ channel] 120 dB
DefogDigital defog
Image StabilizationEIS
Regional ExposureYes
Regional Focus[Panoramic channel] No, [PTZ channel] Yes
Image SettingsSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Image Parameters SwitchYes
Privacy Mask[Panoramic channel] No, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable
SNR≥ 52 dB

Supplement Detection
Satellite PositioningNo
GyroscopeYes
CompassNo

Interface
Ethernet Interface1 RJ45 100M self-adaptive Ethernet port
On-board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
Alarm7 input(s), 2 output(s)
Audio
1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%,

1 output (line out), line level, output impedance: 600 Ω
RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
ResetYes

Event
Basic Eventvideo tampering alarm,exception,alarm input and output
Smart EventLine crossing detection,intrusion detection,region entrance detection,region exiting detection,audio exception detection
Smart TrackingManual tracking,auto-tracking,panorama tracking
Alarm LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,audible warning,white light flashing,and PTZ actions (such as preset, patrol scan, pattern scan)

Deep Learning Function
Multi-Target-Type DetectionSupports simultaneous detection and capture of human body, face and vehicle

General
General Functionmirror,password protection
Power36 VDC ± 25%, max. 70 W,including max. 6 W for heater and max. 6 W for supplement light of panoramic channel, and max. 6 W for heater and max. 15 W for supplement light of PTZ channel
Operating Condition-40 °C to 70 °C (-40 °F to 158 °F). Humidity 95% or less (non-condensing),For speaker: -30 °C to 55°C (-22°F to 131°F)
WiperNo
DemistYes
MaterialADC12
DimensionØ290 mm × 453.2 mm (Ø11.42″ × 17.84″)
WeightApprox. 11.5 kg (25.35 lb.)
Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Approval
EMCFCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014),RCM (AS/NZS CISPR 32: 2015),IC (ICES-003: Issue 7),KC (KN 32: 2015, KN 35: 2015)
SafetyUL (UL 62368-1),CB (IEC 62368-1: 2014 + A11),CE-LVD (EN 62368-1: 2014/A11: 2017),BIS (IS 13252 (Part 1): 2010/IEC 60950-1: 2005),LOA (IEC/EN 60950-1)
EnvironmentCE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No 1907/2006)
ProtectionIP67 (IEC 60529-2013),TVS 6000 V lightning protection, surge protection and voltage transient protection
