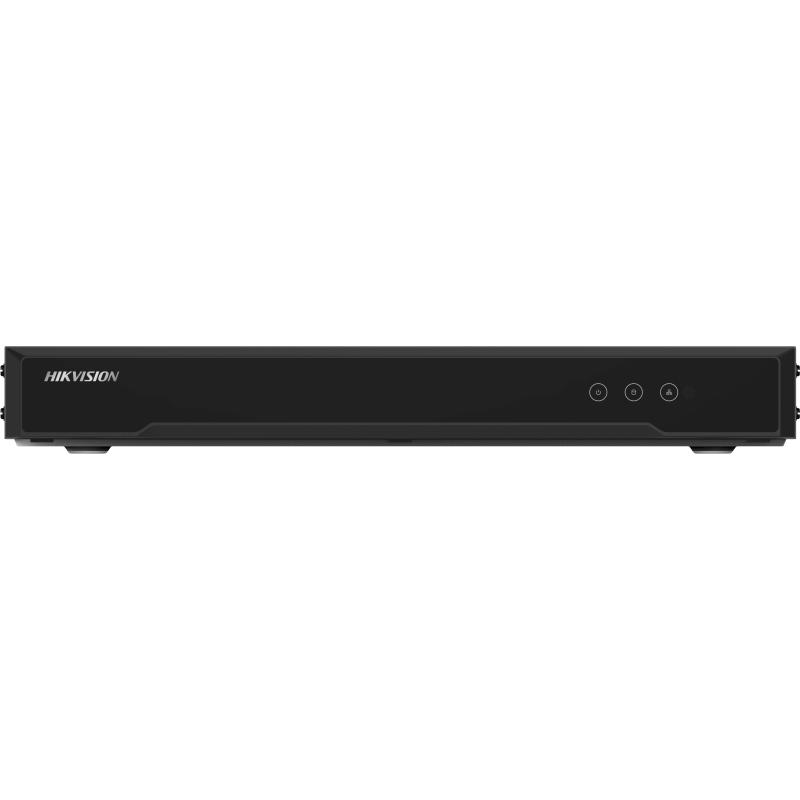

DS-6708HUHI-K

8-ch 5 MP H.265 DVS

  • 8 analog cameras can be connected
  • Efficient H.265+ compression technology
  • Encoding abilty up to 8 MP @ 8 fps, 5 MP @ 12 fps
  • 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
  • Up to 1/2 HDDs can be used for storage
  • specification

    • Recording
    • Video CompressionH.265+/H.265/H.264+/H.264
    • Encoding Resolution

      Main Stream: 8 MP/5 MP/4 MP/

      3 MP/1080p/720p/WD1/4CIF/VGA/CIF

    • Frame Rate

      Main stream:

      8 MP@8fps/5 MP@12fps/4 MP@15fps/3 MP@18fps

      1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

    • Video Bitrate32 Kbps to 10 Mbps
    • Dual-streamSupport
    • Audio CompressionG.711u
    • Audio Bitrate64 Kbps
    • Video and Audio
    • IP Video Input8-ch
    • HDTVI Input8MP, 5MP, 4MP, 3MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
    • AHD Input5MP, 4MP, 1080p25, 1080p30, 720p25, 720p30
    • HDCVI Input4MP, 1080p25, 1080p30, 720p25, 720p30
    • CVBS InputPAL/NTSC
    • Audio Input4-ch, RCA (2.0 Vp-p, 1 KΩ)
    • Audio Output1-ch, RCA (Linear, 1 KΩ)
    • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the 1st audio input)
    • Synchronous Playback8-ch
    • Network
    • Network ProtocolTCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS, ONVIF profile S
    • Network Interface1, RJ45 10M/100M/1000M self-adaptive Ethernet interface
    • Auxiliary Interface
    • SATA2 SATA interfaces
    • CapacityUp to 8 TB capacity for each disk
    • Serial InterfaceRS-485 (half-duplex); RS-232
    • Alarm In/Out8/4
    • General
    • Power Supply12 VDC, 3.33 A
    • Consumption≤ 20 W
    • Working Temperature-10 ºC to +55 ºC (+14 ºF to +131 ºF)
    • Working Humidity10% to 90%
    • Dimension (W × D × H)380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)
    • Weight≤ 1.78 kg (3.9 lb)
