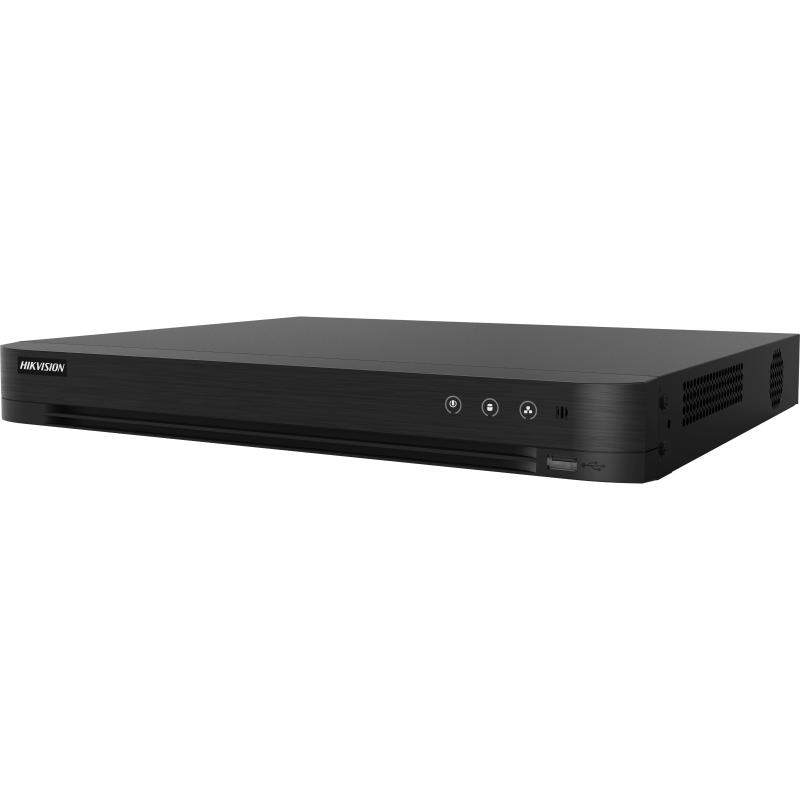

DS-7232HGHI-M2

32-ch 720p 1U H.265 DVR

  • Deep learning based human and vehicle targets classification of Motion Detection 2.0
  • H.265 Pro+/H.265 Pro/H.265 video compression
  • HDTVI/AHD/CVI/CVBS/IP video input
  • Audio via coaxial cable
  • Up to 18-ch IP camera inputs (up to 5 MP)
  • Up to 1080p Lite@15 fps encoding capability
  • Max. 1200 m for 720p HDTVI signal
  • specification

    • Motion Detection 2.0
    • Human/Vehicle Analysis

      Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

      Quick search by object or event type is supported;

    • Recording
    • Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
    • Encoding Resolution1080p lite/720p/720p lite/WD1/4CIF/VGA/CIF
    • Frame Rate

      Main stream:

      For 1080p stream access: 1080p lite/720p lite/WD1/4CIF/VGA@15fps; CIF@25fps

      For 720p stream access: 720p/WD1/4CIF/VGA@15fps; CIF@25fps

      For standard definition stream access: WD1/4CIF/VGA/CIF@25fps

      Sub-stream: CIF/QVGA@15fps

    • Video Bitrate32 Kbps to 4 Mbps
    • Dual-streamNonsupport
    • Stream TypeVideo, Video & Audio
    • Audio CompressionG.711u
    • Audio Bitrate64 Kbps
    • Video and Audio
    • IP Video Input

      2-ch (up to 18-ch)

      Up to 5 MP resolution

      Support H.265+/H.265/H.264+/H.264 IP cameras

    • Analog Video Input

      32-ch

      BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

    • HDTVI Input1080p25, 1080p30, 720p25, 720p30
    • AHD Input1080p25, 1080p30, 720p25, 720p30
    • HDCVI Input1080p25, 1080p30, 720p25, 720p30
    • CVBS InputPAL/NTSC
    • HDMI Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
    • VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
    • CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω)
    • Audio Input

      1-ch, RCA (2.0 Vp-p, 1 KΩ)

      32-ch via coaxial cable

    • Audio Output1-ch, RCA (Linear, 1 KΩ)
    • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
    • Synchronous Playback16-ch
    • Network
    • Remote Connection128
    • Total Bandwidth128 Mbps
    • Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, EHome
    • Network Interface1, RJ45 10M/100M/1000M self-adaptive Ethernet interface
    • Wi-FiConnectable to Wi-Fi network by Wi-Fi dongle through USB interface
    • Auxiliary Interface
    • Serial InterfaceRS-485 (half-duplex)
    • SATA2 SATA interface
    • CapacityUp to 10 TB capacity for each disk
    • USB Interface

      Front panel: 1 × USB 2.0

      Rear panel: 1 × USB 3.0

    • General
    • Power Supply12 VDC, 3.33 A
    • Consumption≤ 18 W (without HDD)
    • Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
    • Working Humidity10% to 90%
    • Dimension (W × D × H)380 × 320 × 48 mm (10.2 × 8.7 × 1.8 inch)
    • Weight≤ 2.2 kg (without HDD, 4.9 lb.)
