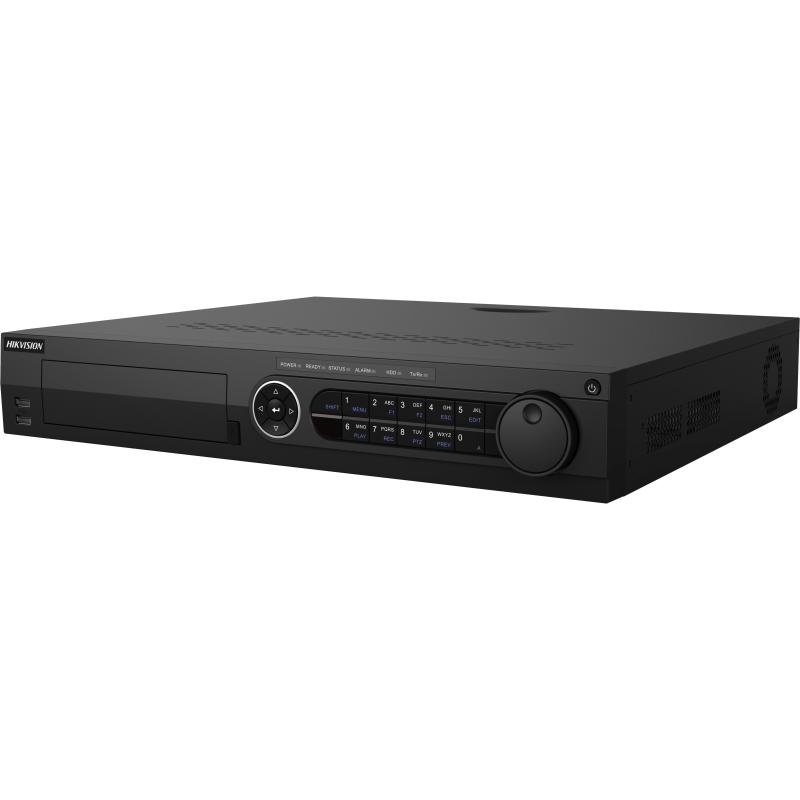

DS-7316HUHI-K4

16-ch 5 MP 1.5U H.265 DVR

16 channels and 4 HDDs 1.5U DVR

Efficient H.265 pro+ compression technology

Encoding ability up to 8 MP @ 8 fps, 5 MP @ 12 fps

5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)

Up to 32 network cameras can be connected

Supports POS triggered recording and POS information overlay

Supports RAID mode for even more reliable data storage, effectively avoiding data loss risks

specification

Recording
Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution8 MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
Frame Rate
Main stream:

8 MP@8fps/5 MP@12fps; 4 MP@ 15fps; 3 MP@18fps;

1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

Sub-stream:

WD1/4CIF/CIF@25fps (P)/30fps (N)
Video Bitrate32 Kbps to 10 Mbps
Dual-streamSupport
Stream TypeVideo, Video & Audio
Audio CompressionG.711u
Audio Bitrate64 Kbps

Video and Audio
IP Video Input
16-ch (up to 32-ch)

Up to 8 MP resolution

Support H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input
16-ch

BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI Input8 MP, 5 MP, 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60
AHD Input5 MP, 4 MP, 720p25, 720p30, 1080p25, 1080p30
HDCVI Input4 MP, 720p25, 720p30, 1080p25, 1080p30
CVBS InputPAL/NTSC
CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
HDMI 1 Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HDMI 2 Output1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Audio Input4-ch, RCA (2.0 Vp-p, 1 KΩ)
Audio Output2-ch, RCA (Linear, 1 KΩ)
Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (independent)
Synchronous Playback16-ch

Network
Remote Connection128
Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, SNMP
Network Interface2, RJ45 10M/100M/1000M self-adaptive Ethernet interface

Auxiliary Interface
SATA4 SATA interfaces
eSATASupport
CapacityUp to 10 TB capacity for each disk
Serial InterfaceRS-232, RS-485 (full-duplex), Keyboard
Alarm In/Out16/4
USB InterfaceFront panel: 2 × USB 2.0,Rear panel: 1 × USB 3.0

General
Power Supply100 to 240 VAC
Consumption≤ 65 W
Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
Working Humidity10% to 90%
Dimension (W × D × H)445 × 390 × 70 mm (17.5 × 15.4 × 2.8 inch)
Weight≤ 5 kg (11.0 lb)
