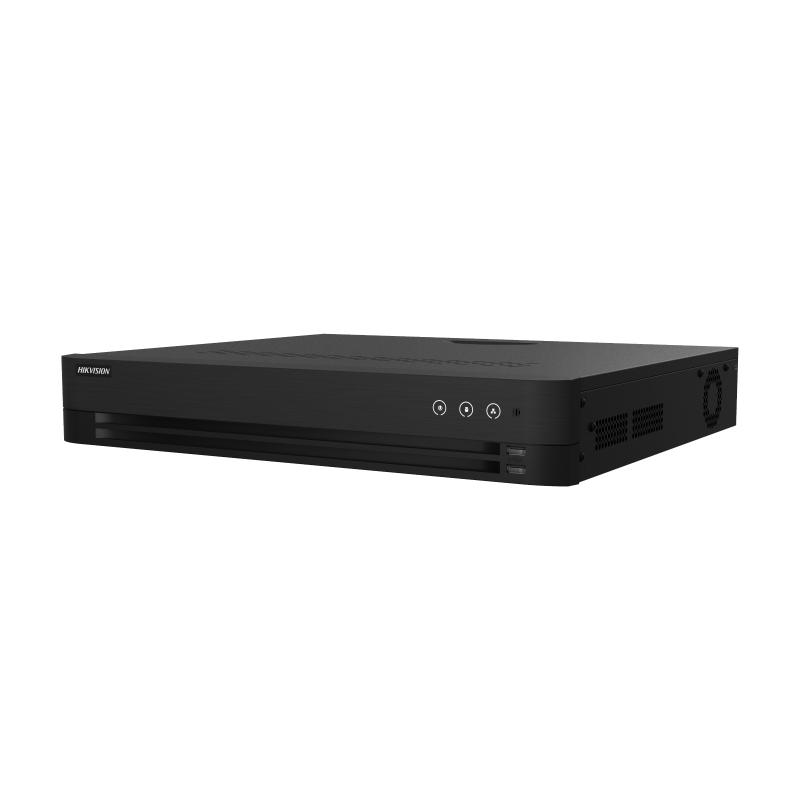

DS-7716NI-Q4/16P

16-ch 1.5U 16 PoE 4K NVR

Up to 16 channel IP cameras can be connected

Supports decoding H.265+/H.265/H.264+/H.264 video formats

Up to 4K high-definition live view, storage and playback

Up to 8-ch @ 1080p decoding capacity

Up to 160 Mbps high incoming bandwidth ensures IP cameras can be connected

1 HDMI and 1 VGA interfaces: both interfaces support independent video output

4 HDDs for continuous video recording

Plug & Play with 16 Power-over-Ethernet (PoE) interfaces

specification

Video and Audio
IP Video Input16-ch
Incoming Bandwidth160 Mbps
Outgoing Bandwidth80 Mbps
HDMI Output1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz
VGA Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
Video Output ModeHDMI/VGA simultaneous output
Audio Output1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k Ω)

Decoding
Stream TypeVideo, Video & Audio
Audio CompressionG.711ulaw/G.711alaw/G.726
Decoding FormatH.265/H.265+/H.264/H.264+/MPEG4
Decoding Capability
1-ch@8 MP (30 fps)/6-ch@1080p (30 fps)

*: The length or width of camera resolution (each track) cannot exceed 4096 pixels.
Synchronous playback16-ch
Recording Resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF

Network
Remote Connection64
Network ProtocolTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

PoE
Interface16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Power≤ 150 W
StandardIEEE 802.3 af/at

Auxiliary Interface
SATA4, SATA interface
CapacityUp to 6 TB capacity for each disk
Serial Interface1 RS-485 (half-duplex), 1 RS-232
USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 1 × USB 2.0
Alarm In/Out16/4 (16/8 optional)

General
Power Supply100 to 240 VAC, 50 to 60 Hz
Consumption≤ 15 W (without HDD and PoE off)
Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity10 % to 90 %
Dimension (W × D × H)445 × 400 × 75 mm (17.5″ × 15.7″ × 3.0″)
Weight≤ 5 kg (without HDD, 11 lb.)

Certification
FCCPart 15 Subpart B, ANSI C63.4-2014
CEEN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
