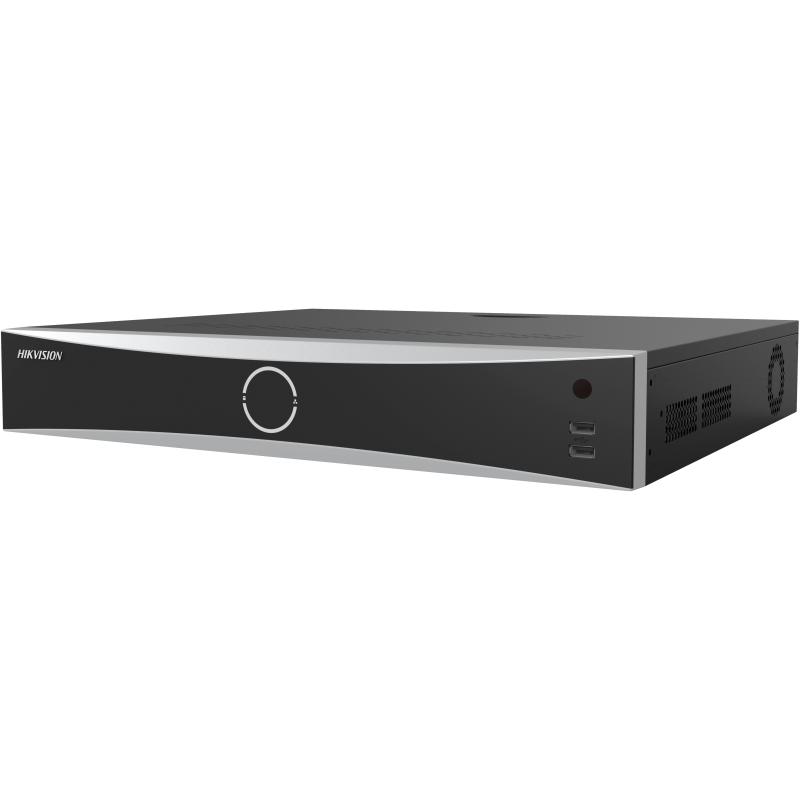

DS-7732NXI-I4/16P/S

32-ch 1U 16 POE AcuSense 4K NVR

H.265+/H.265/H.264+/H.264 video formats

Intelligent analytics based on deep learning algorithm

Up to 4-ch perimeter protection

Up to 1-ch facial recognition for video stream, or up to 4-ch facial recognition for face picture

Up to 32-ch IP camera inputs

Plug & Play with 16 Power-over-Ethernet (PoE) interfaces

Up to 16-ch 1080p decoding capability

Up to 256 Mbps incoming bandwidth

specification

Intelligent Analytics
AI by DeviceFacial recognition, perimeter protection, motion detection 2.0
AI by CameraFacial recognition, perimeter protection, video structuralization, throwing objects from building, motion detection 2.0, ANPR, people counting, VCA
Engine1, engine mode is adjustable

Facial Recognition
Facial Detection and AnalyticsFace picture comparison, human face capture, face picture search
Face AttributesWearing glasses, wearing a mask, facial expression, body temperature
Face Picture LibraryUp to 16 face picture libraries, with up to 10,000 face pictures in total (each picture ≤ 512 KB, total capacity ≤ 150 MB)
Face Picture Comparison (Captured from Camera)4-ch
Facial Detection and Analytics Performance1-ch human face capture (HD network camera, up to 4 MP, H.264/H.265)

Motion Detection 2.0
By Device32-ch
By CameraAll channels

Perimeter Protection
By Device
4-ch, 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm;

Up to 12 rules in total
By CameraAll channels

ANPR
By CameraAll channels
Vehicle AttributesPlate number, license plate color, license plate type
Plate AttributesVehicle brand, vehicle color, vehicle type

Video and Audio
IP Video Input
32-ch

Up to 12 MP resolution
Incoming Bandwidth256 Mbps
Outgoing Bandwidth256 Mbps
HDMI 1 Output4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI1/VGA simultaneous output
HDMI 2 Output1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI2/VGA independent output
VGA Output
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,

HDMI1/VGA simultaneous output
Video Output ModeHDMI1/VGA simultaneous output, HDMI2/VGA independent output
CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Audio Output1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ)

Decoding
Decoding FormatH.265+/H.265/H.264+/H.264/MPEG4
Recording Resolution12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback16-ch
Decoding Capability16-ch @ 1080p (30 fps)
Dual-Stream RecordingSupport
Stream TypeVideo, Video & Audio
Live View Window Division1/2/4/6/8/9/16/25/32/36
Aux Port Window Division1/2/4/6/8/9/16/25/32/36
Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/MP2L2

Network
Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Remote Connection128
Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
APIONVIF (profile S/G); SDK; ISAPI
Compatible BrowserIE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version

PoE
Interface16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Power≤ 200 W
StandardIEEE 802.3 af/at

Auxiliary Interface
Serial InterfaceRS-485 (half-duplex), RS-232, Keyboard
SATA4 SATA interfaces supporting hot-plug
eSATA1 eSATA interface
CapacityUp to 10 TB capacity for each disk
Alarm In/Out16/4
USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
Ctrl 12V
Controllable 12 VDC, 0.5 A power output for external alarm device; The power will be turned on when the alarm output is triggered.

*: The Ctrl 12V power is controlled by alarm output 9.
DC 12V12 VDC, 1 A power output

General
GUI LanguageEnglish, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian, Hebrew
Power Supply
100 to 240 VAC, 50 to 60 Hz

Total power: ≤ 360 W
Consumption≤ 30 W (without HDD)
Working Temperature-10 ℃ to 55 ℃ (14 ℉ to 131 ℉)
Working Humidity10% to 90%
Chassis19-inch rack-mounted 1.5U chassis
Dimension (W × D × H)445 × 400 ×75 mm ( 17.5″× 15.7″ × 3.0″)
Weight≤ 7 kg (15.4 lb) (without HDD)

Certification
Obtained CertificationCE, CB, REACH, WEEE, UKCA, LOA
CEEN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
