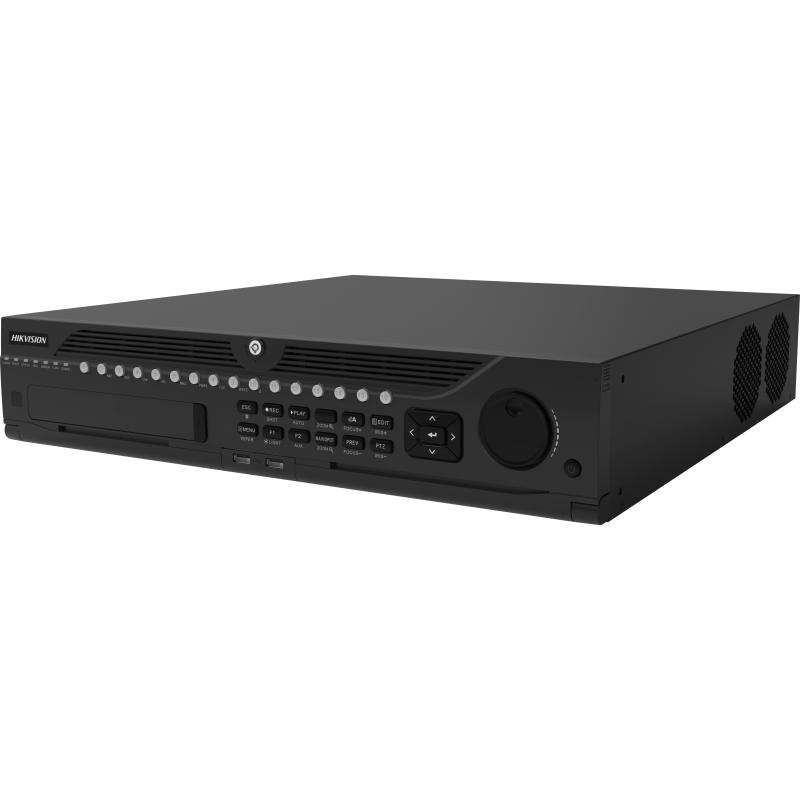

DS-9016HTHI-K8

16-ch 4K 2U H.265 DVR

16 channels and 8 HDDs 2U DVR

Efficient H.265 pro+ compression technology

Encoding ability up to 8 MP @ 12 fps

5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)

Up to 34 network cameras can be connected

Supports POS triggered recording and POS information overlay

Supports RAID mode for even more reliable data storage, effectively avoiding data loss risks

16-channel video streams can be easily looped out to the video wall

specification

Recording
Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution8 MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
Frame Rate
Main stream:

8 MP@12 fps/5 MP@20 fps; 3 MP@18fps;

4 MP/1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

Sub-stream:

WD1/4CIF/CIF@25fps (P)/30fps (N)
Video Bitrate32 Kbps to 6 Mbps
Dual-streamSupport
Stream TypeVideo, Video & Audio
Audio CompressionG.711u
Audio Bitrate64 Kbps

Video and Audio
IP Video Input
18-ch (up to 34-ch)

Up to 12 MP resolution

Support H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input4-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDMI Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
CVBS InputPAL/NTSC
CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Synchronous Playback4-ch
HDTVI Input4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25,*: The 3 MP signal input is only available for channel 1 of DS-7204HQHI-K1, for channel 1/2 of DS-7208HQHI-K1, and for channel 1/2/3/4 of DS-7216HQHI-K1.,
AHD Input4 MP, 1080p25, 1080p30, 720p25, 720p30
HDCVI Input1080p25, 1080p30, 720p25, 720p30
Audio Output1-ch, RCA (Linear, 1 KΩ)
Audio Input1-ch, RCA (2.0 Vp-p, 1 KΩ)
Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)

Network
Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Remote Connection32
Network Interface1, RJ45 10M/100M self-adaptive Ethernet interface

Auxiliary Interface
SATA1 SATA interface
CapacityUp to 10 TB capacity for each disk
Serial InterfaceRS-485 (half-duplex)
USB Interface2 × USB 2.0
Alarm In/OutN/A

General
Power Supply12 VDC
Consumption≤ 6 W
Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
Working Humidity10% to 90%
Chassis1U(315mm)
Dimension (W × D × H)315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
Weight≤ 1.16 kg (2.6 lb)
