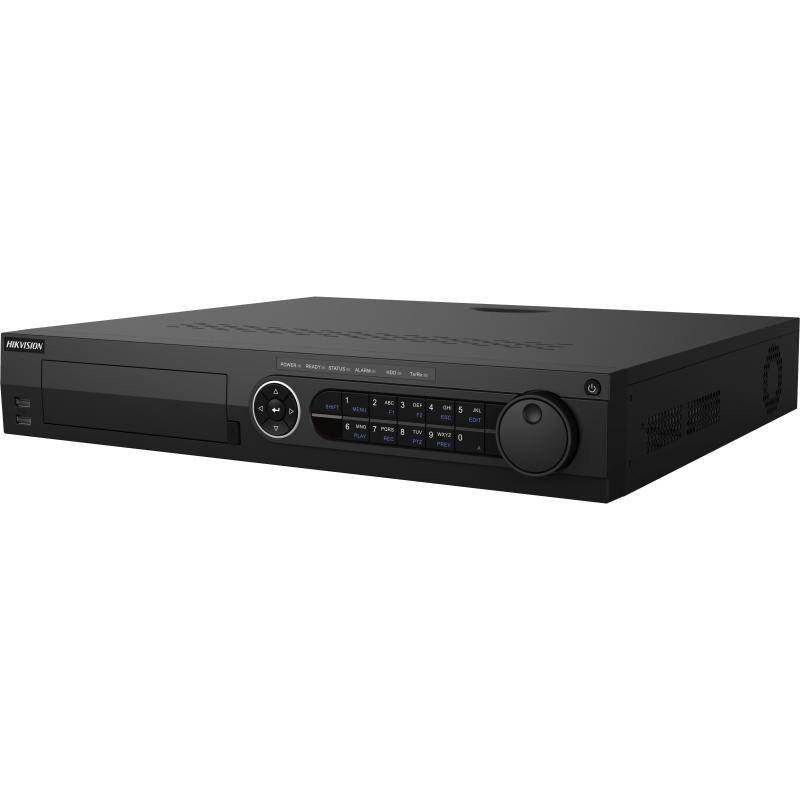

iDS-7332HUHI-M4/S

32-ch 5MP 1.5U H.265 DVR

Up to 32-ch analog camera inputs and 4 SATA interfaces

H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression

Up to 8 MP@8 fps/5 MP@12 fps encoding capability

HDTVI/AHD/CVI/CVBS/IP video inputs

Up to 64-ch network camera inputs

POS triggered recording and POS information overlay

RAID 0, 1, 5, 6, 10 for even more reliable data storage, effectively avoids data loss risks

specification

Recording
Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution8 MP/3K/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
Frame Rate
Main stream:

8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/3 MP@18 fps

1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

Sub-stream:

WD1/4CIF/CIF@25 fps (P)/30 fps (N)
Video Bitrate32 Kbps to 10 Mbps
Dual-streamSupport
Stream TypeVideo, Video & Audio
Audio CompressionG.711u
Audio Bitrate64 Kbps

Video and Audio
IP Video Input
32-ch (up to 64-ch);

Up to 12 MP resolution;

Support H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input
32-ch;

BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
Incoming Bandwidth320 Mbps
Outgoing Bandwidth256Mbps
HDTVI Input8 MP, 3K, 5 MP, 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60
AHD Input5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30
HDCVI Input4 MP, 1080p25, 1080p30, 720p25, 720p30
CVBS InputPAL/NTSC
CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
HDMI 1 Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HDMI 2 Output1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Video Output ModeHDMI1/VGA simultaneous output, HDMI2/VGA independent output
Audio Input4-ch, RCA (2.0 Vp-p, 1 KΩ)
Audio Output1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (independent)
Synchronous Playback16-ch
VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

Network
Remote Connection128
Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, SNMP
Network Interface2, RJ45 10M/100M/1000M self-adaptive Ethernet interface

Auxiliary Interface
SATA4 SATA interfaces
eSATASupport
CapacityUp to 12 TB capacity for each disk
Serial InterfaceRS-232, RS-485 (full-duplex), Keyboard
Alarm In/Out16/4
USB InterfaceFront panel: 2 × USB 2.0, Rear panel: 1 × USB 3.0

General
Power Supply100 to 240 VAC, 50 to 60 Hz
Consumption≤ 55 W (without HDD)
Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
Working Humidity10% to 90%
Dimension (W × D × H)445 × 400 × 71 mm (17.5 × 15.7 × 2.8 inch)
Weight≤ 7 kg (without HDD, 15.4 lb.)
