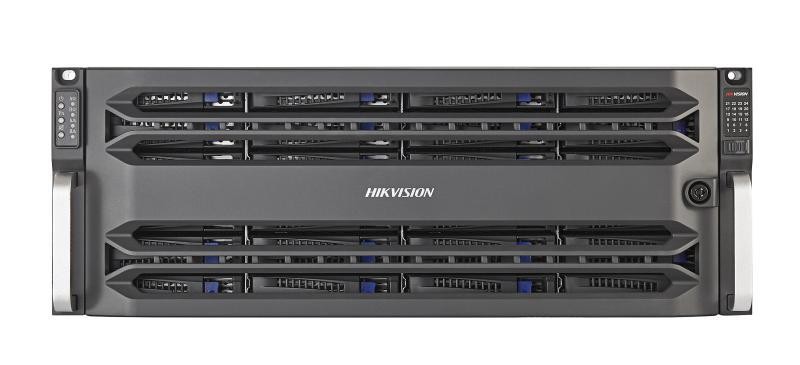

DS-A71024R

24-slot economic Storage

  • Economical and stable hardware platform
  • HDD detection and repair/RAID optimization
  • Surveillance-specialized direct storage (Direct Streaming mode+IP SAN mode)
  • Advanced data protection (synchronous backup of key information in system disks)
  • Energy efficient and user-friendly UI
  • specification

    • Network
    • ProtocoliSCSI, RTSP, ONVIF, PSIA
    • External interface
    • USB4
    • Data network interface2, 1000M Ethernet interface(4 × GbE or 2 × 10GbE is extendable)
    • MiniSAS interfaceSupported
    • COM1
    • Management network interface1, 1000M Ethernet interface
    • Storage
    • HDD slot24
    • Interface/capacitySATA/1 TB, 2 TB, 3 TB, 4 TB, 6 TB, 8 TB, 10 TB, 12 TB, 14 TB, 16 TB
    • Hot-swappingSupported
    • HDD supportSingle, RAID(Enterprise Hard Disk)
    • RAIDRAID 0, 1, 3, 5, 6, 10, 50,JBOD, Hot-Spare
    • Performance
    • Direct Streaming Mode: video (2 Mbps) + picture320-ch recording + playback
    • IPSAN Mode180-ch recording + playback
    • Video performance320
    • Picture performance320
    • Hardware
    • StructureServer Structure
    • Processor64-bit multi-core processor
    • Cache4 GB (extendable to 64 GB)
    • Storage Management
    • Disk managementDisk inspection, alarm and repair
    • Logical volume managementiSCSI volume, video volume management
    • Recording Management
    • Recording modeTiming recording, manual recording, dual-stream recording, alarm recording
    • Video protectionLock key video, N+1 service protection, ANR, video loss detection and alarm
    • Searching modeSearch by time and event
    • Downloading modeQuick download, batch download, download by segment, download by merging
    • Device Maintenance
    • Management modeWeb-based GUI, serial port CLI, centralized management of multiple devices
    • Alarm modeSound, light, email, message, web page
    • Log downloadingDownload on web page
    • HDD
    • HDD Model

      Hikvision,HK7216AH,16T;

      Hikvision,HK7210AH,10T;

      Hikvision,HK728TAH,8T;

      Hikvision,HK726TAH,6T;

      Hikvision,HK724TAH,4T;

      Seagate,ST16000NM000J,16T;

      Seagate,ST10000NM017B,10T;

      Seagate,ST8000NM017B,8T;

      Seagate,ST6000NM019B,6T;

      Seagate,ST4000NM000B,4T;

    • General
    • Power supplyRedundant
    • Chassis4U (19-inch height)
    • Consumption(with HDDs)

      Working: ≤ 479(1633 BTU with 24 HDDs);Rated: ≤ 875 W

    • Environment temperatureWorking: +5 °C to +40 °C (41 °F to 104 °F);Storing: -40 °C to +55 °C (-104 °F to +131 °F)
    • HumidityWorking: 20% to 80%RH (non-condensing/frozen); Storing: 5% to 90%RH (non-condensing/frozen)
    • Dimensions(W × D × H)484 x 684 x 174 mm (19.1 x 26.9 x 6.9 in)
    • Weight (without HDDs)≤ 40kg
