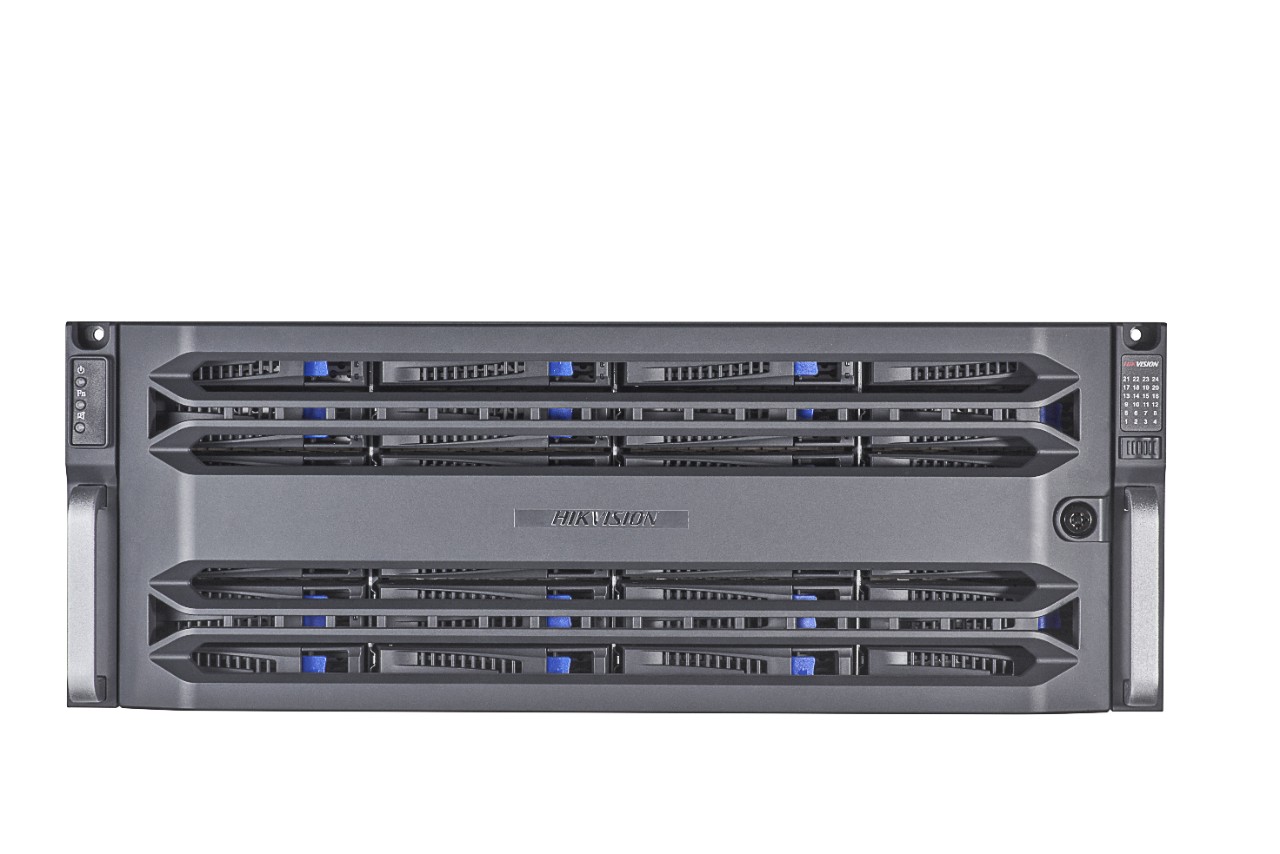

DS-A72024R

24-slot High-performance Storage

  • High-performance, scalable hardware platform
  • HDD detection and repair/RAID optimization
  • Surveillance-specialized direct storage (Direct Streaming mode+IP SAN mode)
  • Advanced data protection (synchronous backup of key information in system disks)
  • Energy efficient and user-friendly UI.
  • specification

    • Network
    • ProtocoliSCSI, RTSP, ONVIF, PSIA
    • External interface
    • USB4
    • VGA1
    • Data network interface4, 1000M Ethernet interface (4 × 1GbE or 2 × 10GbE is extendable)
    • MiniSAS interfaceSupported
    • Controller ParametersSAS Interface (Upper-level)
    • COM1, for HyperTerminal or UPS
    • HDMI1
    • Management network interface1, 100M Ethernet interface
    • Storage
    • HDD slot24
    • Interface/capacitySATA/1TB, 2TB, 3TB, 4TB, 6TB,8TB,10TB,12TB,14TB,16TB
    • Hot-swappingSupported
    • HDD supportSingle, RAID(Enterprise Hard Disk)
    • RAIDRAID 0, 1, 3, 5, 6, 10, 50, JBOD, hot spare
    • Performance
    • Direct Streaming Mode: video (2 Mbps) + picture820-ch recording + playback
    • Video performance820
    • Picture performance820
    • Hardware
    • StructureServer
    • ProcessorDual 64-bit multi-core processor
    • Cache8 GB (extendable to 128 GB)
    • Storage Management
    • Disk managementDisk inspection, alarm and repair
    • Logical volume managementiSCSI volume, video volume management
    • Recording Management
    • Recording modeTiming recording, manual recording, dual-stream recording, alarm recording
    • Video protectionLock key video, N+1 service protection, ANR, video loss detection and alarm
    • Searching modeSearch by time and event
    • Downloading modeQuick download, batch download, download by segment, download by merging
    • Device Maintenance
    • Management modeWeb-based GUI, serial port CLI, centralized management of multiple devices
    • Alarm modeSound, light, email, message, web page
    • Log downloadingDownload no web page
    • HDD
    • HDD Model

      Hikvision,HK7216AH,16T;

      Hikvision,HK7210AH,10T;

      Hikvision,HK728TAH,8T;

      Hikvision,HK726TAH,6T;

      Hikvision,HK724TAH,4T;

      Seagate,ST16000NM000J,16T;

      Seagate,ST10000NM017B,10T;

      Seagate,ST8000NM017B,8T;

      Seagate,ST6000NM019B,6T;

      Seagate,ST4000NM000B,4T;

    • General
    • Power supplyRedundancy (1 + 1)
    • Chassis19-inch 4U
    • Consumption(with HDDs)

      Operating: ≤ 410 W (1398 BTU with 24 HDDs Rated: ≤ 875 W

    • Environment temperatureOperating: 5 °C to 35 °C (41 °F to 95 °F) Storing: -20 °C to +70 °C (-4 °F to +158 °F)
    • HumidityOperating: 20% to 80% RH (non-condensing/frozen) Storing: 5% to 90% RH (non-condensing/frozen)
    • Dimensions(W × D × H)484 x 724 x 174 (19.1 x 28.5 x 6.9 in)
    • Weight (without HDDs)≤ 40 kg (88.2 lb)
